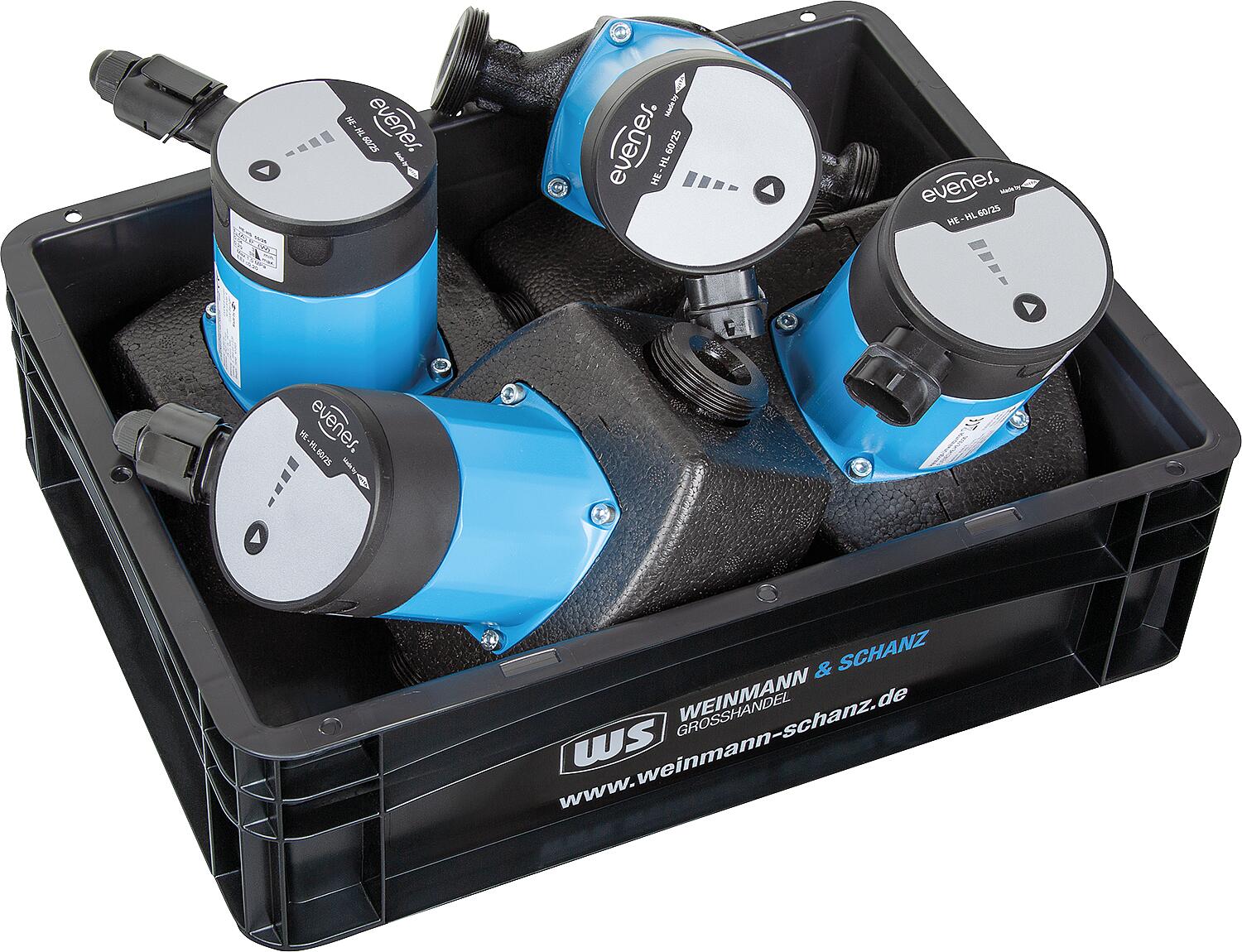

Package consisting of:
- 4x HEHL+ 6025 heating circulation pumps, DN 25 (1"), PN10, 230 V, installation length 180 mm
- For use in heating, air conditioning and industrial plants
- 4 proportional characteristic curves
- 4 constant characteristic curves
- EC Permanent Magnet Rotor
- Anti-lock braking system
- Stall-proof motor
- One-button menu navigation
- Simple electrical connection via plug connector
- Including thermal insulation shell
Technical data:
- Maximum delivery head: 6.0 m
- Maximum flow rate: 3600 l/h
- Power consumption: 342 W
- Operating voltage: 1 x 230 V, 50 Hz
- Motor protection: no external motor protection required
- Protection class: IP 42
- Ambient temperature: 0°C to +40°C
- Temperature range of medium: +5°C to +110°C
- Maximum operating pressure: 10 bar
- Pump housing material: Grey cast iron, KTL coated
- Approved fluids: Heating water according to VDI 2035, water/glycol mixtures 1:1
- Free: 1x WSTransportbox
