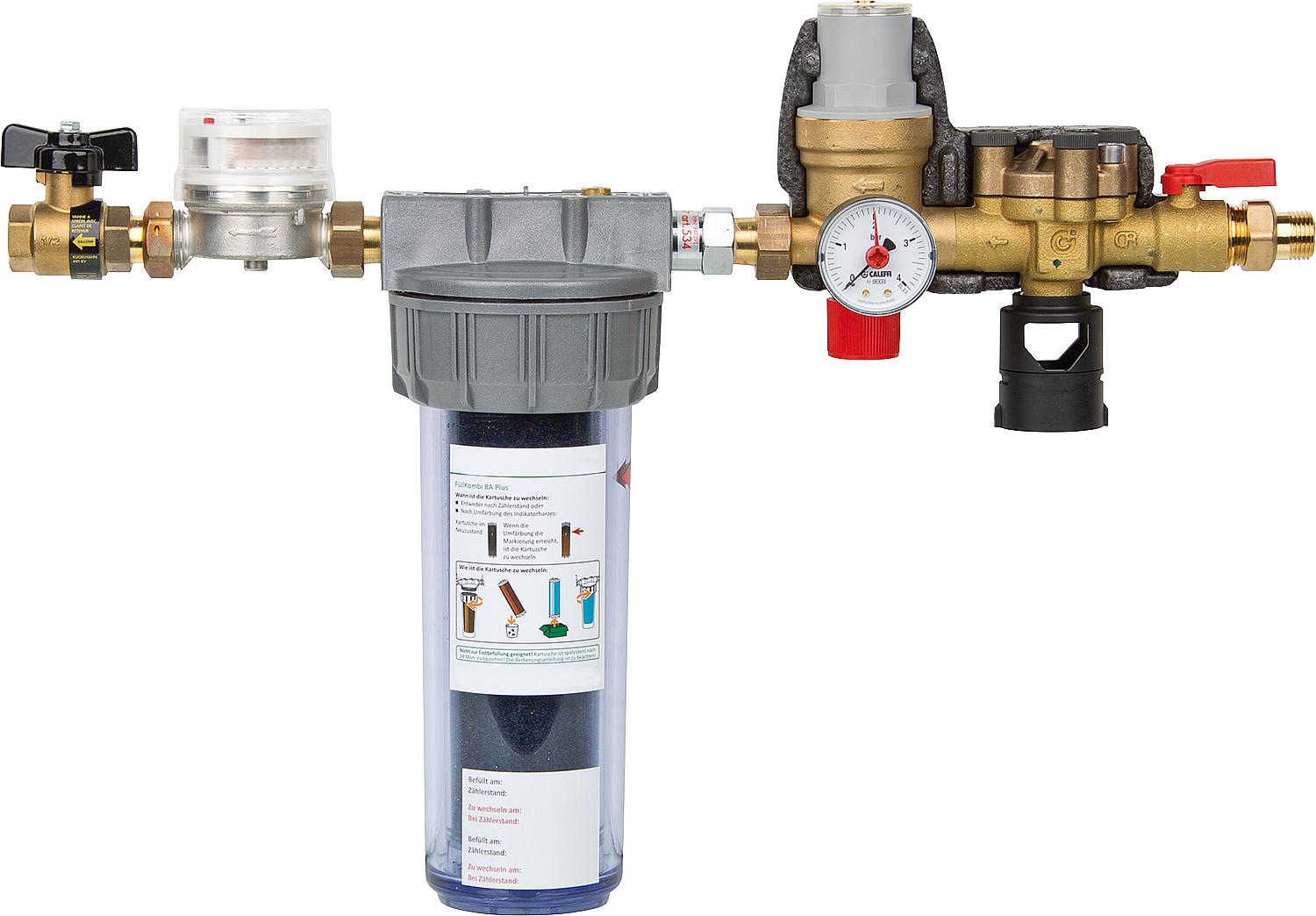

Heating water filling combination NaFüKom Plus DN 15 (1/2")

Heating water filling combination NaFüKom Plus DN 15 (1/2")

Bewertungen
CHF 423.90
CHF 423.90
% Sold out
Taxes included.

Lieferung Schweiz

Voraussichtliche Lieferung nach Versandart:

  • Economy (kostengünstig) wird berechnet
  • Express (Express-Lieferung) wird berechnet
  • Priority (schneller Standard) wird berechnet
Manufacturer:
Order No.:
Availability:
CALEFFI
90 002 41
sofort lieferbar

Security policy

Delivery terms

Return policy
View full details
Beschreibung Spezifikation Bewertungen
  • For complete demineralization of heating water according to VDI 2035 and ÖNORM H 51951
  • For stationary installation
  • With BA system separator, it therefore meets the requirements of DIN EN 1717.
  • Consumption indicator via color change of the desalination cartridge
  • Easy disposal of the desalination cartridge via household waste

Scope of delivery:

  • Filling valve
  • desalination cartridge
  • water meter
  • Shut-off valves

Technical data:

  • Adjustment range of the filling valve: 0.24 bar
  • Maximum operating pressure: 8 bar
  • Maximum operating temperature (inlet): 30°C
  • Maximum filling capacity: 120 l/h Contents
  • Mixed bed resin: 0.75 l
  • Capacity at 420 μS/cm to < 100: 112.5 liters
Brand CALEFFI
Manufacturer part number 574022 EVN
Unit price CHF/piece
EAN 8016615563177
