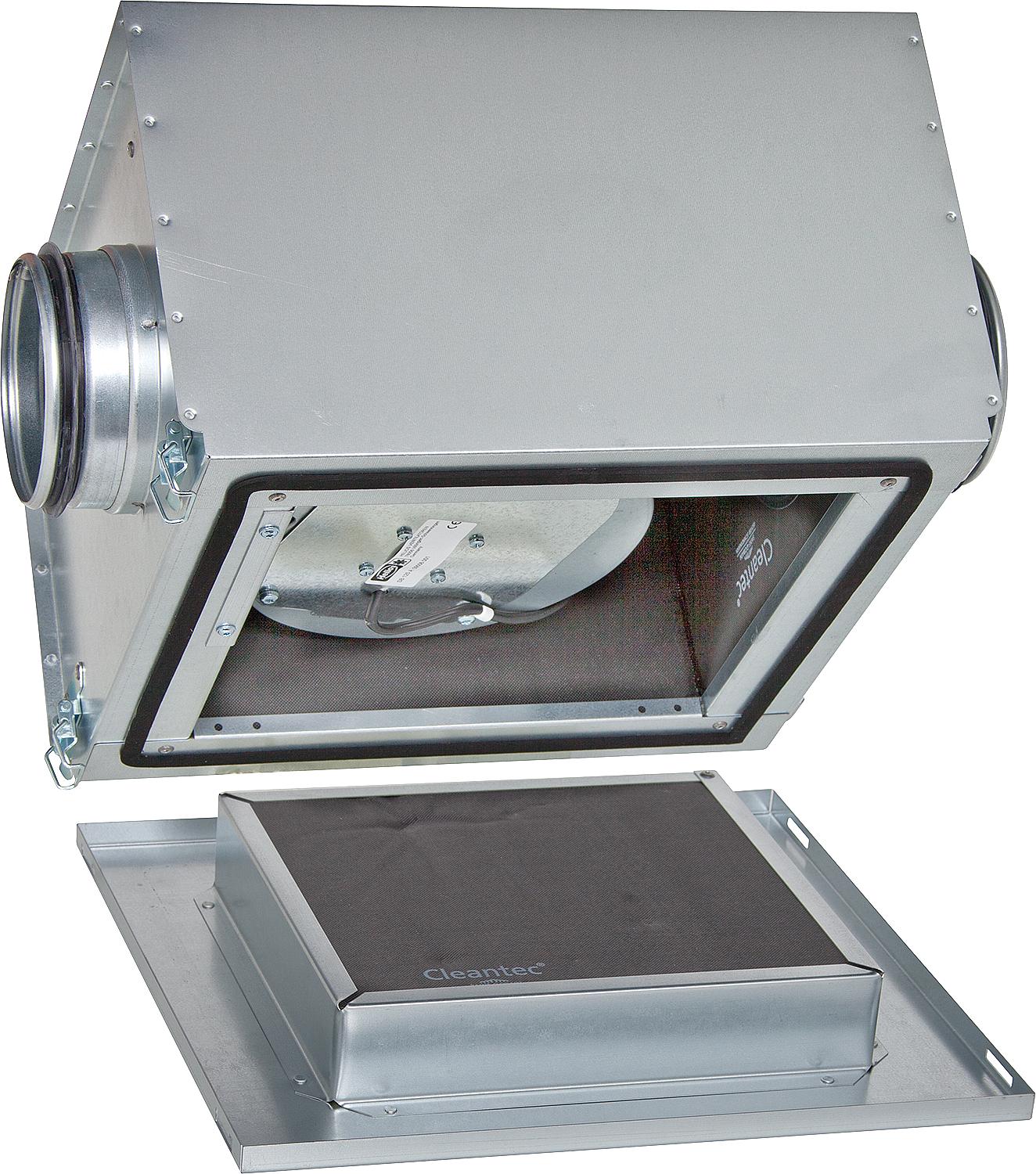

Helios InlineVent SilentBox SB 250 C DN 250

Bewertungen

| Eine Rezension schreiben

CHF 714.95

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

Helios

sofort lieferbar

Security policy

Delivery terms

Return policy

View full details

Beschreibung Spezifikation Bewertungen

• Conveying volume from 230 to 1190 m³/h
• Energy-efficient radial fan with forward-curved drum impeller
• Virtually silent with high volume and pressure performance
• Sound-absorbing perforated sheet metal inner lining with 50 mm thick mineral fiberboard
• Intake and exhaust nozzles with lip seals
• Removable inspection cover/swing-out fan
• Voltage: 230V AC/1PH/50Hz
• Protection class: IP 44
• Heat class: F
• Speed controllable via voltage reduction
• Maximum conveying temperature: +70°C
• Housing: Galvanized sheet steel
• Motor: maintenance-free, ball-bearing mounted
• Installation position: any
• Overload protection

Maximum power consumption [W]	61
Flow rate [m³/h]	230
Brand	Helios
Connection [DN]	125
Speed [rpm]	1130
Manufacturer part number	9506
Unit price	CHF/piece
Weight [kg]	12
Current consumption [A]	0.27
Type	SB 125 A
EAN	4010184095064
