• Conveyor volume up to 110 m³/h
• Radial fan with forward-curved impellers
• Installation height only 98 mm, ideal for confined spaces
• Suction and exhaust ports in DN 80

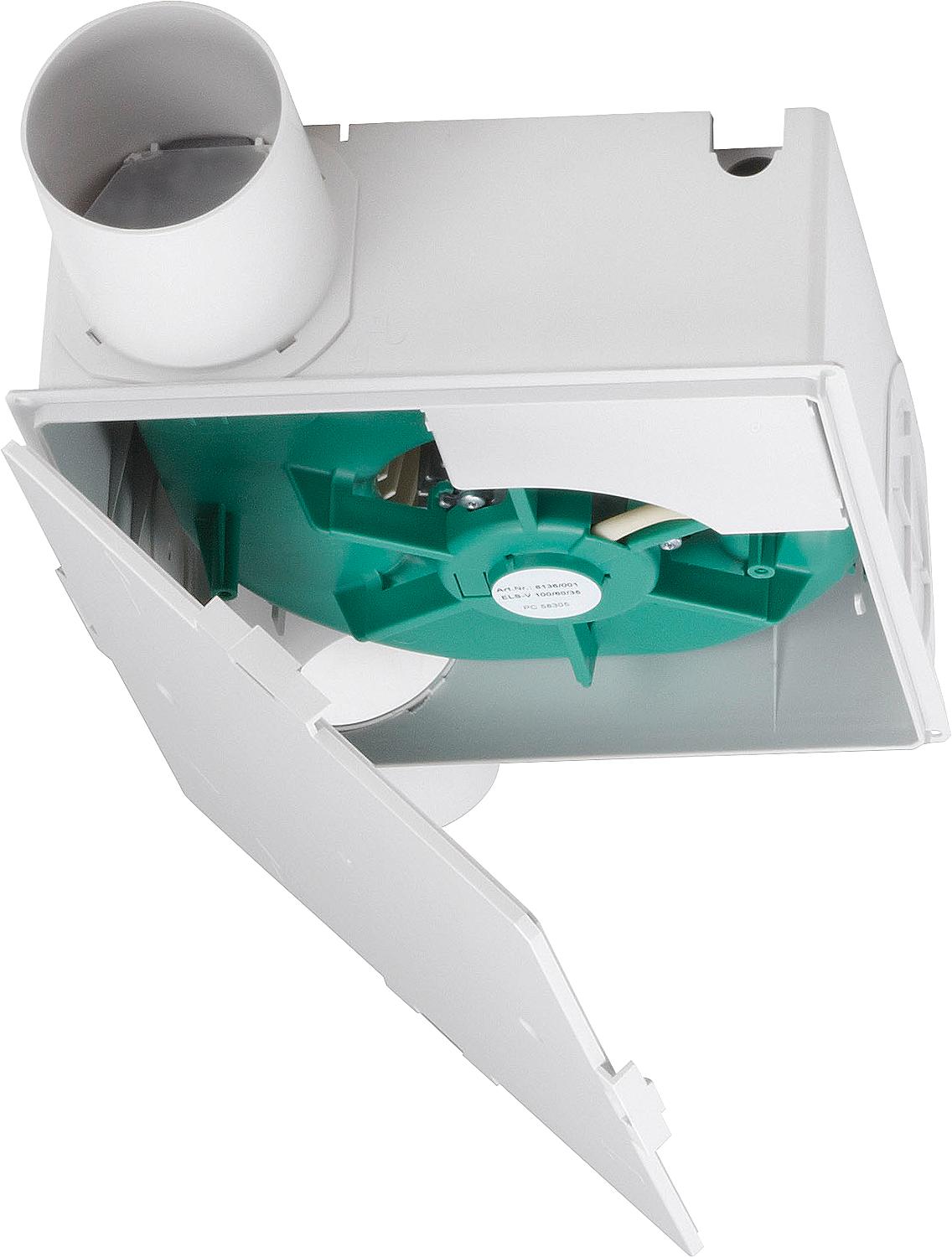

• Removable inspection cover/swing-out fan
• Side-mounted terminal box for electrical connection
• 2 additional connection options for ELS-ZAS suction nozzles (on request)
• Delivery includes mounting brackets and suction and pressure side connection nozzles
• Flow rate: 35/65/110 m³/h
• Speed: 650/1200/2710 rpm
• Power consumption: 10/19/34 W
• Voltage: 230V AC 50Hz
• Maximum current draw: 0.16 A
• Protection class: IP 54
• Maximum conveying temperature: +40°C
• Housing: Plastic
• Maintenance-free motor with ball bearings
• Installation position: any
• Overload protection
| Brand | Helios |
|---|---|
| Power consumption [W] | 34/19/10 |
| Manufacturer part number | 2660 |
| Unit price | CHF/piece |
| Flow rate [m³/h] | 110/65/35 |
| Type | SVV 80 |
| Speed (min-1) | 2710/1200/650 |
| Connection diameter [mm] | 80 |
| EAN | 4010184026600 |
