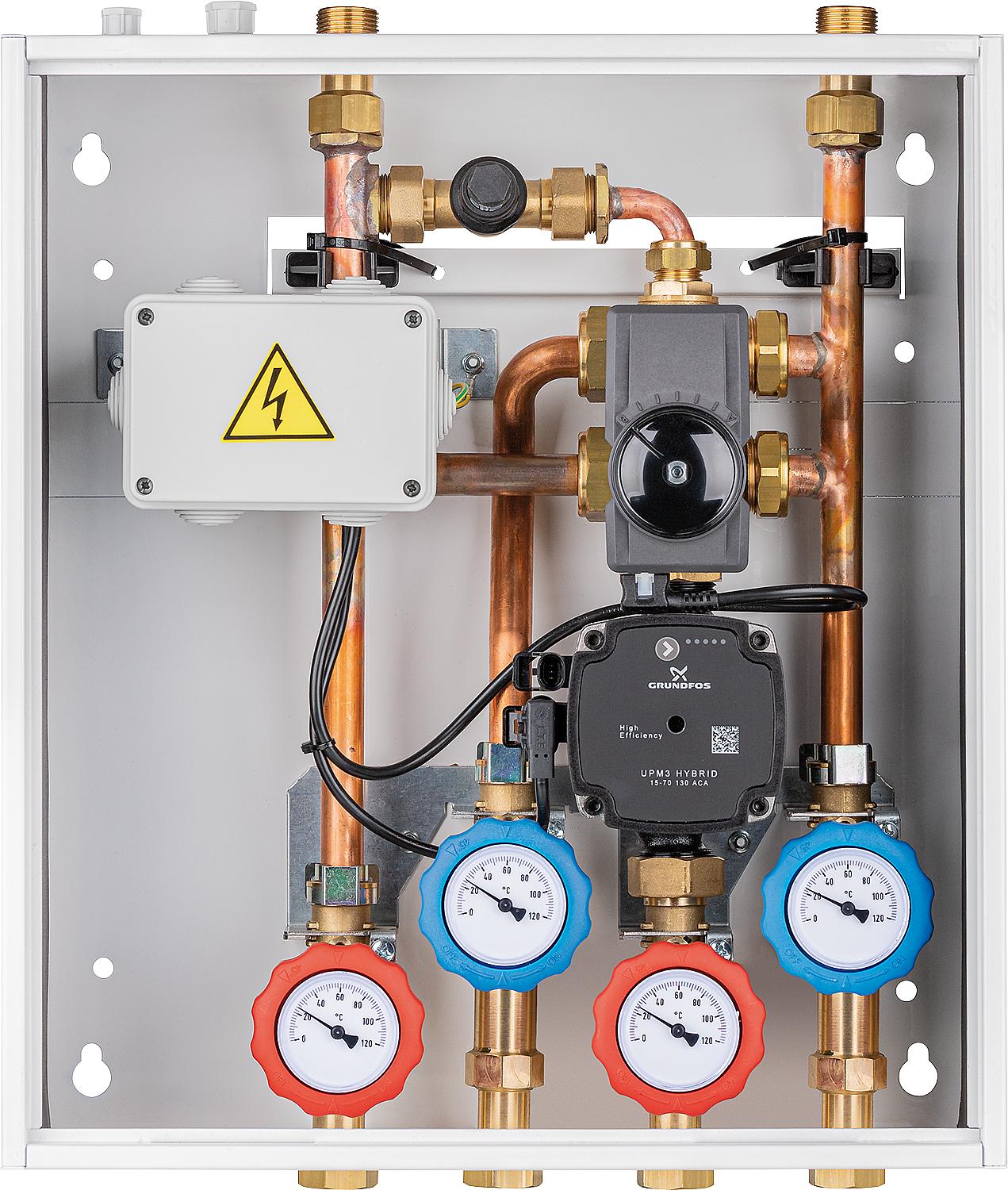

Hydraulic group evenes Novacond DM, DN20(3/4")

Name: Hydraulic group evenes Novacond DM, DN20(3/4")
Brand: evenes
SKU: 90 039 96
Price: 694.35 CHF
Availability: InStock

Bewertungen

| Eine Rezension schreiben

CHF 694.35

% Sold out

Taxes included.

Quantity

Lieferung Schweiz

Voraussichtliche Lieferung nach Versandart:

Economy (kostengünstig) wird berechnet
Express (Express-Lieferung) wird berechnet
Priority (schneller Standard) wird berechnet

Manufacturer:

Order No.:

Availability:

evenes

90 039 96

sofort lieferbar

Security policy

Delivery terms

Return policy

View full details

Beschreibung Spezifikation Bewertungen

The NOVACOND DM hydraulic unit ensures efficient use of the required system temperatures. Return water from the direct radiator heating circuit or domestic hot water preparation is mixed with the flow of the combined underfloor heating circuit. This cools the overall return flow to the condensing boiler sufficiently to guarantee condensation (condensing effect) in the heat exchanger.

Advantages:

Low energy consumption through the use of the calorific value effect
Long service life of the exhaust gas heat exchanger due to permanent condensation (self-cleaning effect)
Demand-based use through different system temperatures
Reduction of investment costs through:
Elimination of an additional circulation pump for the direct radiator heating circuit
Omission of a hydraulic separator
Short assembly times, as it is completely pre-assembled
Compact design
Flexible installation, directly below or next to the condensing boiler

Technical specifications:

Operating voltage:

Residual head of mixed heating circuit:

Circulation pump:	Grundfos UPM Hybrid 157, DN 25 (1")
	230 V / 50 Hz
	Maximum power:	52W
Mixer motor:	230 V / 50 Hz
	Performance:	3.9VA
	Protection class:	IP 54
	Operating mode:	3 point
	kvsValue:	3.6
Hydraulics:	Maximum flow rate of direct heating circuit:	1000 l / h
	Maximum flow rate of mixed heating circuit:	1500 l / h
	50.2 kPa
	Power output of direct heating circuit at ΔT 10 K max.:	10 kW
	Maximum output of mixed heating circuit at ΔT 5 K:	7.5 kW
	Power output of direct heating circuit at ΔT 15 K max.:	15 kW
	Maximum output of mixed heating circuit at ΔT 10 K:	15 kW
	Operating pressure max.:	3 bar
	Maximum operating temperature:	95°C
	Operating temperature min.:	5°C
	Water content:	1.5 l
Connections:	Entrance:	DN 20 (3/4") AG
	Exit:	DN 20 (3/4") IT
	Axis dimension:	70 mm
Case:	Surface:	white painted
	Dimensions:	450 x 500 x 160 mm
	Weight:	10 kg
