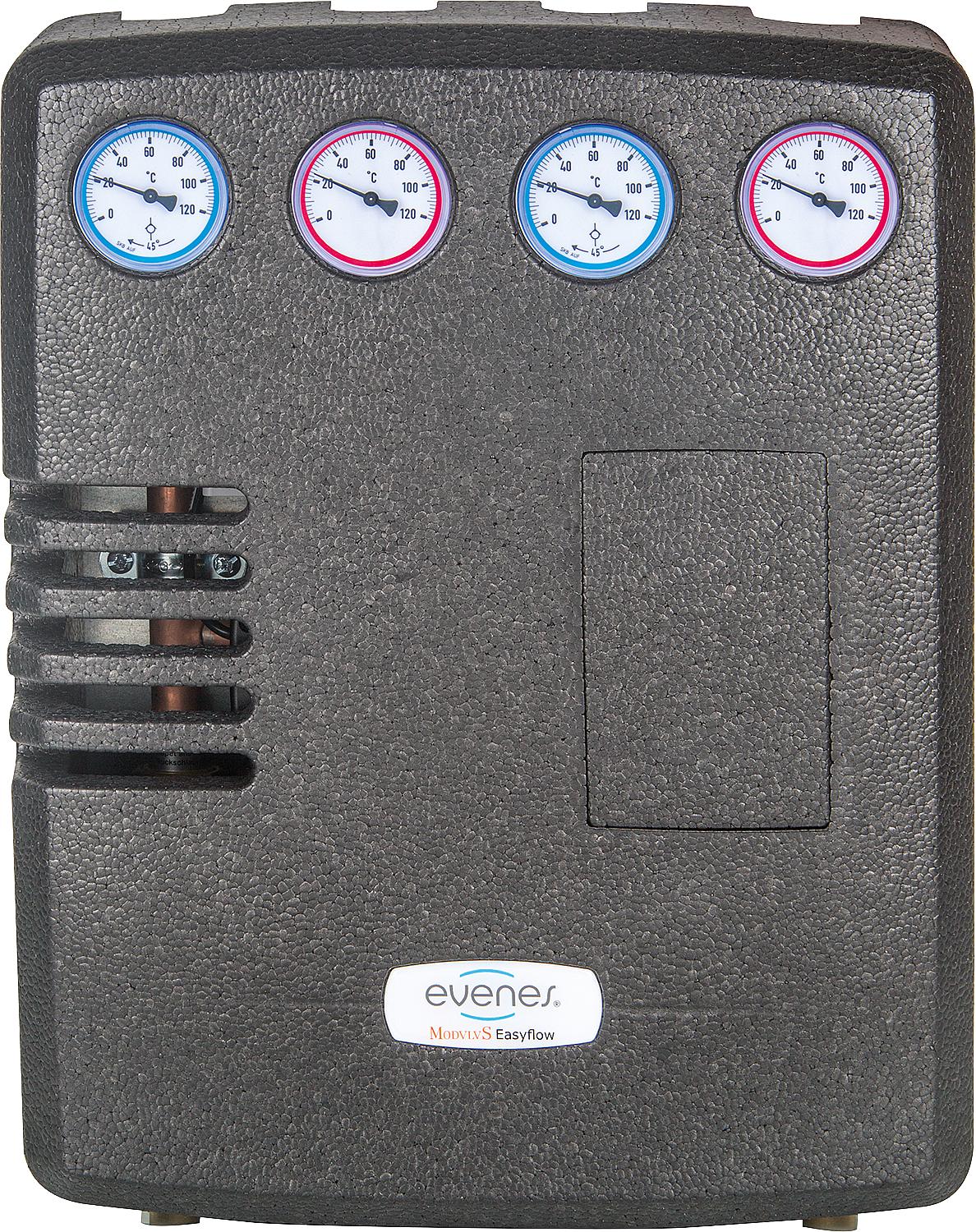

Hydraulic module Easyflow Logic direct circuit, mixing circuit hot water charging

Heating and hot water system design

• For condensing boilers with a mixed and unmixed heating circuit
• Optimal condensing boiler utilization and energy savings, as the high return temperature of the radiators is mixed with the flow temperature of the underfloor or wall heating, thus cooling the overall return temperature sufficiently to ensure condensation always occurs in the condensing boiler.
• Easy mounting thanks to stable metal base plate
• Lower investment and operating costs, as one pump in the direct circuit is no longer needed (heating unit pump is used).
• Compact and fully pre-assembled
• Fully pre-wired (in the version with control)

Direct circuit lead:

• 1 x thermometer ball valve red 0120°C

1 x Overflow valve

Return direct circuit:

• 1 x blue thermometer ball valve 0120°C with adjustable gravity brake

Mixer circuit feeder:

• 1 x thermometer ball valve red 0120°C

1 x Wilo Para 15/6 SC circulation pump

• 1 x Bivalent Mixer

Return flow from mixing circuit:

• 1 x blue thermometer ball valve 0120°C with adjustable gravity brake

Technical data:

• Maximum operating temperature: 95 °C
• Maximum operating pressure: 6 bar
• Connections: DN25(1") internal thread
• Gravity brake: 20 mbar
• Kvs value direct circuit: 5.0
• Kvs value of mixing circuit: 4.0
• Maximum power output of direct circuit: 35 kW (Δt 20K)
• Maximum power output of mixing circuit: 12 kW (Δt 8K)
• Maximum flow rate in direct circuit: 1510 l/h (Δt 20K)
• Maximum flow rate of mixing circuit: 1300 l/h (Δt 8K)
• Axle dimension of heat generator: 125 mm
• Heating circuit center-to-center spacing: 90 mm
• Material: Brass, copper
• Insulation: EPP
• Dimensions (with insulation) HxWxD: 516x400x180 mm

• For systems with on-site control
• Includes mixer motor and diverter valve. Operating voltage: 230 V/AC
