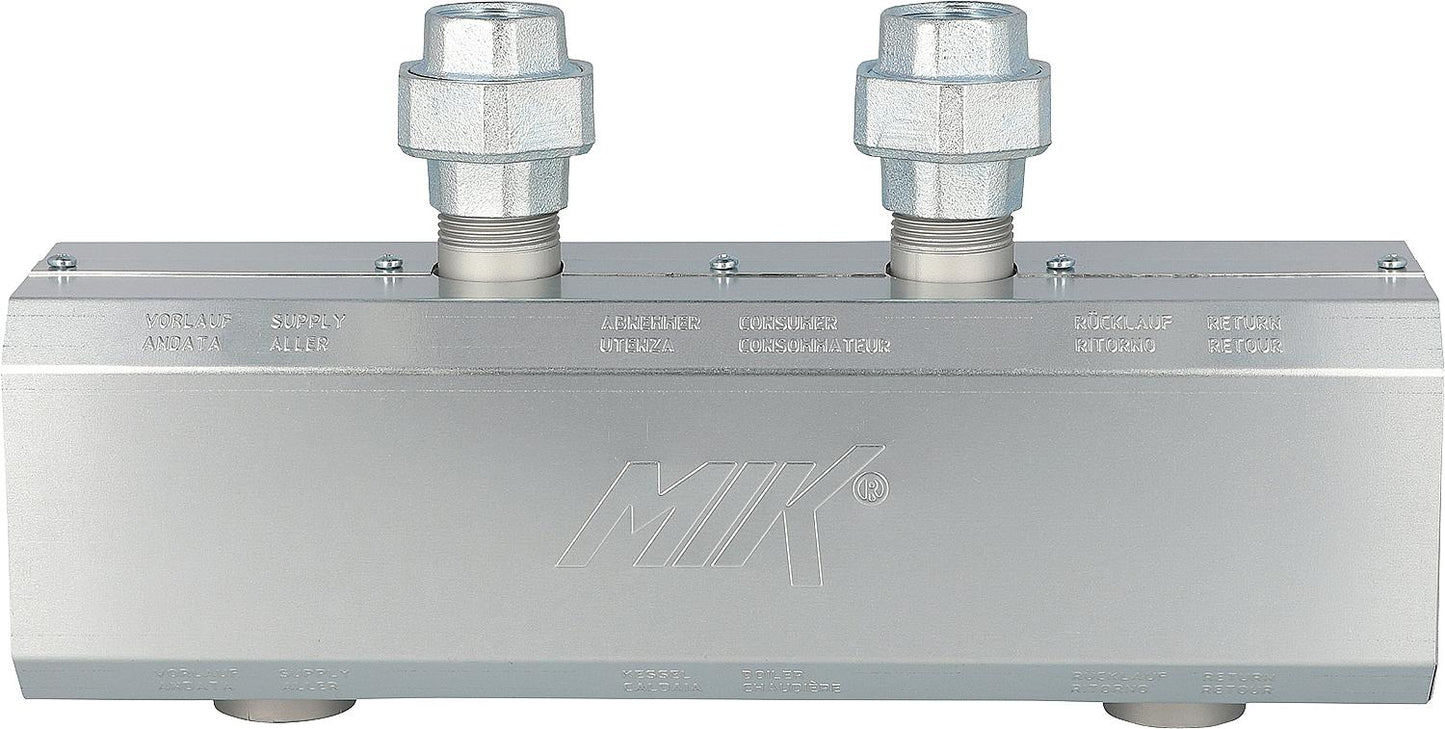

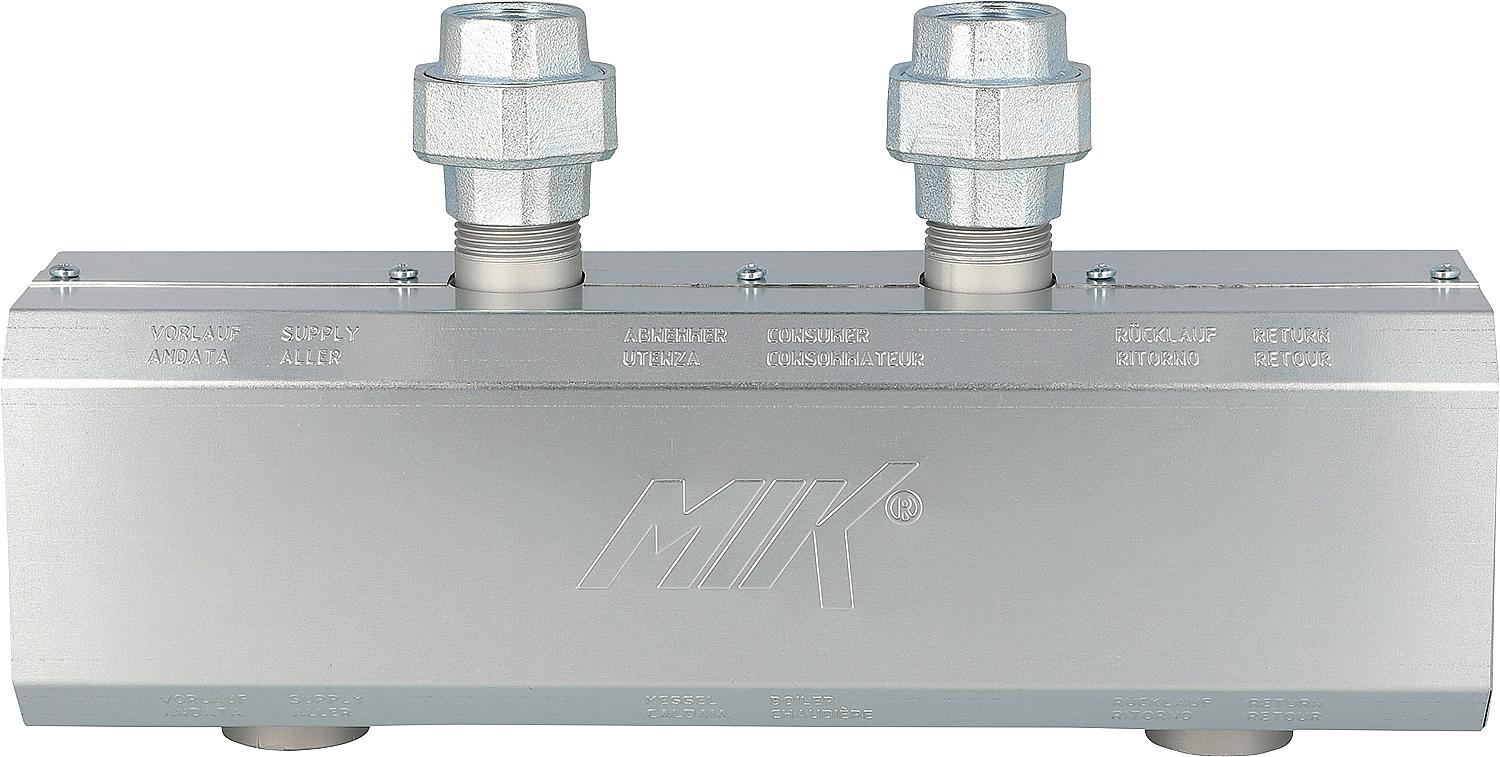

- Exchange chamber made of 60 x 60 mm PVC pipe
- Below: Boiler circuit couplings
- Above: Connection nipple for consumer circuit with screw connection (female/female)
- DN15 (1/2") female threaded socket for temperature sensor
- Insulation: 25 mm
- Exchange chamber made of square tubing
- pressure tested and galvanized
- Maximum operating pressure: 6 bar
- Maximum flow temperature: 90°C

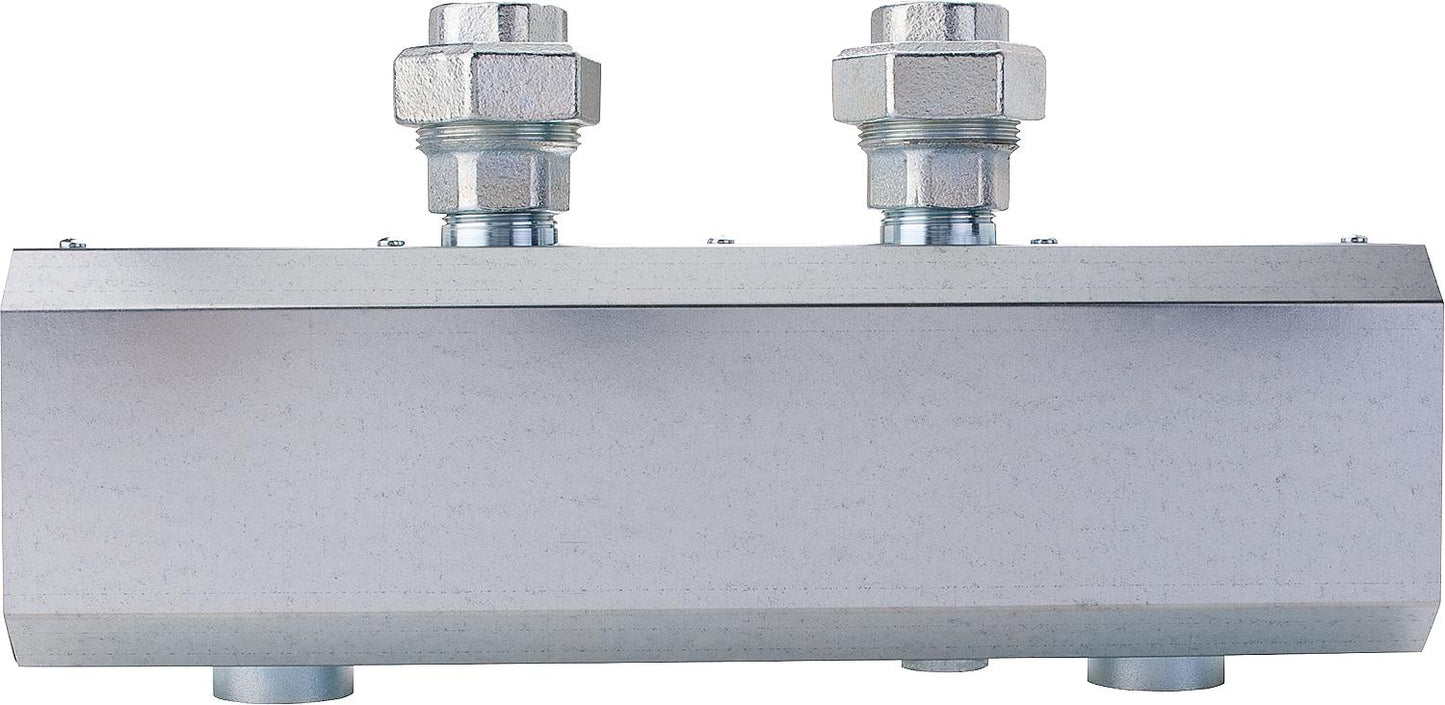

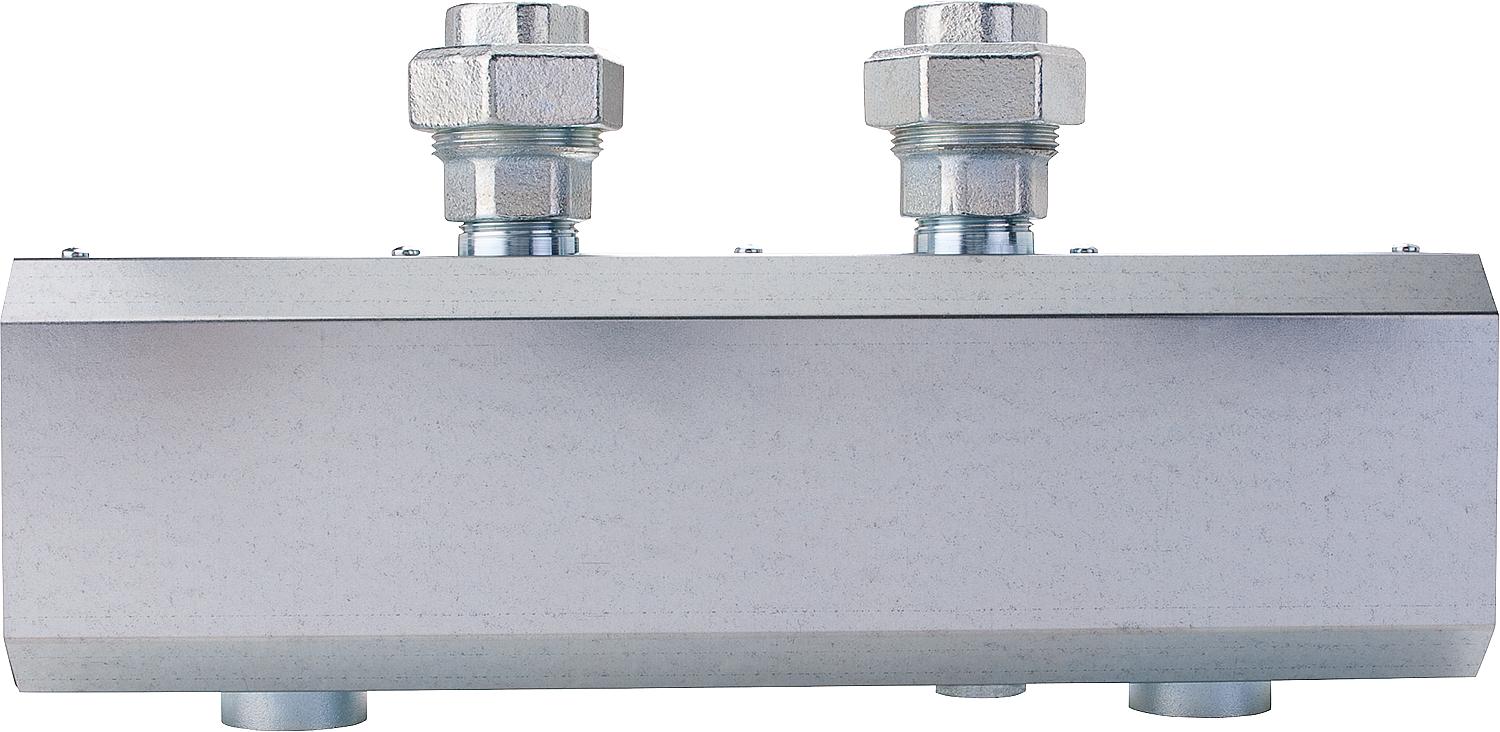

- Insulation with galvanized steel sheet casing
How a hydraulic separator works:
Hydraulic separators are used when one or more heat generator circuits (with their own pump) and one or more consumer circuits (with their own distribution pump) are operated in a system.
Under such operating conditions, the pumps can interfere with each other, potentially leading to unintended changes in flow rate and delivery head. Hydraulic separators decouple the individual circuits hydraulically, allowing them to operate independently.
| Unit price | CHF/piece |
|---|---|
| Suitable for | HV and HVI distribution boards |
| Connections | DN 25 (1") female thread (flow & return) |
| Type | HW 60/125 |
| Flow rate | up to 3 m³/h |
