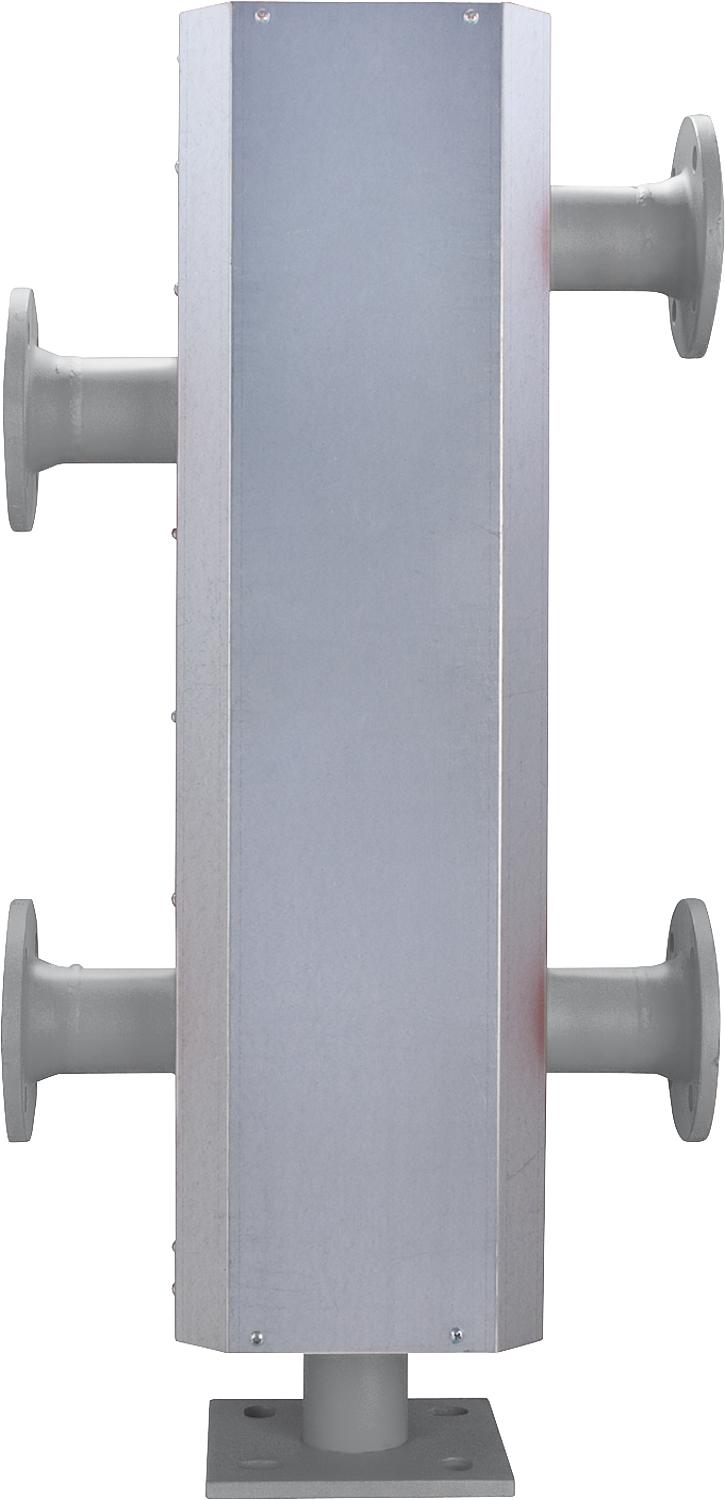

• Exchange chamber made of square tubing
• pressure tested and galvanized
• Maximum operating pressure: 6 bar
• Maximum flow temperature 90°C
• Insulation with galvanized steel sheet casing
| Unit price | CHF/piece |
|---|---|
| h3 [mm] | 115 |
| B [mm] | 400 |
| Power (∆t=20 K) | up to 205 kW |
| H [mm] | 950 |
| Connections | DN 50 |
| Type | HW 100 |
| h2 [mm] | 500 |
| Flow rate | up to 9 m³/h |
| h1 [mm] | 335 |
