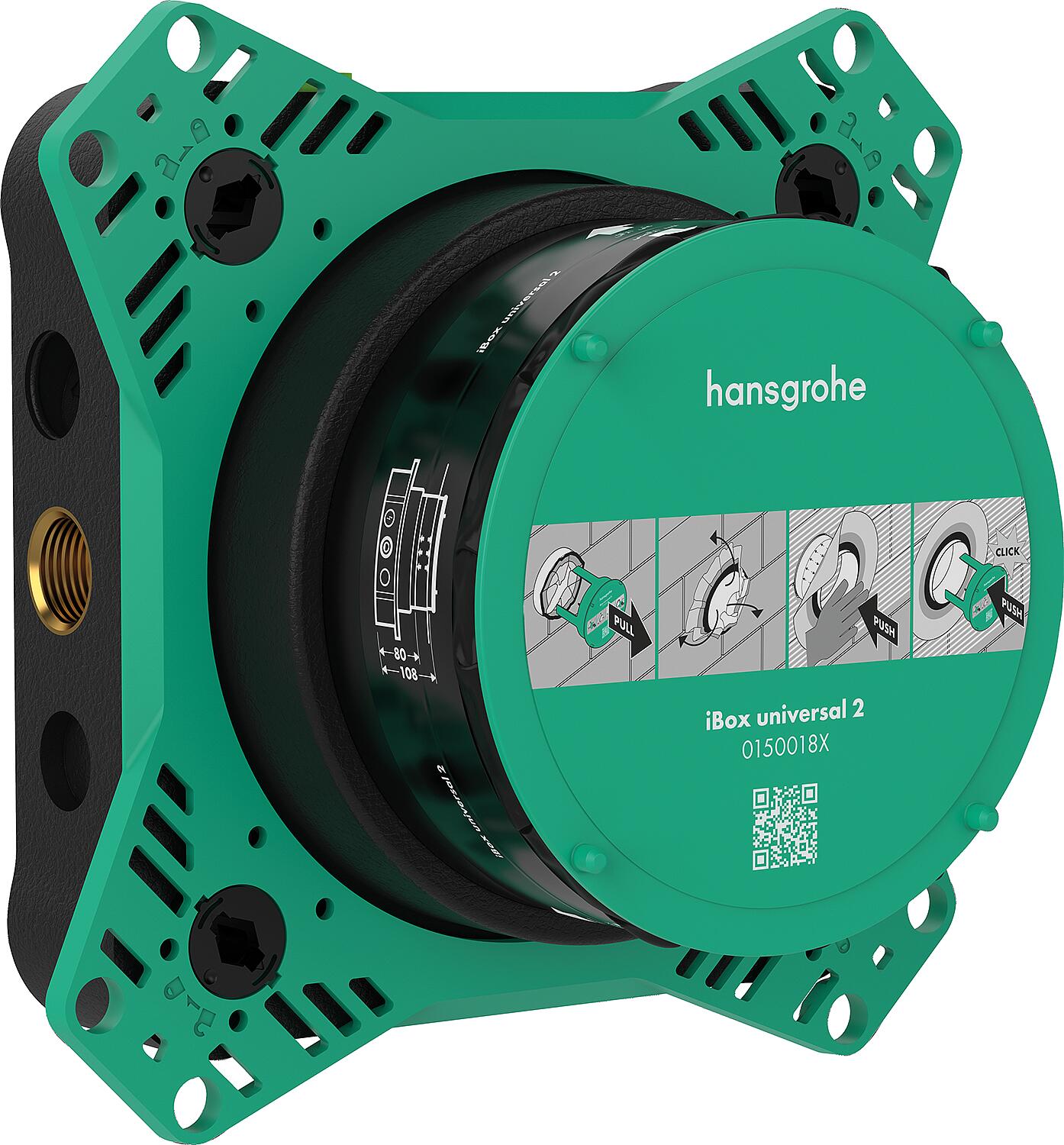

iBox Hansgrohe Universal 2

• Suitable for all new concealed shower, bath and thermostat trim sets
• Material: dezincification-resistant brass, EPP foam, heat and sound insulating
• Connection thread: ½”
• Connection size: DN15
• Rotationally symmetrical mounting
• Sound-decoupled mounting
• Flexible mounting ring for different mounting situations
• Mounting ring adjustable in 5 mm increments
• Mounting ring suitable for installation on the front and back
• No shortening necessary thanks to the sliding sleeve
• Support aid for the spirit level
• Integrated spirit level for correct horizontal and vertical alignment
• Sealing sleeve permanently attached
• Power supply: M16 flexible conduit
• Installation depth: 80 - 108 mm
• Ref. No.: 01500180
