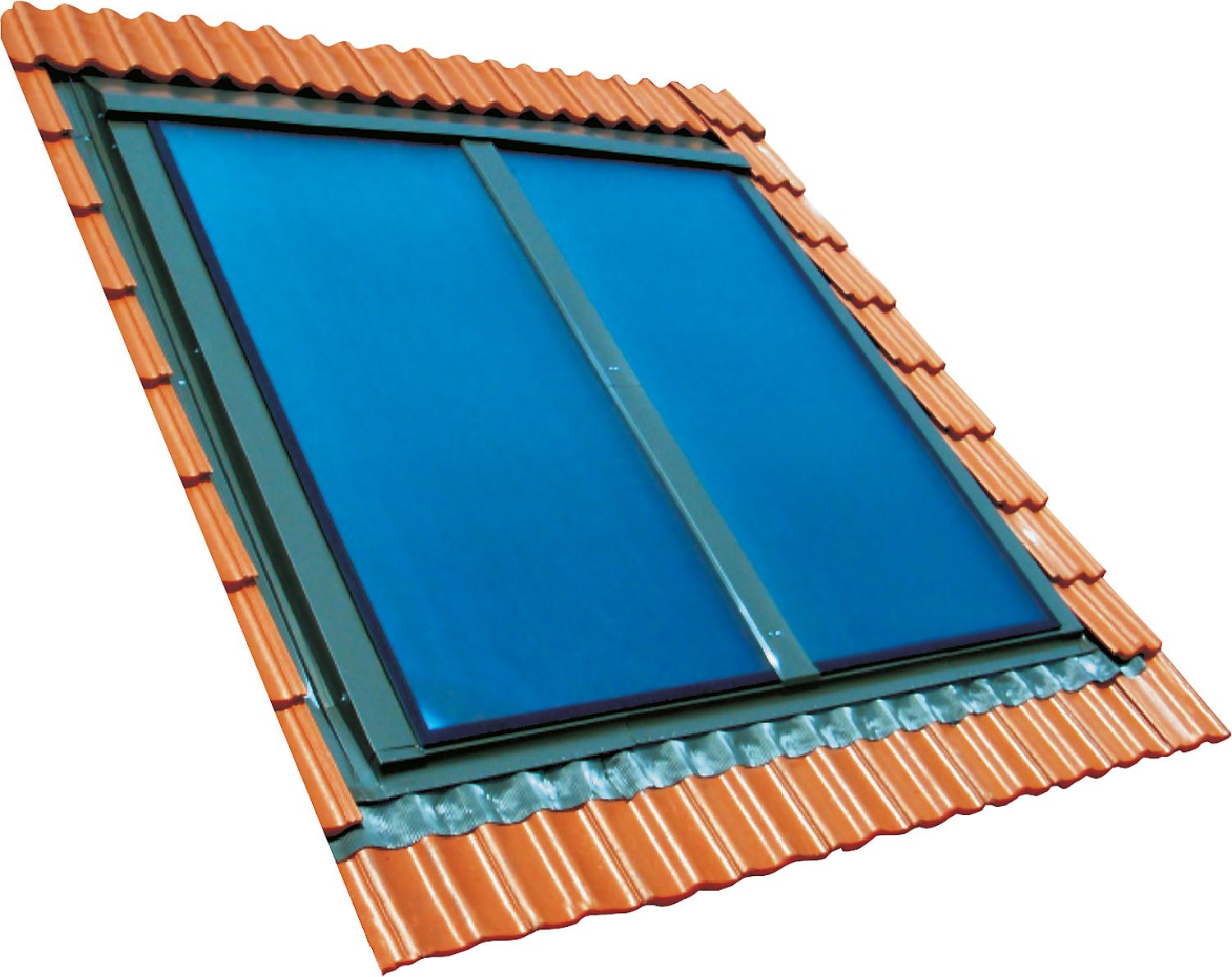

• Specifically designed for in-roof mounting
• Corrosion-resistant double harp absorber made of solid copper
• Long-lasting, highly selective coating
• Two-pipe connection technology with forced flow
• Heat and seawater resistant mineral wool insulation
• Aluminum frame, powder-coated (housing color: black, RAL9005)
• Meets the applicable requirements (eco-label RAL-UZ 73)
• Up to 7 collectors can be connected in series
Technical data:
• Absorber: Highly selective
• Absorption/emission factor: 0.95 / 0.05
• Heat transfer medium: Propylene glycol-water
• Collector pipes: ø 22 mm
• Connections: 22 mm
• Insulation back/sides: 40/20 mm (mineral wool)
• Silicone-free disc seal
• Solar glass, 4 mm prismatic
• Temperature: max. 204.4°C
• Operating pressure: max. 6 bar
• Test pressure: 20 bar
• Collector efficiency: 79%
Collector Identification:
• Manufacturer: SUNEX SA
• Type: SX series
• Reg. No.: 011-7S140 F
(Collector connection and mounting kit not included)
| Manufacturer part number | 136201120 |
|---|---|
| Design | vertical |
| Dimensions L x W x H [mm] | 1902 x 1063 x 100 |
| Unit price | CHF/piece |
| Weight [kg] | 38 |
| Gross/net area [m²] | 2.02 / 1.84 |
| Type | SX 2.0 |
