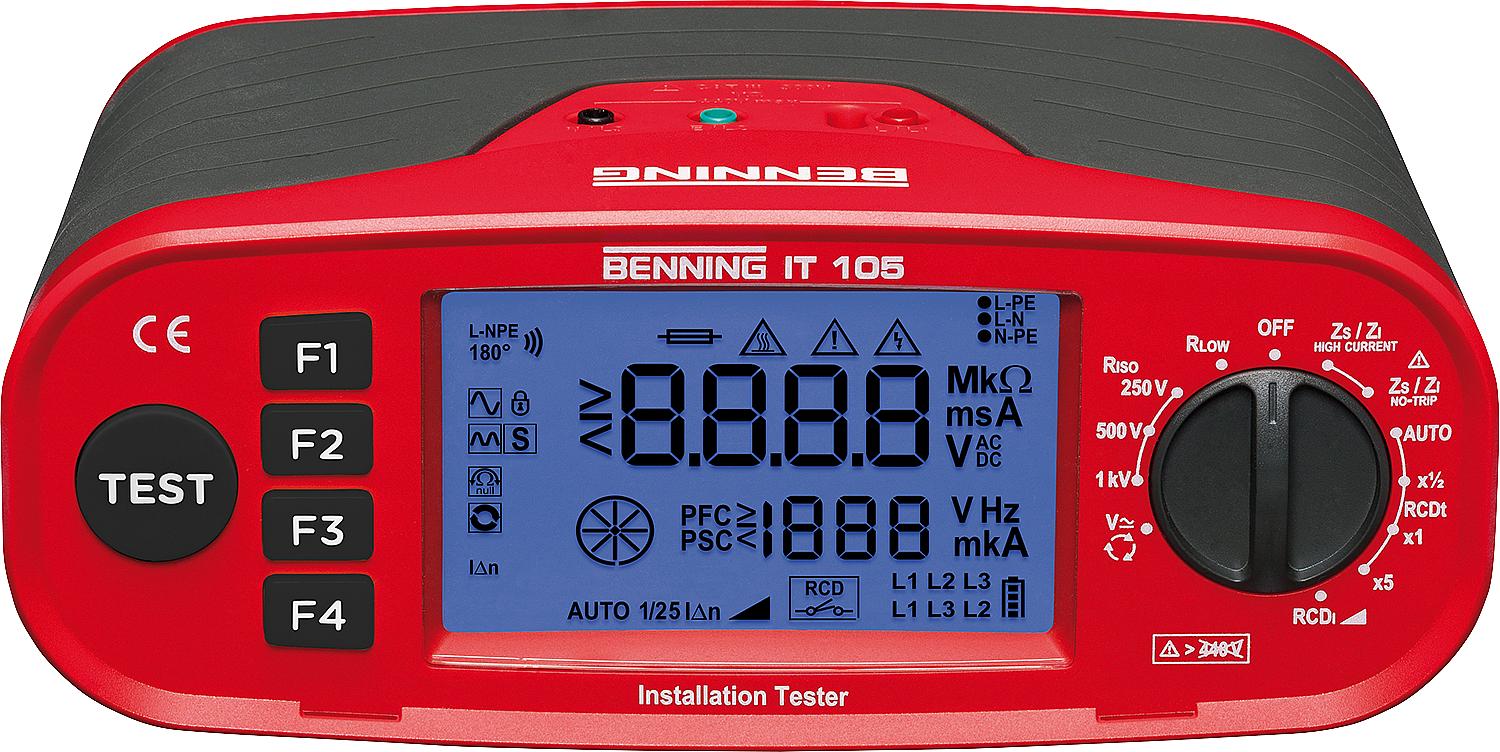

Benning IT105 installation tester

Application:

• For electrical engineering, industry, photovoltaics
• Testing of electrical installations according to VDE 0100/0105 and IEC 60364
• All measurement functions can be selected directly via rotary switch.

General measurement functions:

• Low resistance of protective conductor and equipotential bonding conductor connections (test current: 200 mA for IT 115 and IT 130 with polarity reversal)
• Phase sequence testing in three-phase networks

• Measurement function specific:
• Low resistance of protective conductor and equipotential bonding conductor connections (test current: 200 mA)
• Insulation resistance with test voltage of 250/500/1000 V
• Loop impedance (LPE) without RCD tripping (NO_TRIP) with simultaneous display of the fault current (PFC)
• Line impedance (LN/L) with high current test current (HIGH CURRENT) and simultaneous display of short-circuit current (PSC)
• Features:
• Test probe with TEST button to start the measurement process
• AUTOStart function for low resistance, loop and line impedance measurement
• LOCK function (continuous measurement) of insulation resistance
• Compensation (zero adjustment) of the measuring leads up to 10 Ω

• Display: Graphic display (illuminated)
• Low resistance measurement: 0.15 Ω 199 Ω
• Insulation resistance: 0.20MΩ 199MΩ
• Line impedance (LN/L): 0.20 Ω 1999 Ω
• Loop impedance (LPE): 0.20 Ω 1999 Ω
• Short-circuit current: 0 A to 26 kA
• FI/RCD test: Tripping time (1/2 x, 1 x, 5 x I∆N, AUTO) Tripping current (ramp)
• FI/RCD Type: Standard and delayed (S)
• FI/RCD current: sinusoidal (AC), pulsating (A), 10/30/100/300/500 mA
• Phase sequence test: right/left in three-phase networks
• Voltage: 1 V 440 V
• Frequency: 45 Hz 65 Hz
• Earth resistance: No
• Electricity: No
• Illuminance: No
• Measurement data storage: No
• Scope of delivery:
• Batteries: 6 x AA (Order No.: 62 079 47)
• Robust hard-shell suitcase and shoulder strap
• Test probe with TEST button
• 3-wire test probes/crocodile clip set
• Test lead with protective contact plug
