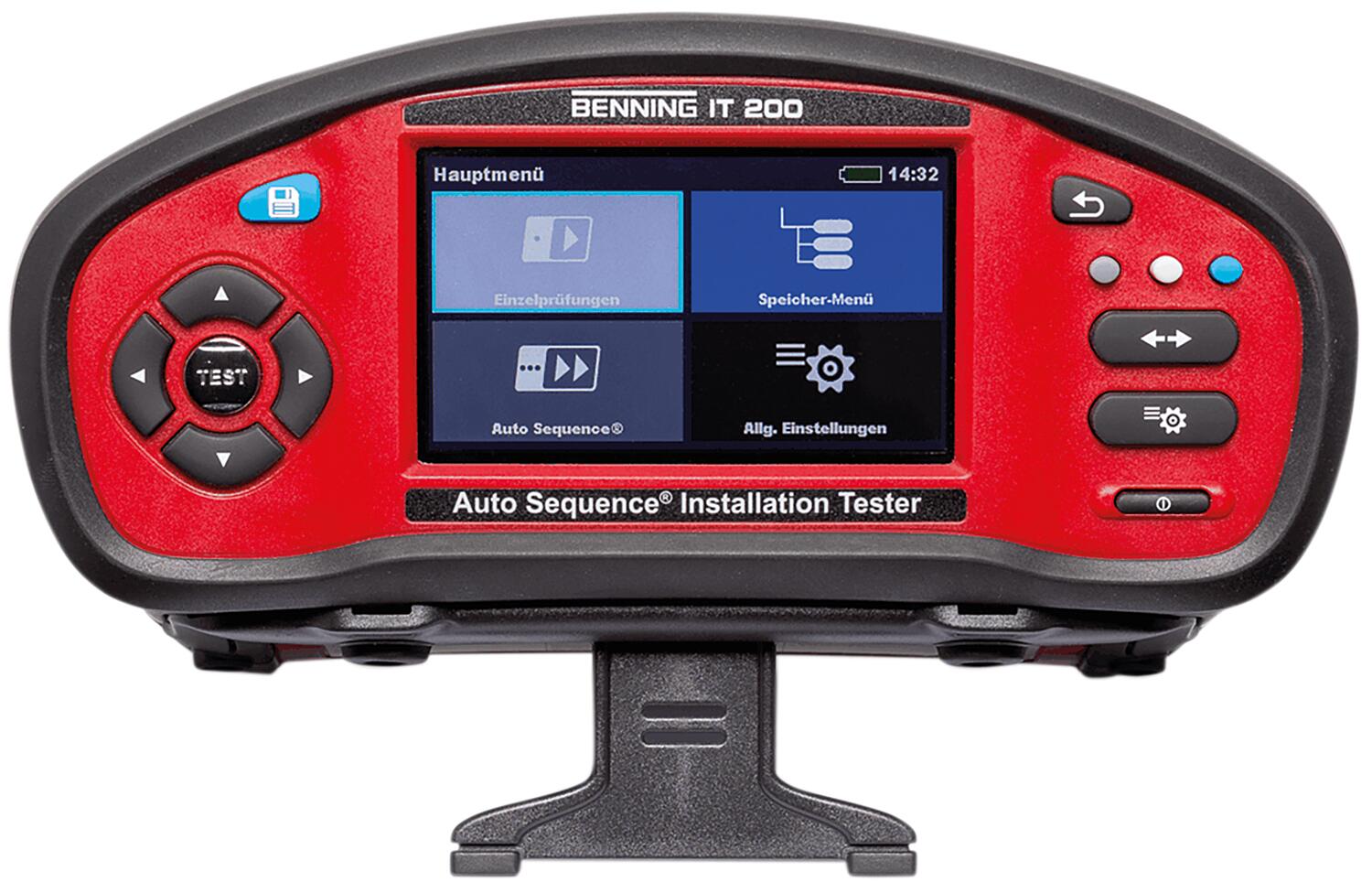

Benning IT200 installation tester

Measurement function specific:

• RLOW measurement with 200 mA DC test current and automatic polarity reversal / PE resistance measurement under mains voltage (3-wire method)
• Insulation resistance tester with test voltage of 50 V to 1000 V DC / RISO ALL, self-test between all conductors (LN, LPE and NPE), RISO pre-test, protects connected devices from test damage
• Loop (LOOP) and line impedance (LINE) with 20 A test current including short-circuit current/voltage drop calculation for precise measurement results
• Testing of various RCD types: general, selective, AC, A, F, B, B+, EV RCD, EV RCM (RCDDD), MI RCD, PRCDs
• RCD testing with RCD Auto, RCD t, RCD I and Uc measurement
• TRMS voltage and frequency measurement, phase sequence and varistor testing
• First Fault Leakage Current in IT Networks (ISFL)
• Testing of EV charging stations (EVSE Mode 3) (wallboxes)
• Specially tailored Auto Sequences® for 1- and 3-phase wallboxes including functional testing/trial of the charging process via optional measuring adapter BENNING EV 32 (044169)
• Testing of EVRCDs and 6 mA DC residual current monitoring devices (RCDDDs) according to IEC 62955 with measurement of tripping time and tripping current
• Documentation on pre-made EVSE test protocols

Features:

• Individual tests and pre-programmed Auto Sequence® measurements for TN/TT networks and EV charging stations (wallboxes)
• Automatic checks via a single keystroke, Z Auto (U, Zln, Zlpe, Ipsc, Uc) and RCD Auto (RCD t, RCD I, Uc), Auto TN rcd (U, Zln, Zlpe, Rpe, ΔU), Auto TN, TT and AutoIT
• Voltage monitor for online monitoring of the test connections
• High-performance 4400 mAh Li-ion battery pack for long operating times (optionally expandable to 8800 mAh (044170))
• Large data storage capacity on an 8 GB SD card
• USB, RS 232 and wireless interface (CordlessLink) for data transmission
• Display: 4.5" capacitive color touchscreen
• Low resistance measurement: 0.01 Ω 2 kΩ / 7 mA
• Insulation resistance: 10kΩ 1000MΩ
• Line impedance (LN/L): 0.01 Ω 10 kΩ / 0.1% 100%
• Loop impedance (LPE): 0.01 Ω 10 kΩ
• Short-circuit current: 0.01 A to 200 kA
• FI/RCD type: AC / A / F / B / B+ / EVRCD / MIRCD / EVRCM
• Phase sequence test: right/left in three-phase networks
• Voltage: 1 V 550 V
• Frequency: 14 Hz 500 Hz
• Grounding resistance: 0.01Ω 1999 Ω (via grounding set)

Application:

• Auto Sequence® installation tester for the efficient testing and documentation of electrical systems and EV charging stations (wallboxes) of charging mode 3, as well as safety-related tests on electrical systems in accordance with VDE 0100/0105 and IEC 60364 after installation, modification or as a regular recurring test.

Innovative operating concept:

• Operation via 4.5" color touchscreen and push button, order manager for processing and managing test orders
• Creation of complex plant structures including planned measurements directly at the testing site and on the PC
• Device administrator and user account management
• All measurement functions with help function and PASS/FAIL indication via stored safety characteristics for LOOP/LINE measurements
• Connection for barcode scanner to identify the measuring point

Measurement functions via optional accessories:

• Testing of 1- and 3-phase EV charging stations (wallboxes) including functional testing/testing of the charging process via optional test adapter BENNING EV 32 (044169)
• Two methods for measuring earth resistance via optional earthing set (044113) (non-selective) and current clamp adapter BENNING CC 41/CC 42 (044166/044167) (selective)
• TRMS current, power and harmonic distortion (THD) measurement via optional BENNING CC 41/CC 42 current clamps (044166/044167)
• TRMS load currents up to 300 A AC/DC via AC/DC current clamp adapter BENNING CC 3 (044038)
• Testing of 5-pin, 16 A CEE sockets via optional CEE measuring adapter BENNING TA 6 (044168)
• Illuminance measurement via optional BENNING Luxmeter type B (044111)
• Scope of delivery:
• padded carrying case
• Protocol software BENNING PCWin IT 130200 via download link
• USB interface cable
• Commander test plug
• Universal 3-wire test lead
• Test probes, alligator clip set
• Rechargeable Li-ion battery pack (4400 mAh)
• charger
• 8 GB SD card
• Calibration certificate
