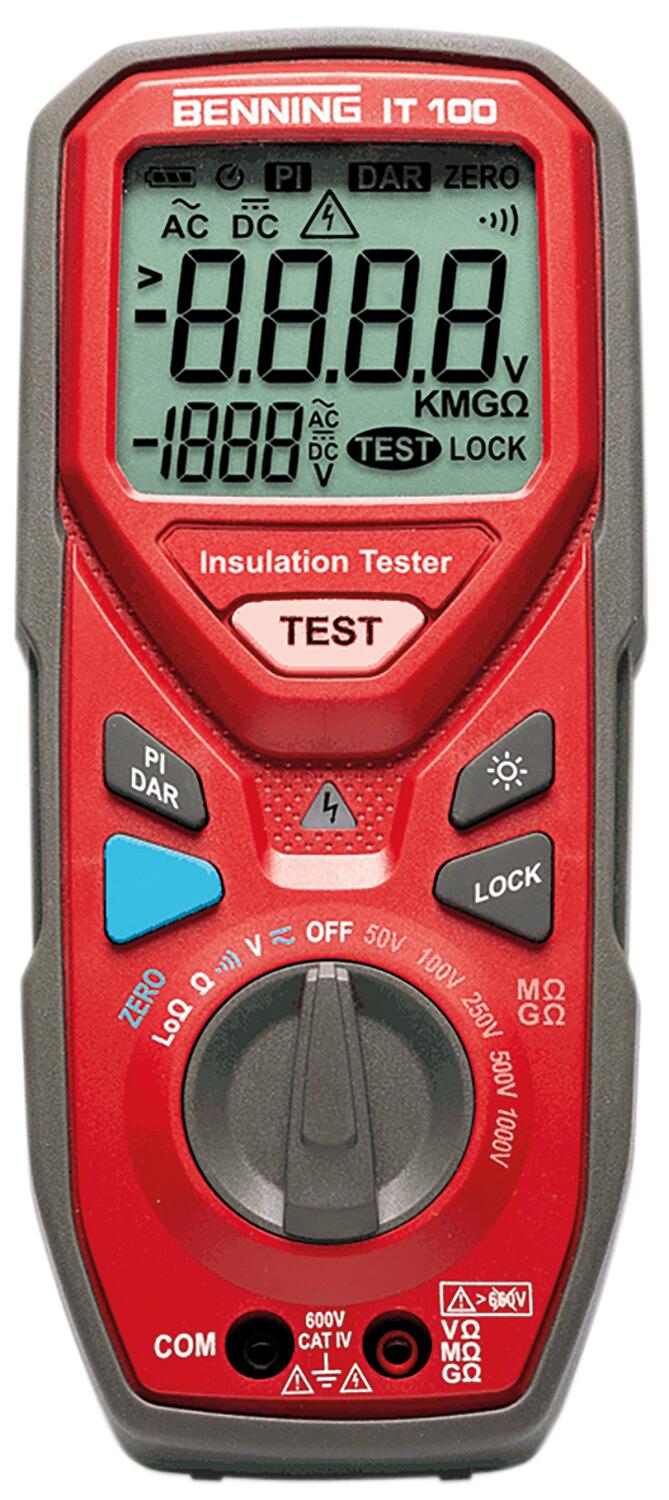

Benning IT 100 insulation and resistance measuring device

• Display: 9999 digits (illuminated)
• Insulation resistance: 300KΩ 20GΩ
• Low resistance: 0.01 Ω 60 Ω
• Resistance: 0.1 Ω 40 kΩ
• Voltage: 0.1 V 600 V AC/DC
• Continuity test: acoustic/optical 600 Ω
• Test and external voltage indication via red LED
• Test function for checking the internal backup
• Automatic prevention of the test under reverse voltage
• Compact and handy housing design
• Rubber protective frame for harsh, industrial use
• Large backlit LCD display

Additional function:

• Polarization index (PI), absorption coefficient (DAR), automatic discharge function, zero adjustment of the measuring leads, integrated fuse test, test lock under reverse voltage

Application:

• Insulation and resistance measuring device for standard-compliant testing of electrical installations
• A multifunctional measuring device for many applications in electrical installation and the electrical industry.

Measurement function specific:

• Low resistance of protective conductors and equipotential bonding connections (test current: 200 mA)
• Insulation resistance with test voltages of 50 V, 100 V, 250 V, 500 V and 1000 V
• Resistance measurement with 200 mA test current for testing protective conductor connections with measuring lead zero adjustment
• Continuity test with beep
• Voltage measurement
• Determination of the polarization index (PI) and absorption coefficient (DAR)
• Scope of delivery:
• Batteries: 3 x 1.5V Micro AAA
• Rubber protective frame
• 4 mm measuring lead and probe set
• Alligator clips
• Protective case
