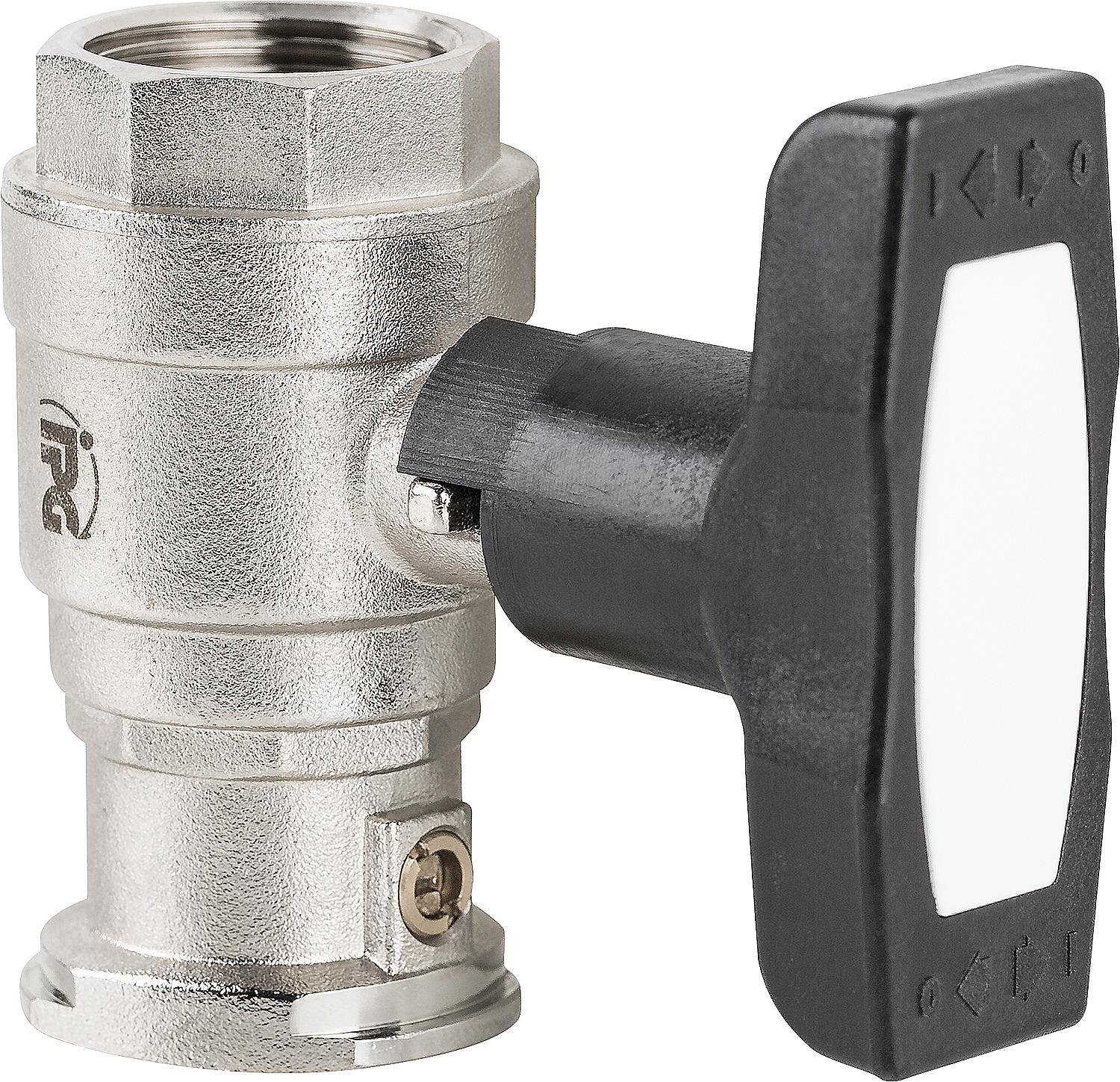

- Threaded ball valve with internal threads on both sides
- With full passage
- Spindle seal via stuffing box (with PTFE seal)
- Thermometer can be retrofitted by replacing the plastic cover
- Material:
- Housing: Nickel-plated brass
- Ball: Chrome-plated brass (with PTFE seal)
Technical data:
- Maximum operating temperature: 80°C
- Maximum operating pressure: 16 bar
- Media:
- Heating water according to VDI2035
- Glycol mixture up to 30%
| Installation length [mm] | 87.5 |
|---|---|
| Unit price | CHF/piece |
| Size | DN 25 (1") x DN 25 (1") |
| Type | F SKB |
