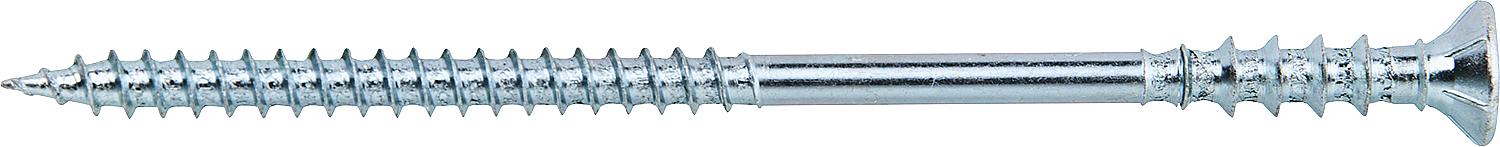

• Thread diameter: 6.0 mm
• Blade size T25
• Double thread
• Galvanized
• Used to allow stepless alignment of wooden slats with a thickness of max. 25 mm after installation
• The adjustment range is between 15 and 75 mm, depending on the screw length.
• Screw through the counter batten into the substrate without pre-drilling until the screw head is flush with the wooden batten.
• The slat can be adjusted by turning it counterclockwise.
| Length Ls [mm] | 60 |
|---|---|
| Length [mm] | 60 |
| Unit price | CHF/unit price |
| Screw head | Countersunk head |
| Partial thread length LgT [mm] | 25 |
| Packaging unit | 100 |
