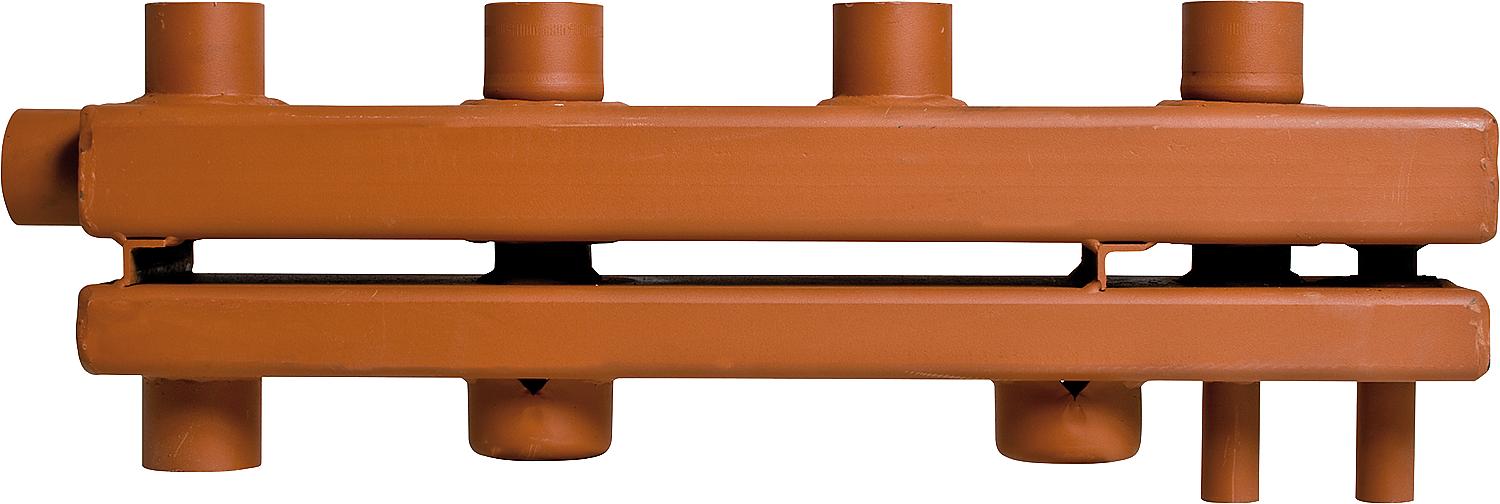

Boiler distributor for 2 heating groups type F 122-16 Thermally separated

Boiler distributor for 2 heating groups type F 122-16 Thermally separated

Bewertungen
CHF 646.60
CHF 646.60
% Sold out
Taxes included.
Manufacturer:
Order No.:
Availability:
MAGRA
sofort lieferbar

Security policy

Delivery terms

Return policy
View full details
Beschreibung Spezifikation Bewertungen
  • Thermally separated flow and return chambers, suitable for condensing boiler technology
  • Socket spacing: 160 mm
  • Drainage sockets DN 15 (1/2") for flow and return chambers
  • Welded-in pipe sleeves for routing the return couplings
  • Double chamber 122/122 mm
  • Heating water flow rate: up to 11 m³/h
  • Power output at ∆T 20°C: up to 250 kW

  • Group outlets: DN 40 (1 1/2") female threaded sockets
  • Boiler flow connection: DN 40 (1 1/2") female thread socket, end face
  • Boiler return connection: DN 40 (1 1/2") female thread socket at the bottom
  • Distribution chambers arranged one above the other
  • Welded from sheet steel
  • Group departures upwards; forward and return flows side by side
  • Operating temperature: max. 110°C
  • Operating pressure: max. 6 bar
  • Factory pressure tested and primed
Brand MAGRA
Number of heating groups 2
Manufacturer part number 11601201602
Unit price CHF/piece
