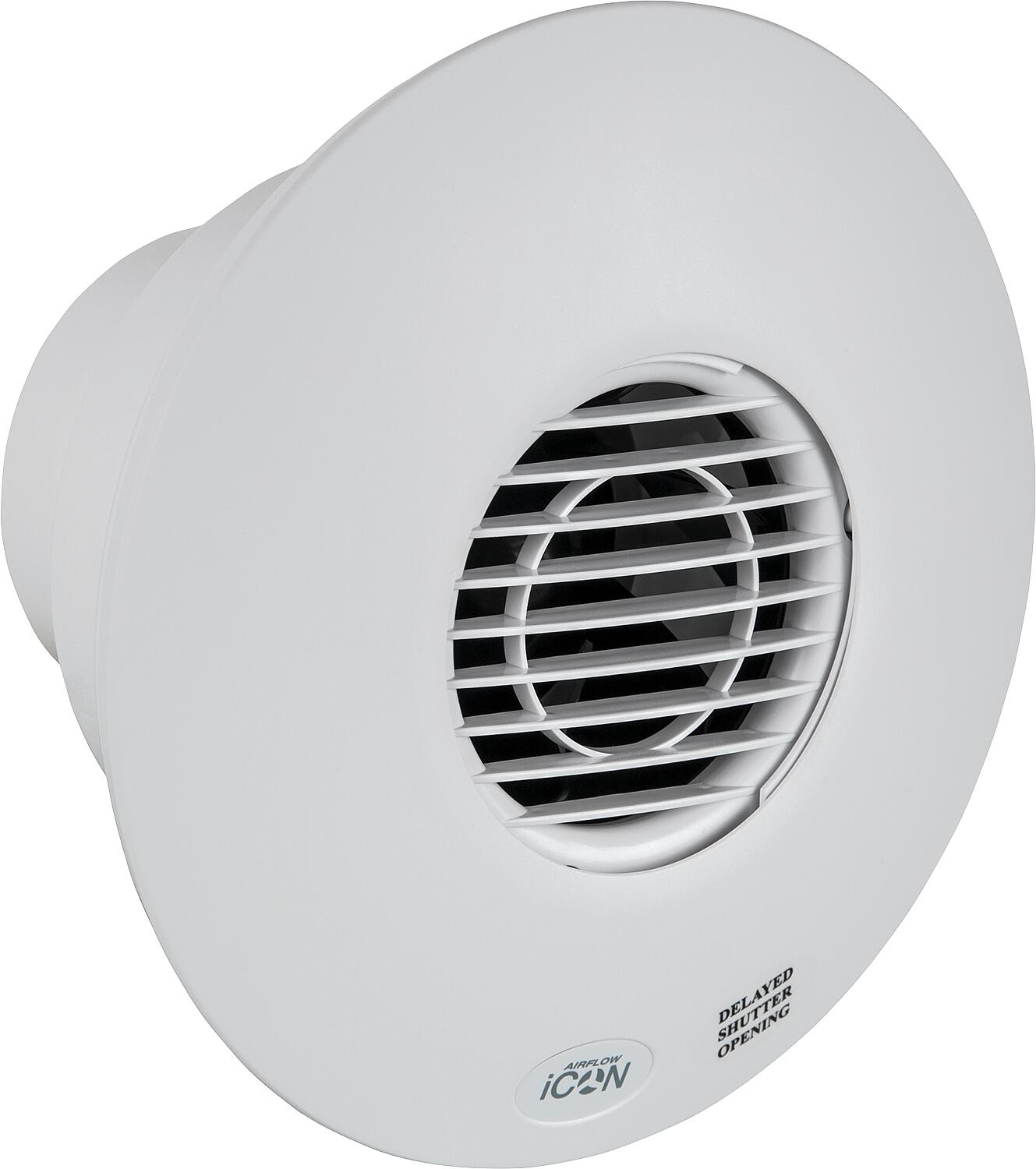

Kleinraum-Ventilator Icon 30 (V=118m³/h), 230V NW 100, weiss

Technical data:
• Protection zone 2 of wet rooms
• Design: Semi-axial
• Flow rate: 118 m³/h
• Pressure: max. 80 Pa
• Sound pressure level: 34.5 dB(A)
• Voltage 230 V/50 Hz
• Power consumption: 30 W
• Nominal diameter:
- 100 mm for surface mounting
- 150 mm for flush mounting

• Protection rating: IPX4
• Conveying temperature: max 40°C
• Speed ​​controllable: no
• Backflow preventer
• Iris rosette, self-opening/closing, with a time delay of approximately 30 seconds via a melting motor
• Basic version: On/Off via external switch, can be combined with optional control modules as needed.

Dimensions in mm
