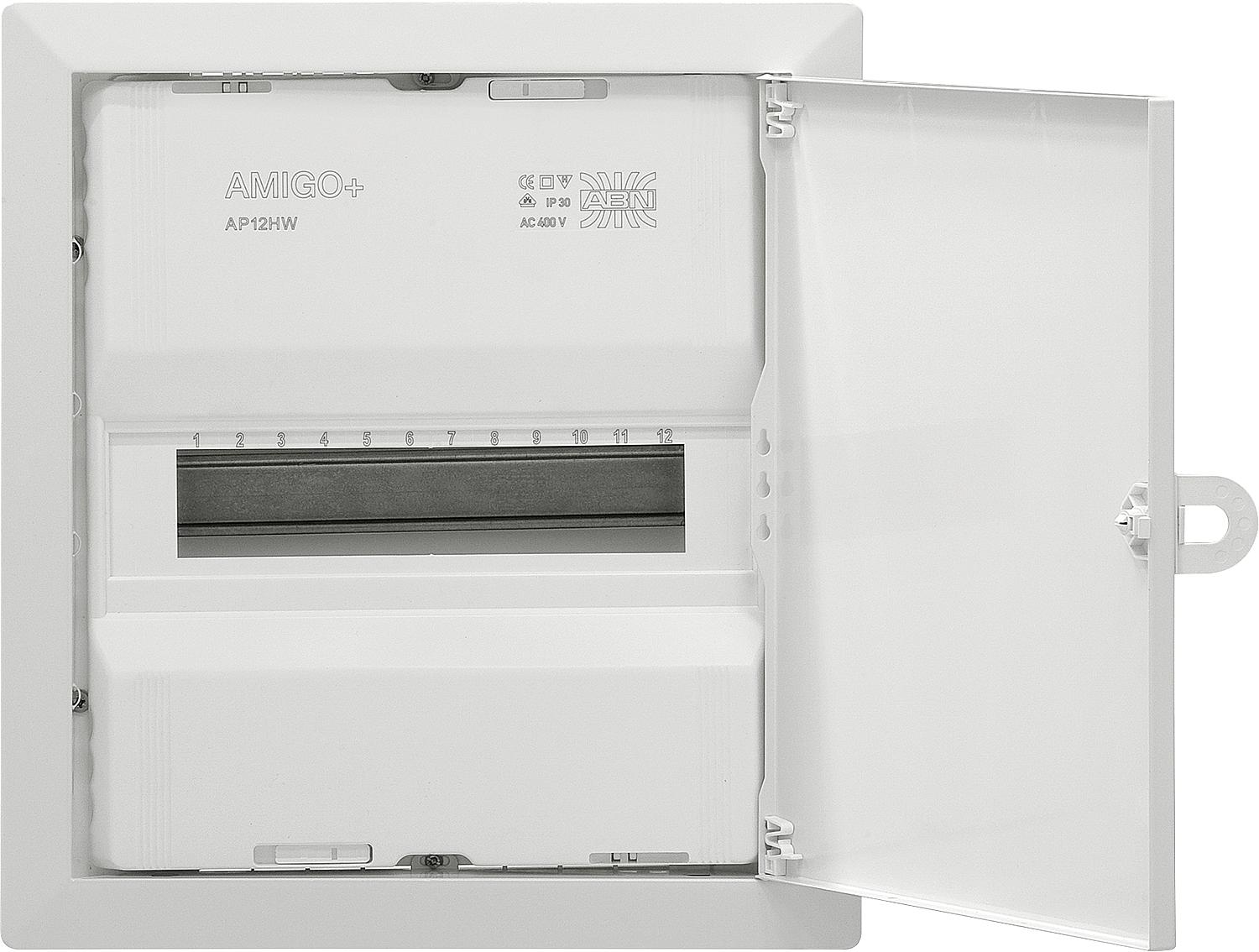

- Protection class: IP30, VDE, up to 63 A
- Wall box with device carrier made of sheet steel, depth 88 mm
- N/PE push-in terminals, finger-safe, with easy-to-install snap-in technology
- NFI expansion terminal; included as standard for 2, 3 and 4-row distribution boards for snap-on mounting or DIN rail mounting.
- Device cover with device cutouts, h = 46 mm
- Frame with door
- Circuit labels
- Sheet with pictograms
- Changing the door hinge without removing the frame
- Device cover with cutout, symmetrically expandable, sealable, 2-point mounting, screwless
- Suitable for built-in appliances up to 70 mm deep
- Color RAL 9016, signal white
- single row
- Niche dimensions (H x W x D): 295 x 310 x 88 mm
- Distribution dimensions (H x W x D): 349 x 344 x 11 mm
| Brand | abn |
|---|---|
| Dimensions (W x H x D) [mm] | 355 x 323 x 88 |
| Design | 1 row |
| Unit price | CHF/piece |
| Type | A12HW Cavity wall |
