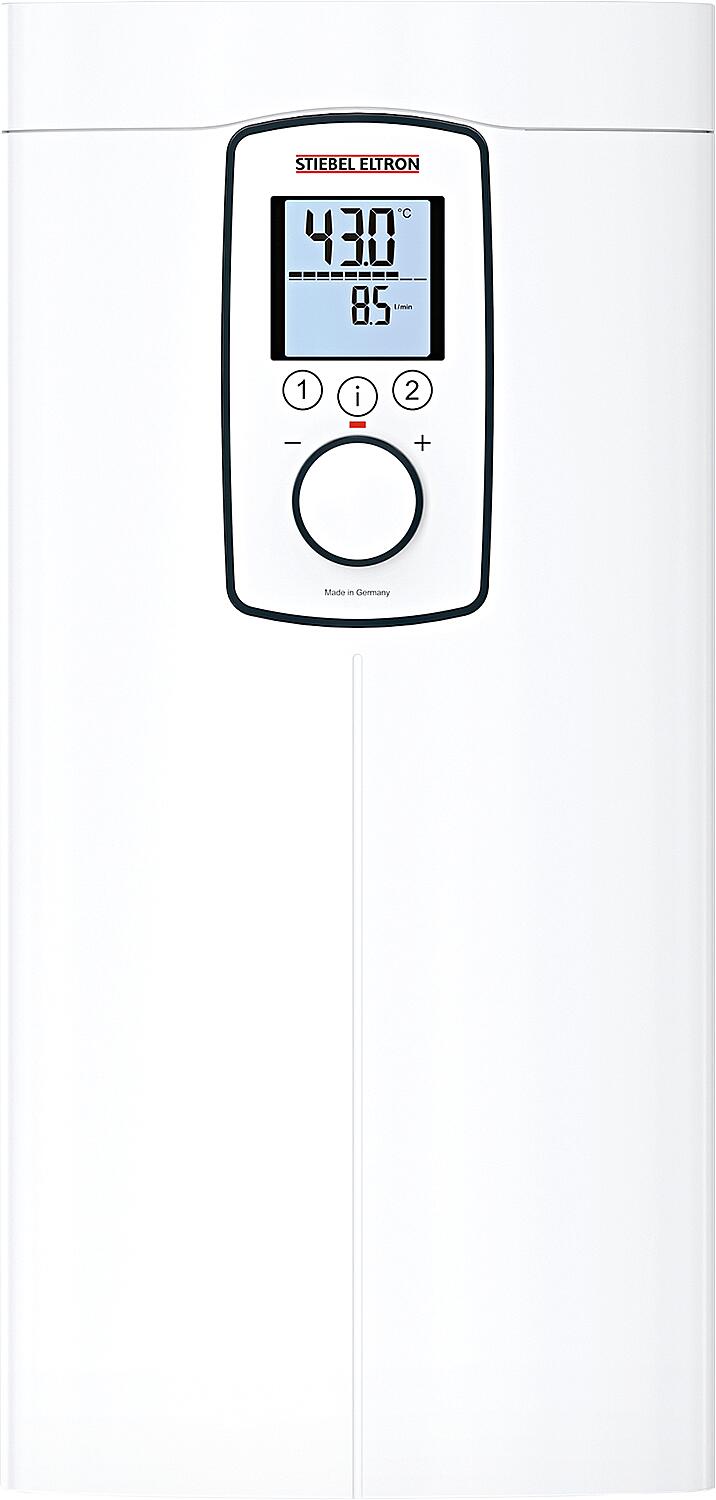

Komfort-Durchlauferhitzer Stiebel Eltron DHE 27, vollelektronisch geregelt

• For one or more sampling points • Fully electronically controlled • For top and bottom table mounting • Easy operation thanks to a large, illuminated multifunction display • Increased ease of use when mounted under a table, as the device cover and control unit can be rotated. • The temperature can be permanently limited internally by a qualified technician to 55, 50 or 43 °C. • Consumption display • Quick temperature selection via two memory buttons • Suitable for reheating preheated water • Selectable appliance power – 18/21/24 kW in one appliance (not DHE 27) • A convenient remote control is available as an accessory.

Technical data:

type	DHE 18/21/24	DHE 27
Energy efficiency class	A	A
Voltage [V]	400	400
Rated power [kW]	18 / 21 / 24	27
Protection class	IP25	IP25
Temperature selection range [°C]	20 - 60	20 - 60
Water connections (screw connections)	DN 15 (1/2") AG	DN 15 (1/2") AG
Hot water output at Δt = 28 K [l/min]	9.2 / 10.7 / 12.3	13.8
Dimensions (W x H x D) [mm]	225 x 466 x 116	225 x 466 x 116

Brand	Stiebel Eltron
Manufacturer part number	202656
Unit price	CHF/piece
Ref. No.	202656
Type	DHE 18/21/24
