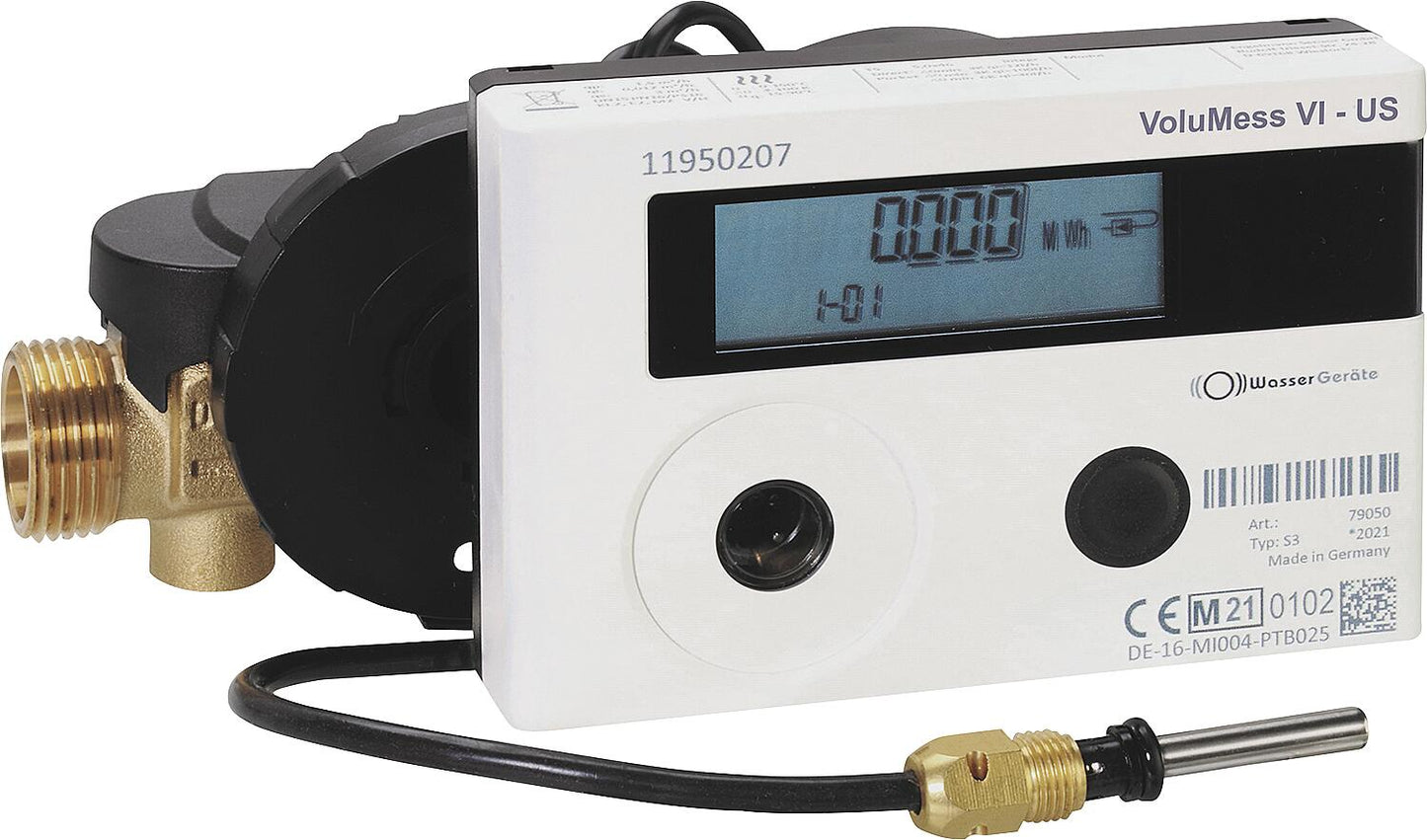

Kompakt Wärmezähler VoluMess VI Ultraschall, Qp 2,5m³, DN20, 130mm

• Detachable calculator with 0.5 m cable length, with wall mount
• Integrated optical interface
• Free slot for option module
• Installation position: horizontal or vertical
• For installation in the return line
• Freely selectable annual cut-off date
• Storage of maximum values
• 230 V/AC power supply can be retrofitted on site
• Replaceable battery
• MID compliant
Technical data:
• Ambient temperature: 5-55°C
• Maximum operating pressure: 16 bar
• Operating temperature: 15-90°C
• Material: Brass
• Cable length: 1.5 m
• Protection class: IP65
• Battery: 10 years
• Measurement cycle: 60 sec.

• Sensor ø: 5.0 mm
