• Set with the basic components for implementing a decentralized controlled residential ventilation system with 4 device units or 2 pairs of fans.
• 2 operating modes: Summer operation (supply or exhaust air mode without heat recovery) Winter operation (reversing mode with heat recovery)
• Sleep timer function (device switches off at the touch of a button and switches back on after 2 hours of sleep time)
• Easy cleaning of the heat exchanger thanks to completely removable internal components
• Expandable to 18 devices with expansion kit (98 007 69)
• SE version without integrated humidity sensor
Technical data:
• Delivery volume (1 blower unit): 10/15/21/30/40 m³/h
• Voltage: Blower unit 12 V, control unit 230 V (with integrated power supply)
• Power consumption (1 fan unit): 0.85/0.95/1.15/1.7/2.15 W
• Sound pressure (at 3 m): 11/15.7/21/32.5 dB(A)
• Protection rating: IP22
• Heat recovery rate up to 99%
• Minimum wall thickness: 260 mm
• Required core drilling: ø 200 mm
• Filter class: G3, regenerable

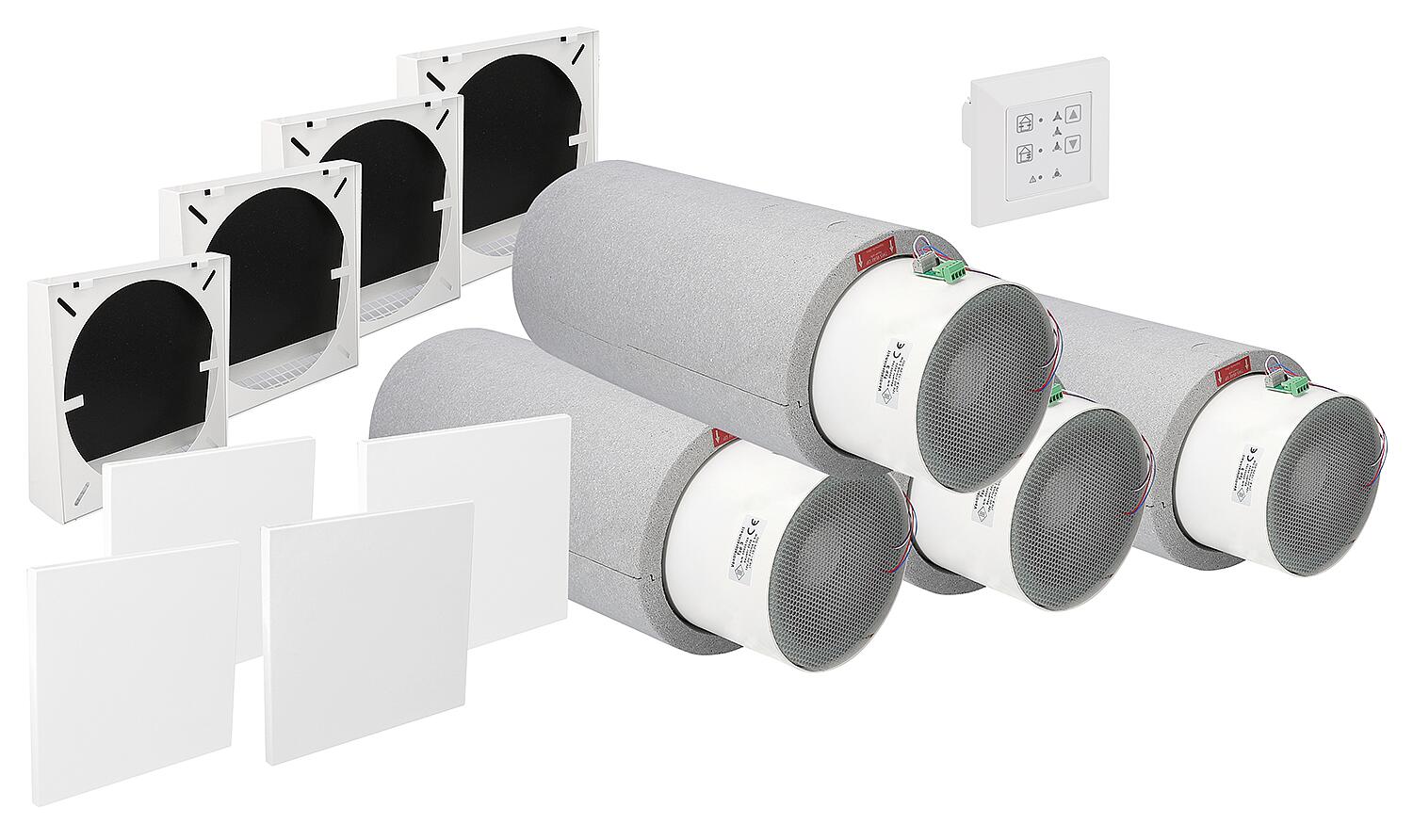

Scope of delivery:
• 4x Eventair 2.0 SE blower units incl. external grille
• 4x wall mounting sleeves
• 4x lockable inner panels
• 1x Controller 2.0
| Unit price | CHF/set |
|---|
