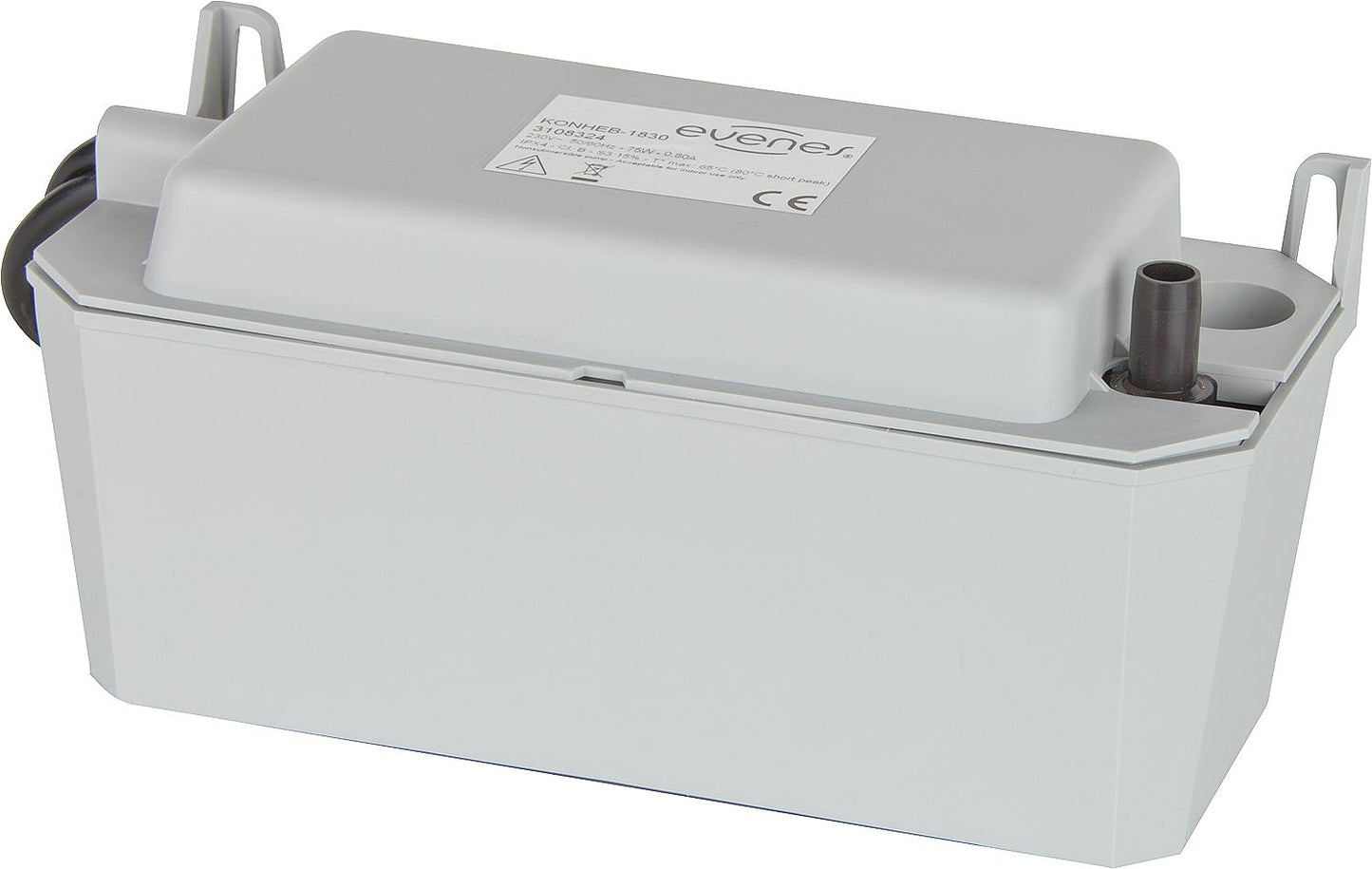

Condensate pump evenes KonHeb 1830 incl. 5m PVC hose, 10mm

• For draining condensate from oil-fired condensing boilers, air conditioning systems and refrigerated display cases
• Its compact design with various mounting options (floor-standing, wall-mounted) allows it to be installed directly into an existing tray without its condensate tank.
• Resistant to acidic condensate and sulfuric acid fumes
• Can also be used in oil condensing boilers without neutralization (taking legal guidelines into account)
• Biofilm-resistant float switch
• Power supply cable with Schuko plug 2.0 m and alarm cable (open cable end) 1.0 m
• Integrated check valve for hose ø 10 mm 3/8"

Scope of delivery:

• Includes pressure hose ø 10 mm (inner diameter) with 5 m length
• Adapter for condensate inlet ø 24/32/40 mm
• Fastening screws

Technical data:

• Operating voltage: 230 V/AC
• Power consumption: 75 W
• Protection class: IP X4
• Safety contact: NC 4 A, potential-free
• Maximum delivery head: 3.7 m
• Maximum flow rate: 400 l/h
• Condensating acid max.: pH > 2.0
• Condensate tray capacity: 0.5 L
• Maximum condensate temperature: 65°C
• Dimensions (L x W x H): 221 x 100 x 106 mm
