Package consisting of:

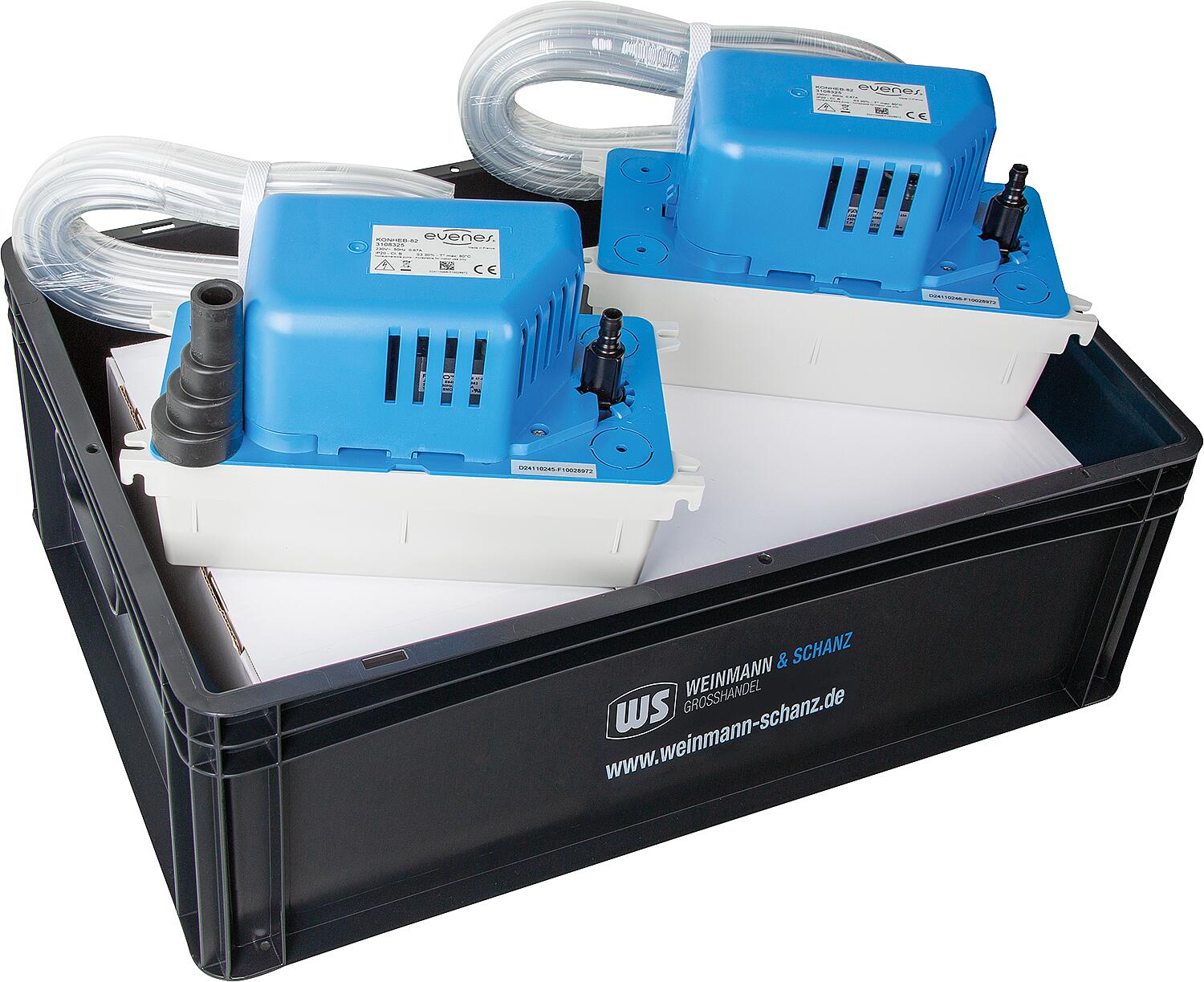

- 4x Condensate pump KonHeb 82, incl. 5 m PVC hose (ø 10 mm)
- For draining condensate from gas condensing boilers, air conditioning systems and refrigerated display cases.
- Compact design with various mounting options (floor-standing, wall-mounted)
- Shock-resistant mechanical design
- Oil and acid resistant floats
- Electrical quick connection with Euro/Schuko plug 1.5 m and alarm cable (open cable end)
- Integrated check valve for hose ø 10 mm 3/8"
Scope of delivery:
- Includes pressure hose ø 10 mm (inner diameter) with 5 m length
- Adapter for condensate inlet ø 25/32/40 mm
- Mounting screws.
Technical data:
- Operating voltage: 230 V/AC
- Power consumption: 70 W
- Protection class: IP 20
- Safety contact: NC 4 A, potential-free
- Maximum delivery head: 5.0 m
- Maximum flow rate: 500 l/h
- Condensating acid max.: pH > 2.5
- Condensate tray capacity: 2 L
- Maximum condensate temperature: 65°C
- Dimensions (L x W x H): 279 x 130 x 175 mm
- Free: 1x WSTransportbox
| Unit price | CHF/pack |
|---|---|
| Ref. No. | - |
