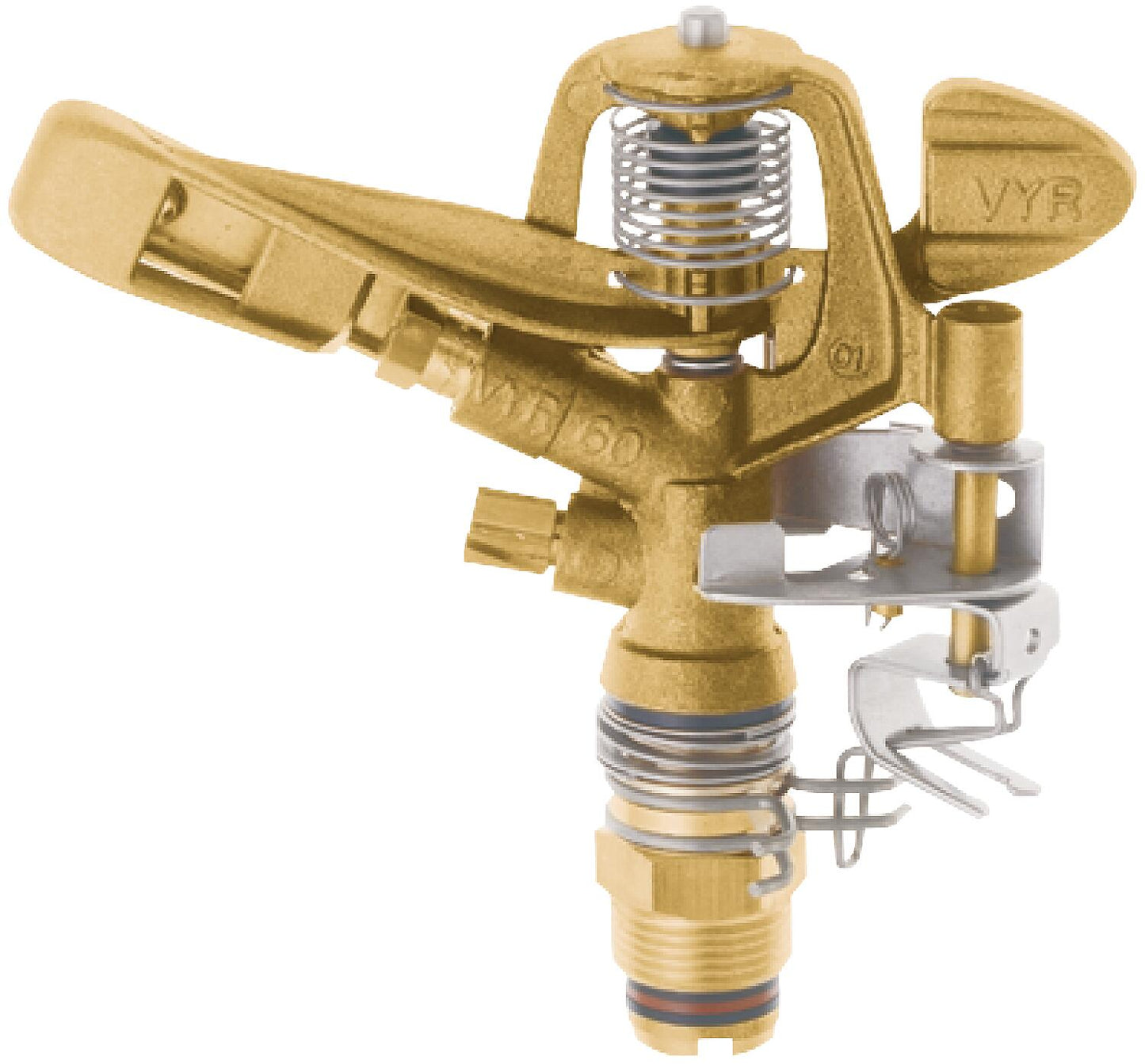

- Rocker arm sprinkler made of brass CW617N
- For open fields (field vegetable cultivation, fruit growing, frost protection, sports and leisure facilities, etc.)
- Throwing range at 4 bar: approx. 16 m (with standard nozzle configuration)
- Recommended pressure range: 26 bar
- Water flow rate at 2 bar: 22.4 l/min
at 3 bar: 27.4 l/min
at 4 bar: 31.6 l/min
- Connection: External thread DN 20 (3/4")
- Springs and beam jamming pin screw made of chrome steel
- For medium to high irrigation densities
- Beam disruption screw for regulating throw distance and droplet size
- Sector limit continuously adjustable from 20° to 360°
| Unit price | CHF/piece |
|---|
