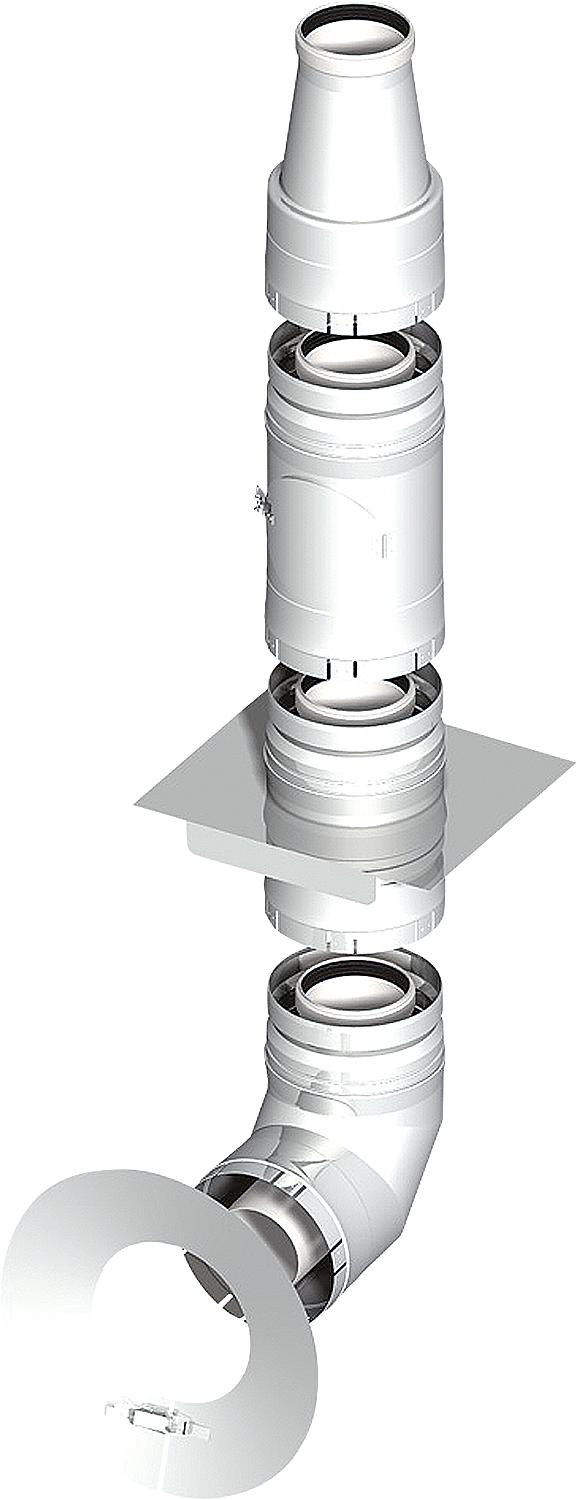

Plastic exhaust system basic set 5 - DN 080/125

Consisting of:

• 1 x wall rosette
• 1 x arc 87°
• 1 x console plate with air intake
• 1 x control tube
• 1 x Muzzle end

• Plastic exhaust system for external wall mounting

Operating conditions:

• Gas condensing technology, oil condensing technology
• Tmax: 120°C
• Pmax: 5000 Pa (H1 approval)

Permit:

• CE 0063CPD6934, single-walled and double-walled components

Material:

• All exhaust gas components are made of high-quality, flame-retardant polypropylene (PP).
• The outer casing is made of stainless steel (V2A; 1.4301; wall thickness: 0.6 mm)

Connection technology:

• The components are connected using push-fit sockets.
• Special seals ensure safe, quick and pressure-tight installation.
• These triple lip seals are resistant to all oil and gas condensates.

• The NW 60/125, 110/160, 125/173, 160/220 and 200/260 sizes are available upon request.
• Also available in white lacquer.

We'll calculate your chimney!

• In our online shop www.weinmannschanz.de, under Download – Planning Forms, you will find the PDF files “Data Collection for Evenes Chimney…”! Please send the completed form back to us. We will then create the cross-sectional calculation and a customized offer for you!
