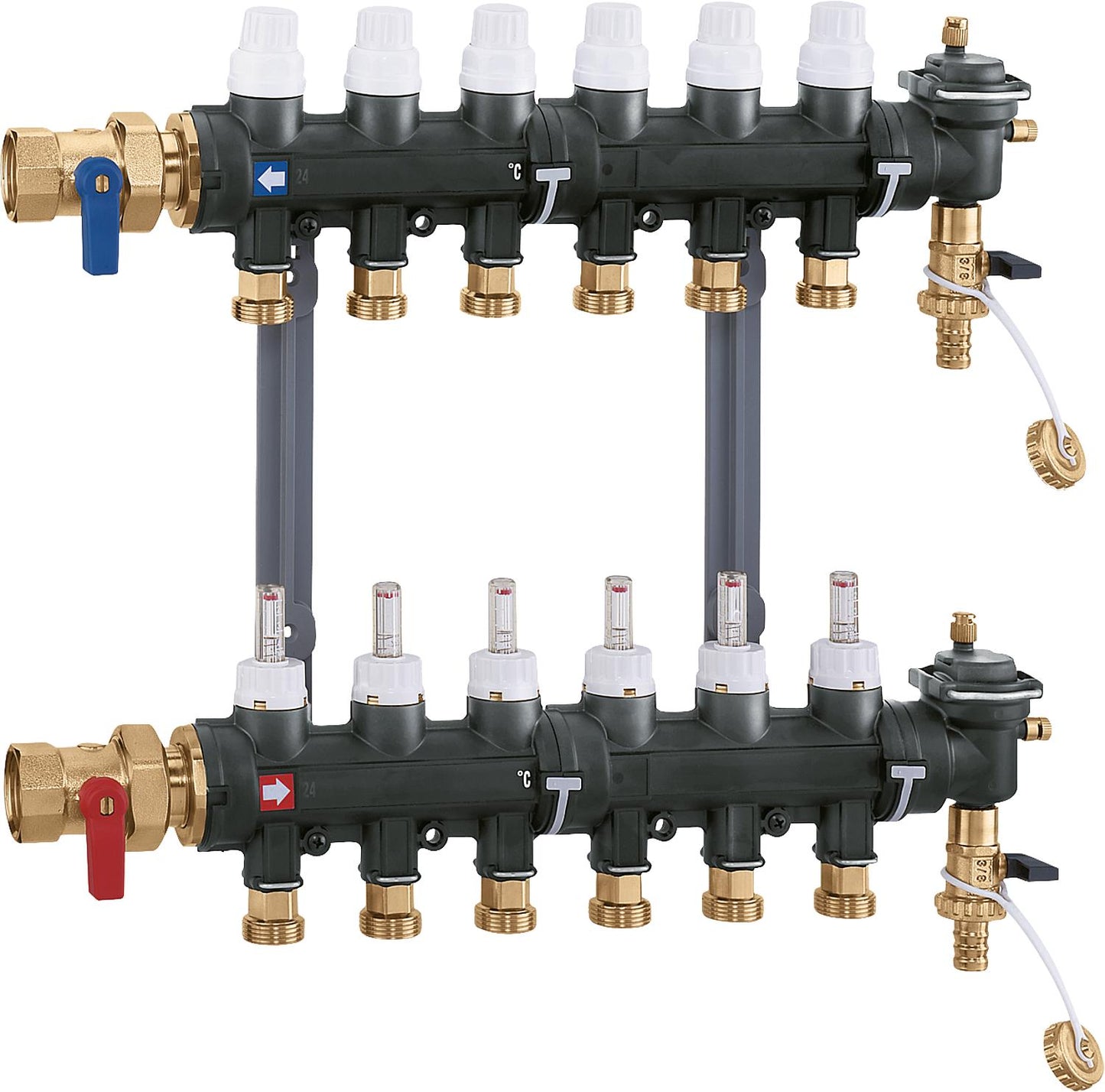

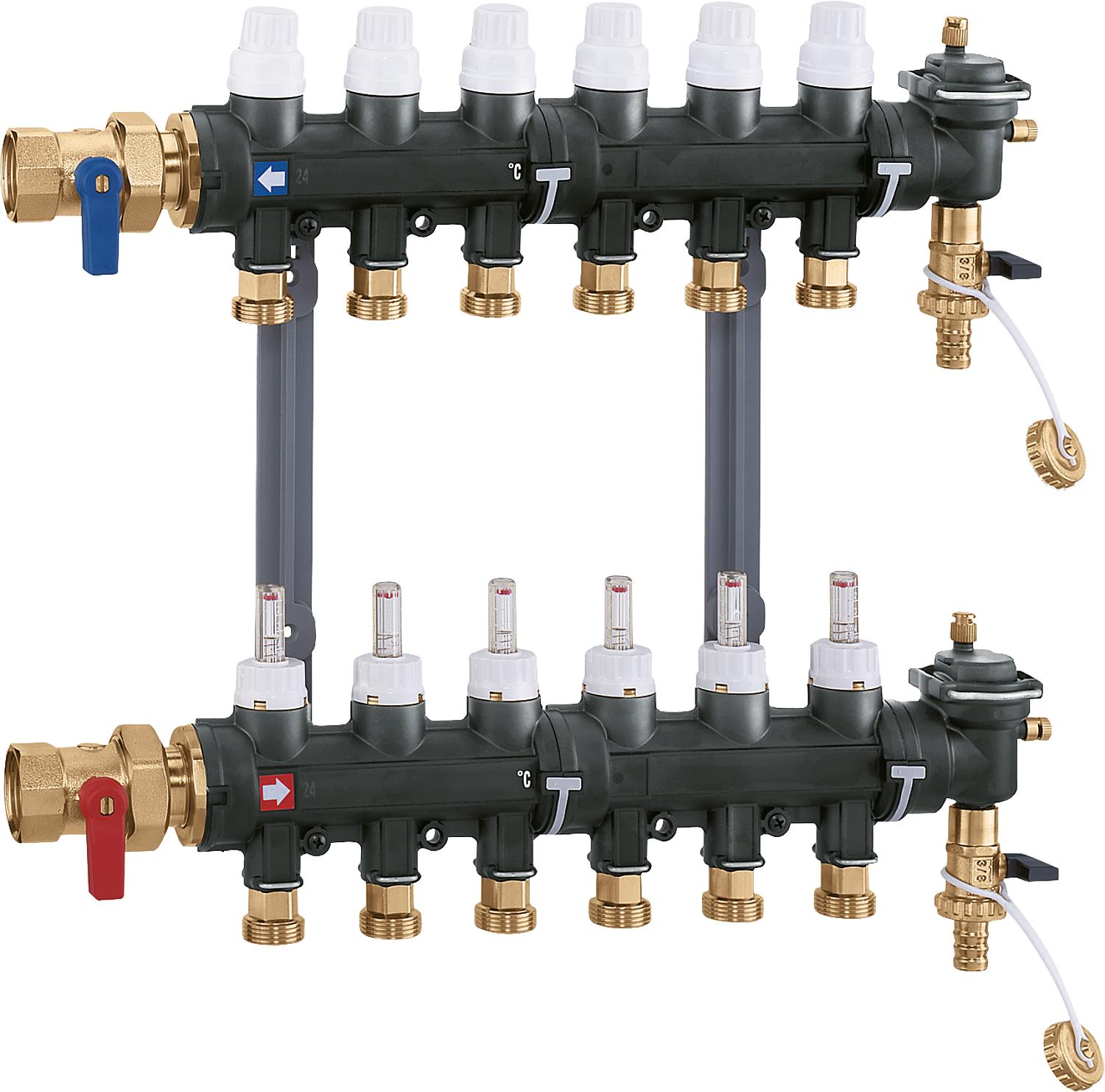

Plastic manifold for underfloor heating, complete for 3 groups

• Fully pre-assembled
• Made from a special plastic suitable for use in heating and cooling systems

Technical data:

• Connection: DN 25 (1") internal thread
• Outlets: DN 20 (3/4") AG
• Distance between outlets: 50 mm
• Maximum operating pressure: 4 bar
• Temperature range: 5°C ... 60°C
• Valves: M30 x 1.5 (Heimeier compatible)

Consisting of:

• Supply manifold with flow meters and integrated flow control valves
• Return manifold with integrated shut-off valves, retrofittable with electrothermal actuators
• Head assemblies with automatic rapid vents with hygroscopic cap, manual vent cap, KFEHahn
• Ball valve pair
• Digital liquid crystal thermometers on the supply and return manifolds
• Room display sticker
• Distribution holder set for mounting in distribution cabinet
• Plug adapter with mounting clip for distributor outlet
• Template for cable cutting

Supply distributor

• The supply manifold is equipped with flow meters and integrated flow control valves.

The flow rate of each circuit can be precisely adjusted to the desired level via the control valve with its special conical slide.

• A value can be set that can be read directly on the individual flow meters with a scale of 14 l/min.

Plug connections at the outputs of the floor circuits

The included plug adapters with locking clips fit into the outlet connections of the individual floor circuits.

Thanks to this connection system, the screw connection with the adapter can be mounted on the pipe outside the distribution cabinet and conveniently plugged into the distributor.

Return manifold

The return manifold is equipped with integrated shut-off valves. The flow rate of individual circuits can be reduced or completely stopped via the manually operated shut-off valve. The valves can be retrofitted with an electrothermal actuator and are therefore suitable for automatic operation controlled by a room thermostat.
