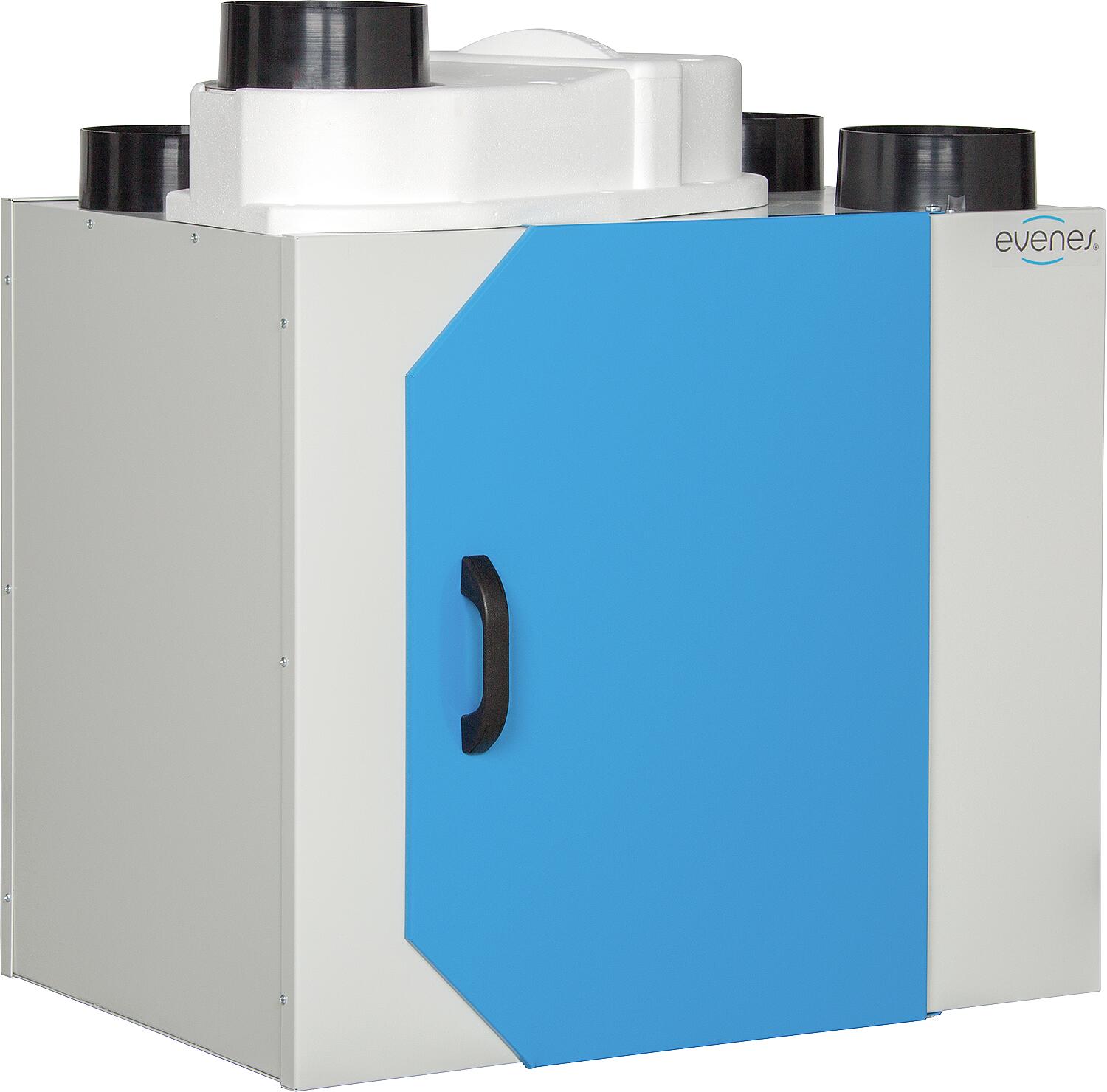

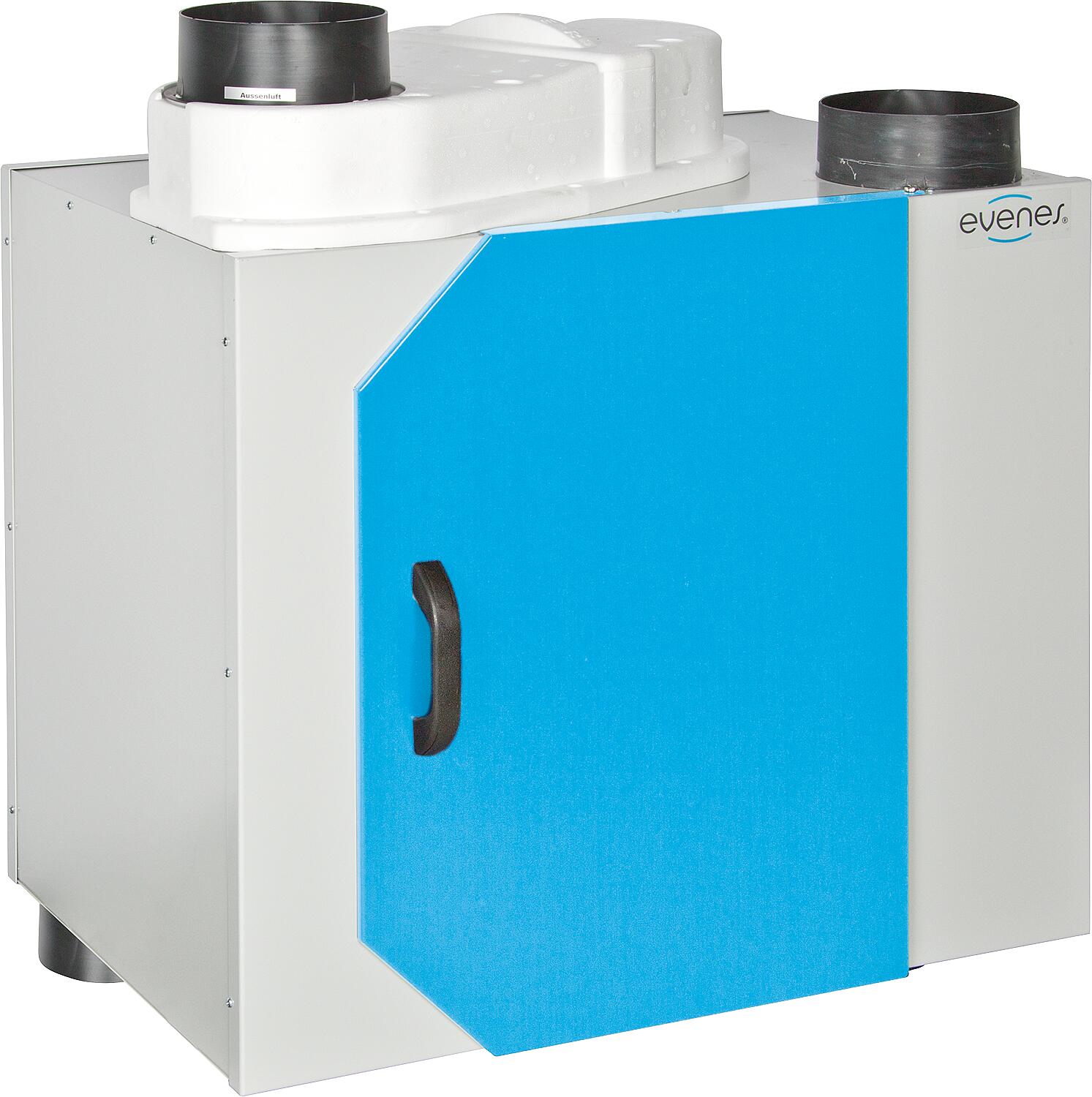

• With cross-flow heat exchanger for single-family homes and multi-story buildings
• 2 ventilation motors
• 3 ventilation levels
• Safety limitation in case of frost risk
• Summer/winter automatic via bypass valve
• Anti-icing protection for heat exchangers
• Building protection against frost damage
• Housing made of sheet steel, epoxy powder-coated
• Wall mount
• Operation only possible via additional control unit (not included in the scope of delivery)
• Voltage: 230 V/50 Hz
• Heat supply efficiency: up to 90%
• 2 air filters class EU3
• Heat exchanger made of plastic
• Air connection size: 4 x DN 150
• Condensate connection size: DN 40
• Weight: approx. 35 kg
Technical data:
HRV-25
• Conveyor volume: 100/170/250 m³/h
• Delivery pressure: 50/110/160 Pa
• Power consumption: 54/120/240 W
• Variable volume flow/constant pressure
HRV-30
• Conveyor volume: 100/200/300 m³/h
• Delivery pressure: 300/250/250 Pa
• Power consumption: 20/54/95 W
• Constant volume flow/Variable pressure
HRV-35
• Conveyor volume: 100/220/350 m³/h
• Delivery pressure: 50/180/200 Pa
• Power consumption: 50/130/180 W
• Constant volume flow/Variable pressure
| Brand | evenes |
|---|---|
| Unit price | CHF/piece |
| Volume flow rate [m³/h] | 100/170/250 |
| Type | HRV-25 OU BY |
| Design/Connection | Top/Bottom |
