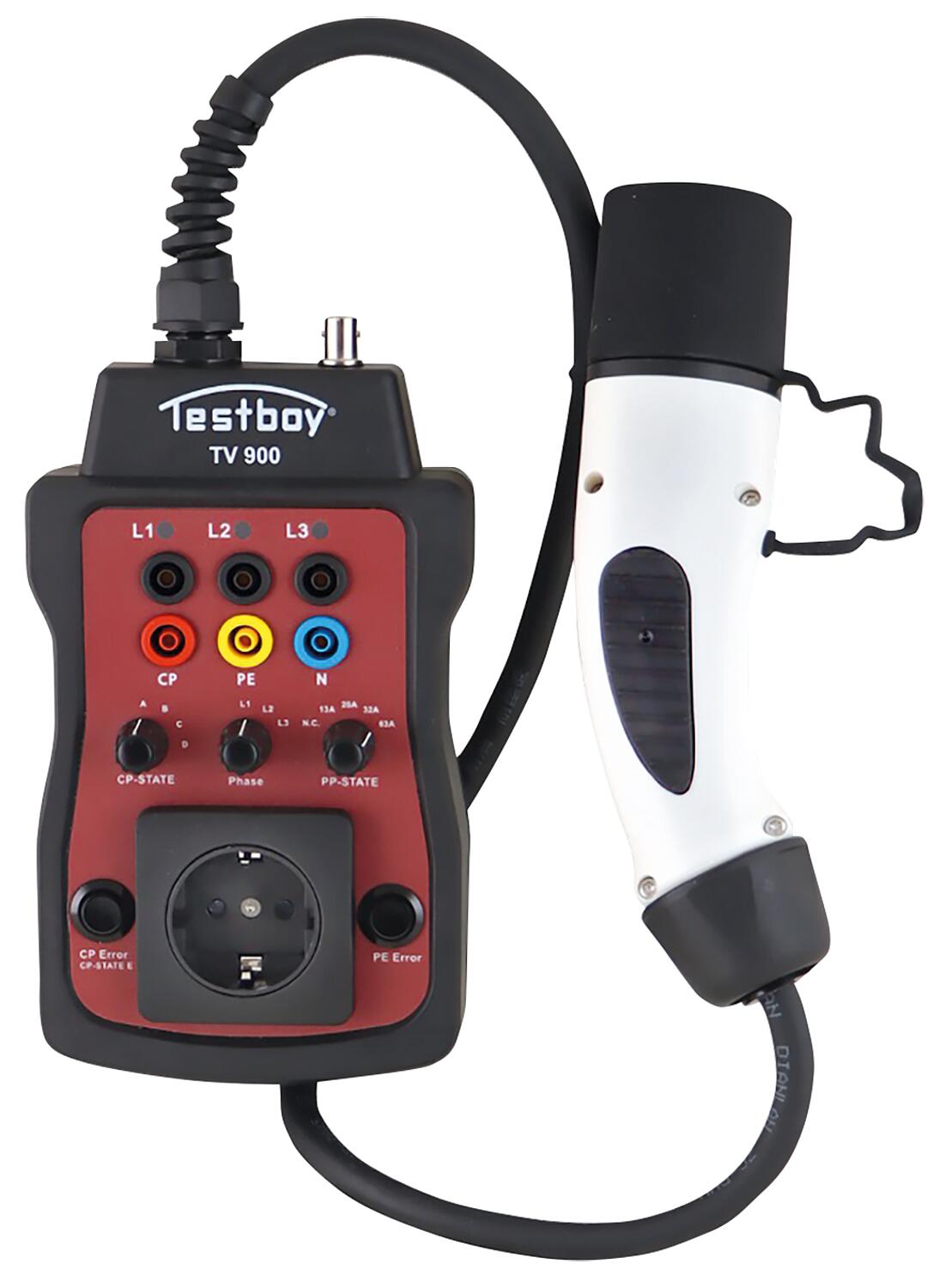

Charging station test adapter Testboy TV 900

Features:

• Suitable for wallboxes with and without cables
• Connection option for installation testers or multimeters
• Direct phase verification via LED display
• Built-in Schuko socket with phase switching
• Complies with the standard DIN EN 618511
• CONTROL PILOT (CP) VEHICLE STATE SIMULATION:
• A (not connected)
• D (charging with ventilation)
• B (connected, but not charging)
• C (charging without ventilation)
• D (charging with ventilation)
• ERROR SIMULATION:
• CP error “E” Communication error PE error (protective conductor interrupted)
• Input voltage:
• Single-phase: up to 230 V, 50 Hz
• 3-phase: up to 400 V, 50 Hz
• Test current: NC, 13 A, 20 A, 32 A, 63 A
• BNC connector: Yes (For use with an oscilloscope)
• Application:
• Testboy has developed the TV 900 measuring adapter to be able to test the Type 2 charging stations standardized in Europe.
• The TV 900 handles communication with the charging station and simulates an electric vehicle.

An installation tester or a multimeter can be connected via the 4mm banana jack.

Therefore, testing with a VDE 0100 tester, such as the Testboy device TV 455, is possible.

• The integrated LEDs indicate whether and how many phases are present. The built-in Schuko socket can be used optionally.

Switch one of the three phases. This allows each phase to be tested individually.

• Scope of delivery:
• Measuring adapter
• Protective case
