- Installation vertically or horizontally.
- For use as a return temperature boost in mixing mode or as a distribution in the buffer supply (70°C or 80°C)
- For optimal condensation protection, installation of the valve in the boiler return line is recommended.

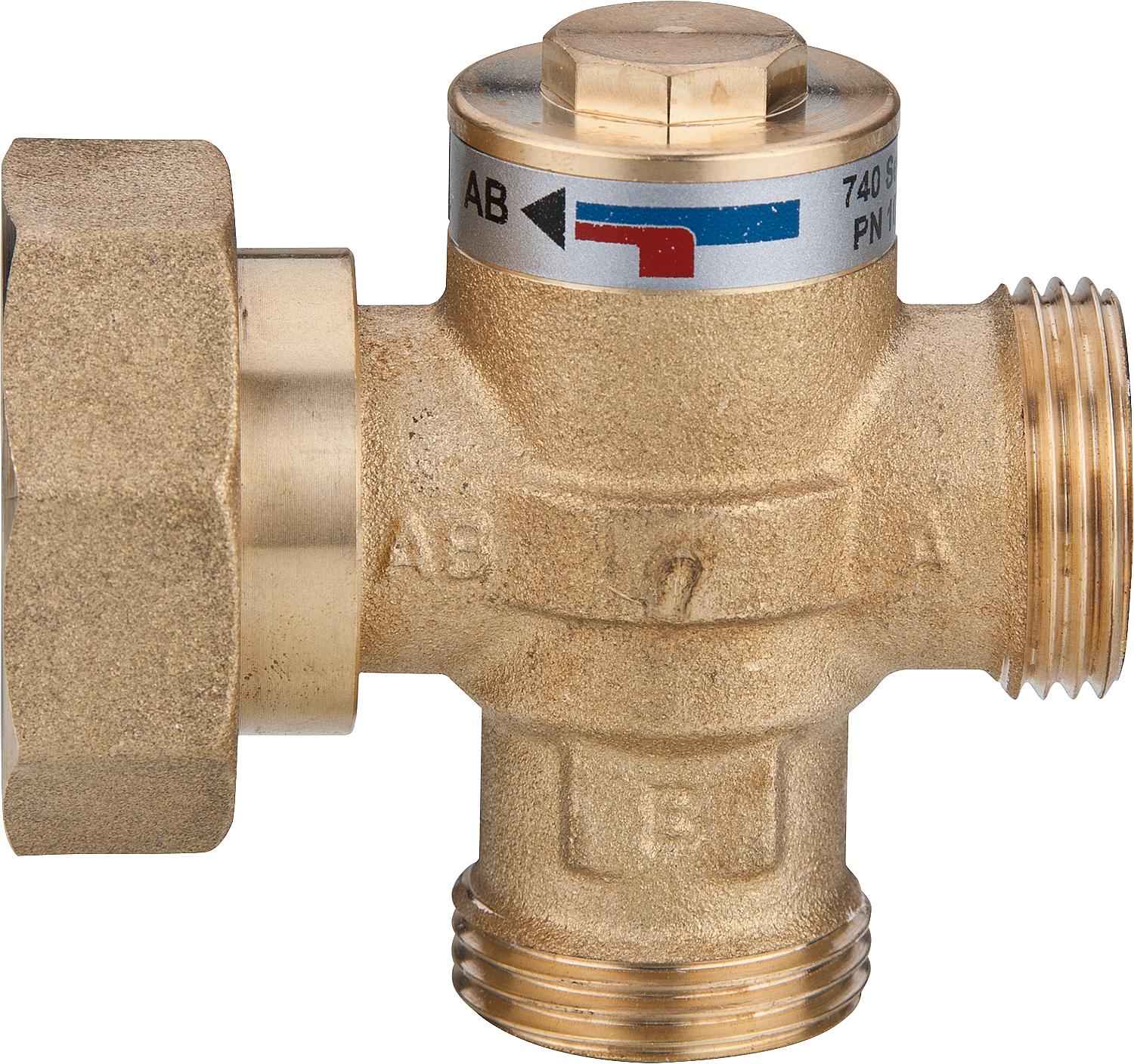

Technical data:
- DN 32 (1 1/4") male thread x DN 40 (2") union nut
- For solid fuel boilers up to 65 kW
- Flow rate: KVS 4.8
- Maximum operating pressure: 10 bar
- Maximum operating temperature: 100°C
- Material: Brass
| Unit price | CHF/piece |
|---|---|
| Target temperature | 60°C |
