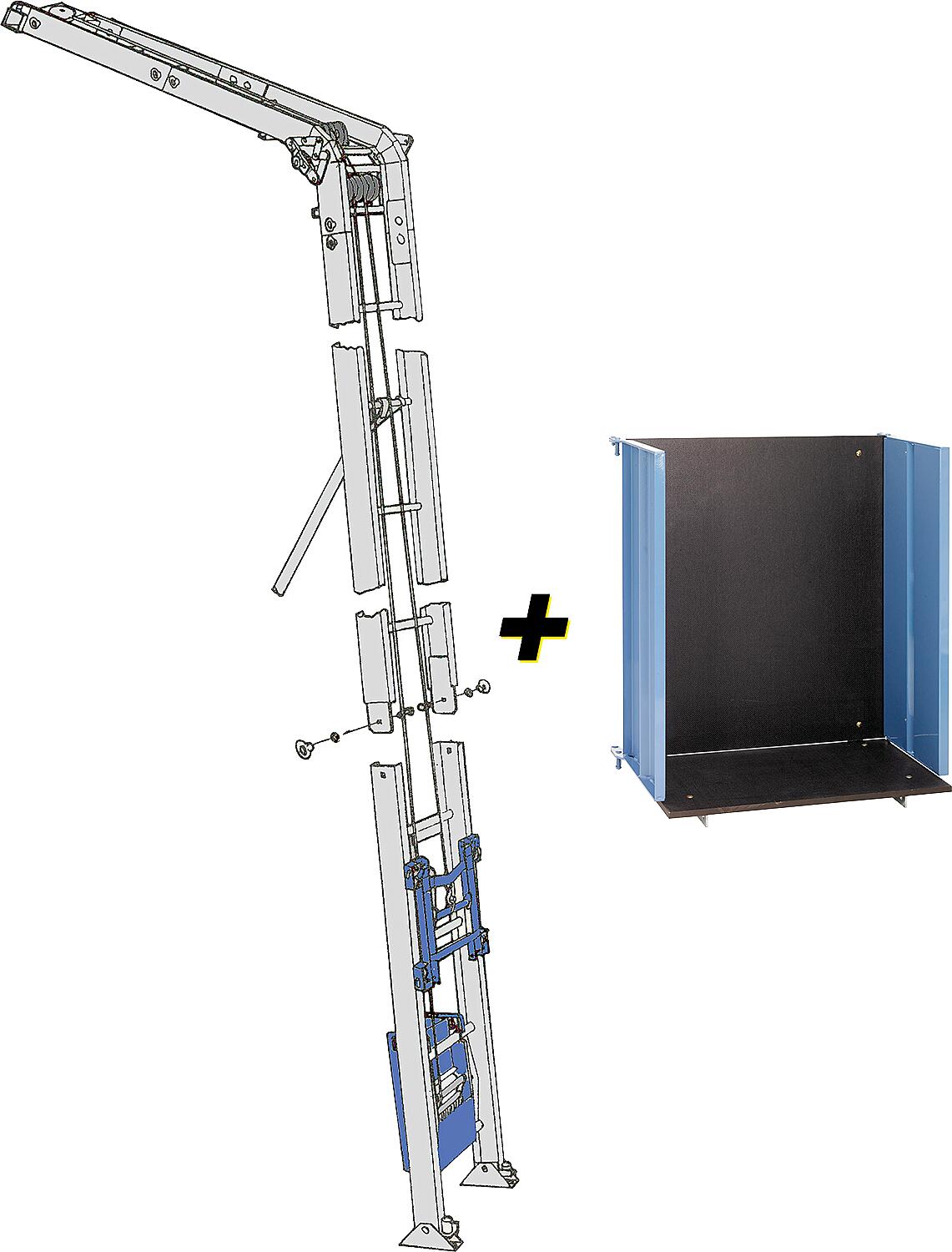

Geda Lift 200 Standard Set freight elevator with universal platform, 02090

• Maximum delivery head (m): 11.5

Consisting of:

1 x Lift

• Load capacity (kg): up to 200
• Electric winch:
• 1 kW, 230 V / 50 Hz, 16 A
• 43 m rope (ø 6 mm) galvanized
• 21 m limit switch cable
• Eyelet hook
• Control unit with emergency stop
• 5 m cable (24 V)
• Lifting speed (m/min): 25
• Speed ​​(rpm): 1350
• Standard sled with rope break protection
• Headboard with pulley
• Foot section (m): 2
• Protection rating: IP44
• Dimensions (L x W x D mm): 2200 x 1450 x 800
• Weight (kg): 56

4 x Aluminum ladder section (m): 2

1 x Aluminum ladder section (m): 1

1 x Aluminum bending piece (m): 0.5

• Continuously adjustable from 20° to 45°

1 x Universal flatbed

• With foldable side guards for safety
• Material: Wood/Metal
• Dimensions (L x W x D mm): 820/1500 x 690 x 69
• Weight (kg): 31
