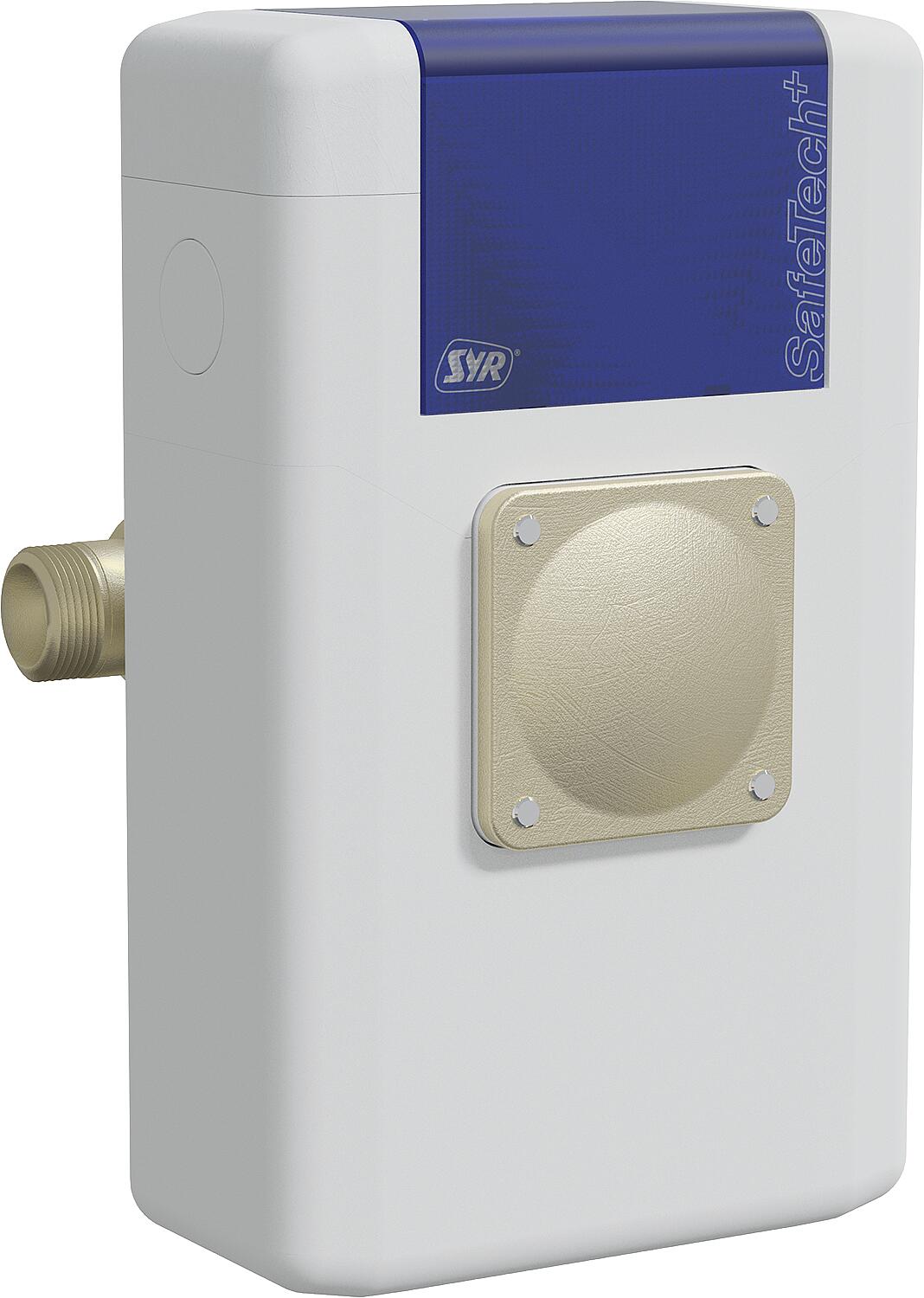

Leak protection SafeTech+ Connect
Leak protection SafeTech+ Connect

• For use with drinking water
• The monitoring electronics of the SafeTech Connect allow leaks to be detected. If the pre-programmed values are exceeded, the water supply is interrupted.
• Protects against water damage and waste
• Vacation monitoring
• With integrated Wi-Fi, control via SyrApp
• Can be combined with one or more SafeFloor Connect floor sensors
Technical data:
• Operating pressure: max. 16 bar
• Operating temperature: 10-60 °C
• Voltage: 12V DC (230V power supply)
• Protection rating: IPX3
• Emergency supply battery: 9V block (6LR61)
• Installation position: Main axis horizontal
• Also suitable for space-saving installation between connection flange and Drufi filter
• Terminal block not included
• Flow rate (1.0 bar ∆p):
- DN 20: 5.2 m3/h
- DN 25: 5.7 m³/h
- DN 32: 6.0 m3/h
| Brand | SYR® |
|---|---|
| Manufacturer part number | 2422.00.010 |
| Unit price | CHF/piece |
| EAN | 4017905284783 |
