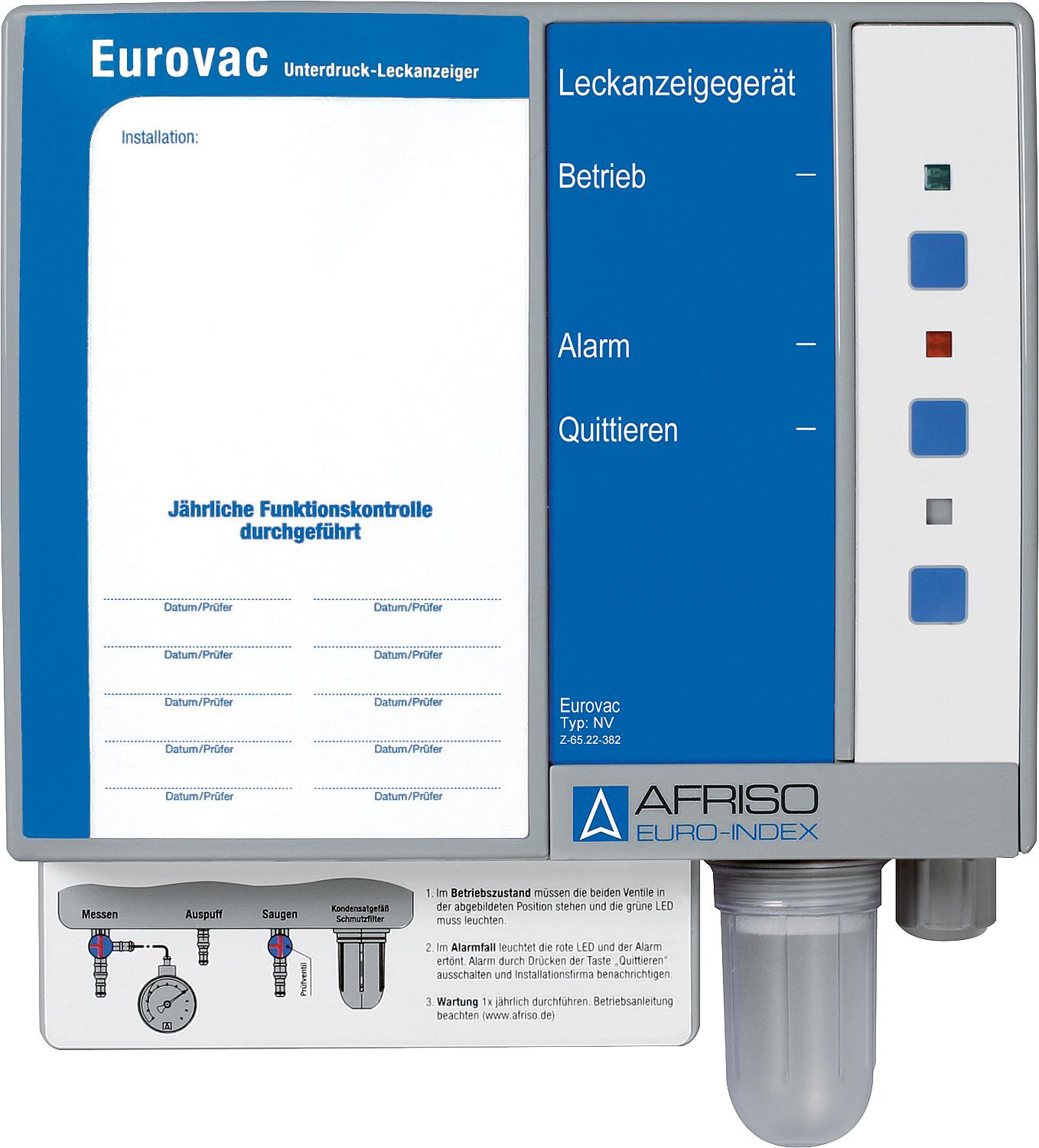

Eurovac NV Leak Detection Device

• For monitoring double-walled and single-walled containers with an inner lining
• With visual/audible alarm, acknowledge button and switching output
• Wide voltage range (AC 100–240 V), usable worldwide
• Includes a vacuum pump, a pressure switch, a filter, and three hose connections for pneumatic connection to the tank's monitoring chamber.
• The connectors are universally designed for 4 mm and 6 mm hoses and come in red, white, and green.
• The sintered filter in the condensate container indicates the current level of contamination and can be easily and quickly replaced from the outside if necessary.
• Possesses the general building authority approval Z65.22382.

Technical data:

• Wall-mounted enclosure made of impact-resistant plastic (ABS)
• Ambient temperature range: 5°C to +50°C
• Supply voltage: AC 100-240 V
• Rated power: < 10 W
• Switching output relay contact: 1 potential-free changeover contact
• Contact rating: max. 250 V, 2 A, resistive load
• Operating pressure in the monitoring room: 60 to 85 mbar
• Dimensions (W x H x D): 202 x 230 x 70 mm
