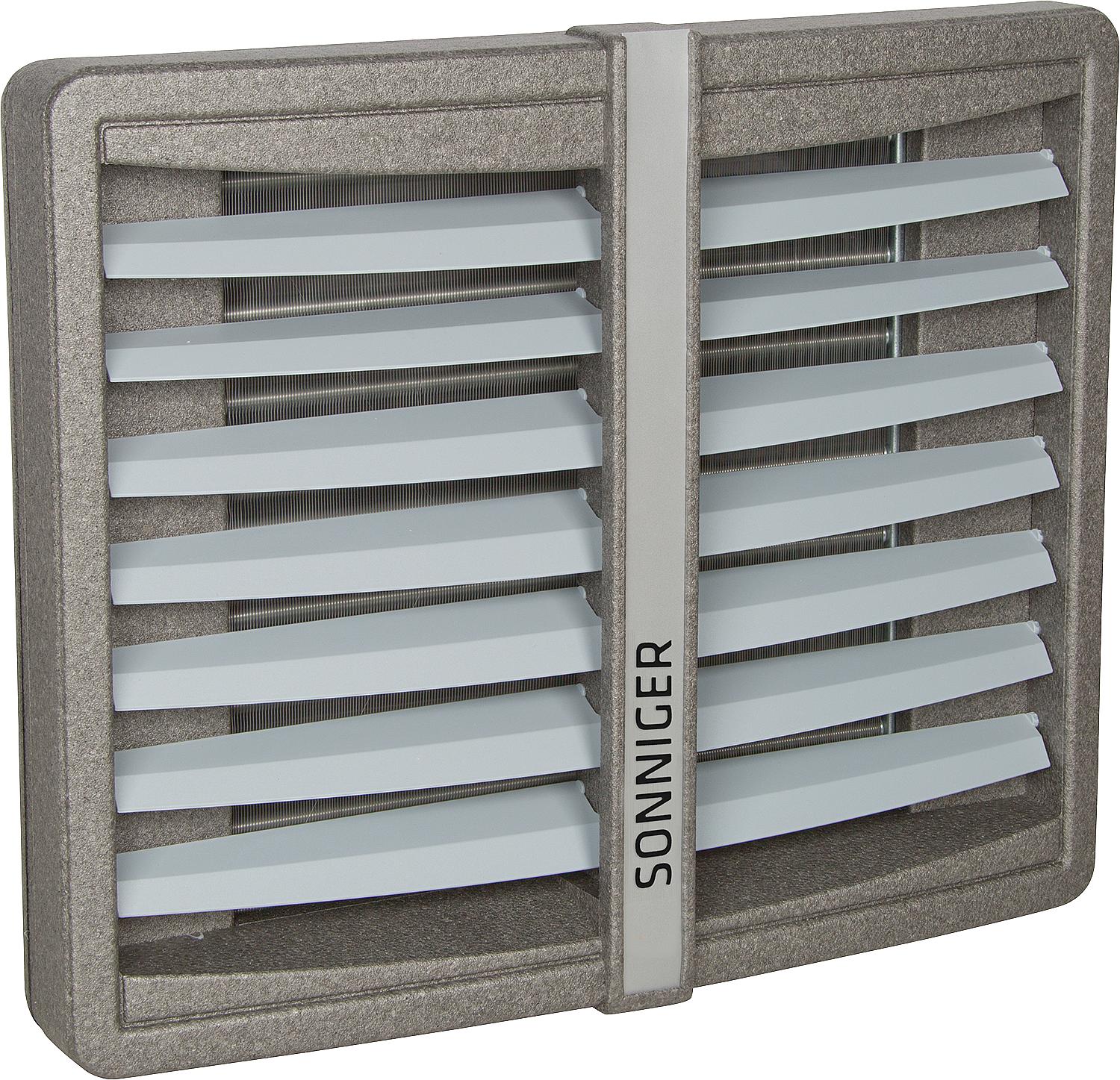

• For heating workshops, halls, department stores, etc.
• Particularly suitable for low temperatures, due to a special geometry of the fins in the heating element
• Copper heat exchanger with aluminum fins
• 3-stage axial fan with protective mesh to prevent direct contact with the fan
• Adjustable slats
• Rotatable mounting bracket with mounting angles of 0°, 30° or 60°
• Easy and quick wall or ceiling mounting
• Lightweight and compact design
• Housing made of expandable polypropylene EPP
• Includes mounting bracket
Technical data:
• Connections: DN 20 (3/4") male thread
• Operating voltage: 230 V / 50 Hz
• Current CR: 1.08 A
• Current CR MAX: 2.2 A
• Motor power CR: 0.25 kW
• Motor power CR MAX: 0.50 kW
• Protection class: IP54
• Dimensions (H x W x D) CR: 576 x 680 x 375 mm
• Dimensions (H x W x D) CR MAX: 718 x 780 x 385 mm
| Brand | Sunny |
|---|---|
| Manufacturer item number | WA0016 CR1 |
| Unit price | CHF/piece |
| Heating capacity [kW] at 90°/70°C | 10-23 |
| Weight [kg] | 10.8 |
| Type | CR1 |
| Maximum air range [m] | 24 |
| Air volume flow [m³/h] | 3900 |
