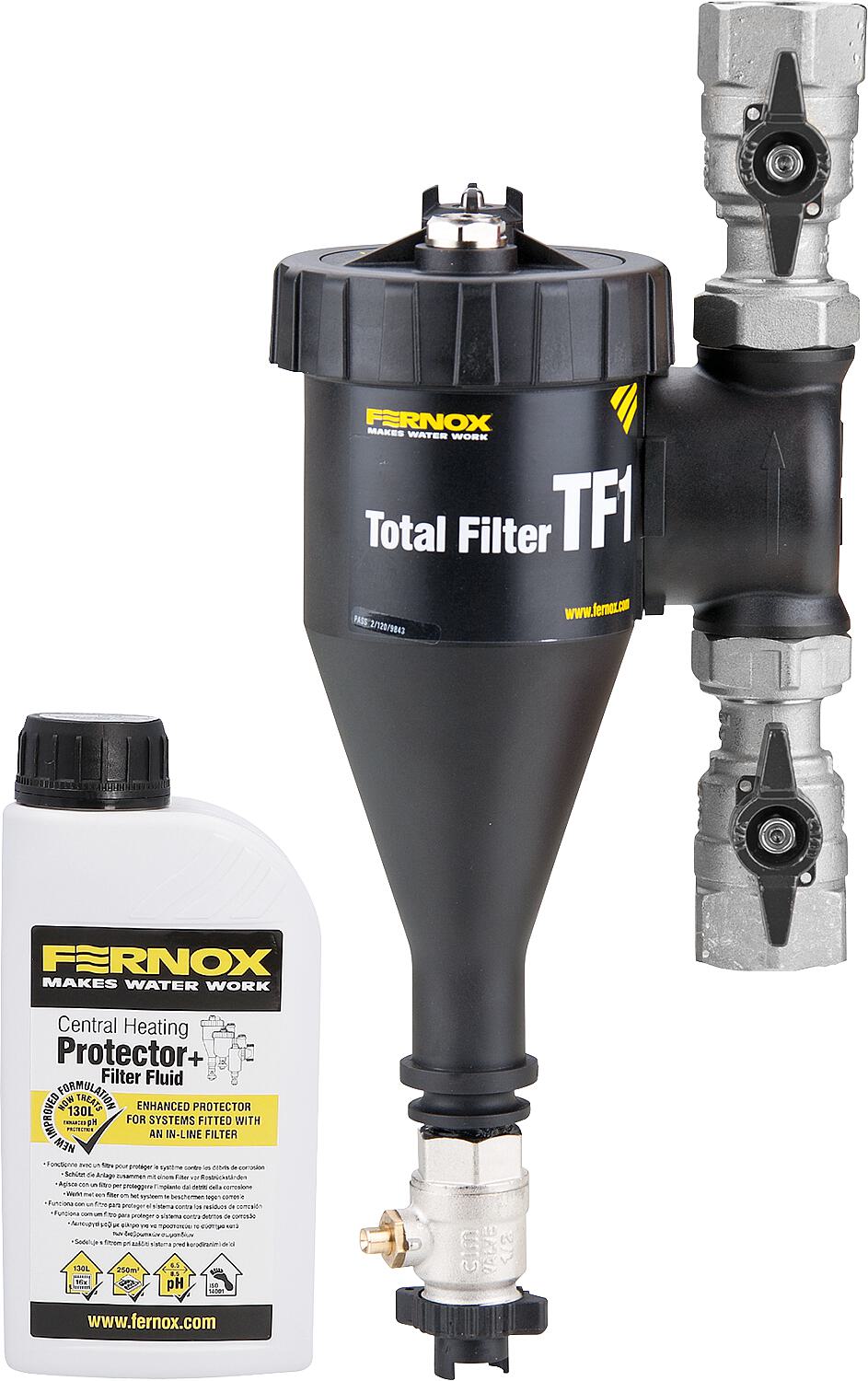

Magnetite and sludge separator TF1, 22mm clamp connection

• Removes magnetic and non-magnetic contaminants
• The TF1 is easy, quick, and self-explanatory to install. It can be installed directly into the pipe without any modifications or adapters.
• Can be installed horizontally and vertically
• The water flow is not affected, even when the TF1 is full.
• The TF1 works with any boiler or heating system.
• Compatible with condensing boilers with integrated pumps
• including ball valves
• Scope of delivery:
• Sludge separator
• Protector F9, 500 ml (sufficient for 130 l of heating water)

Technical data:

• Dimensions: ø 100 x 300 mm
• Operating temperature: max. 150°C
• Flow rate: max. 50 l/min.
