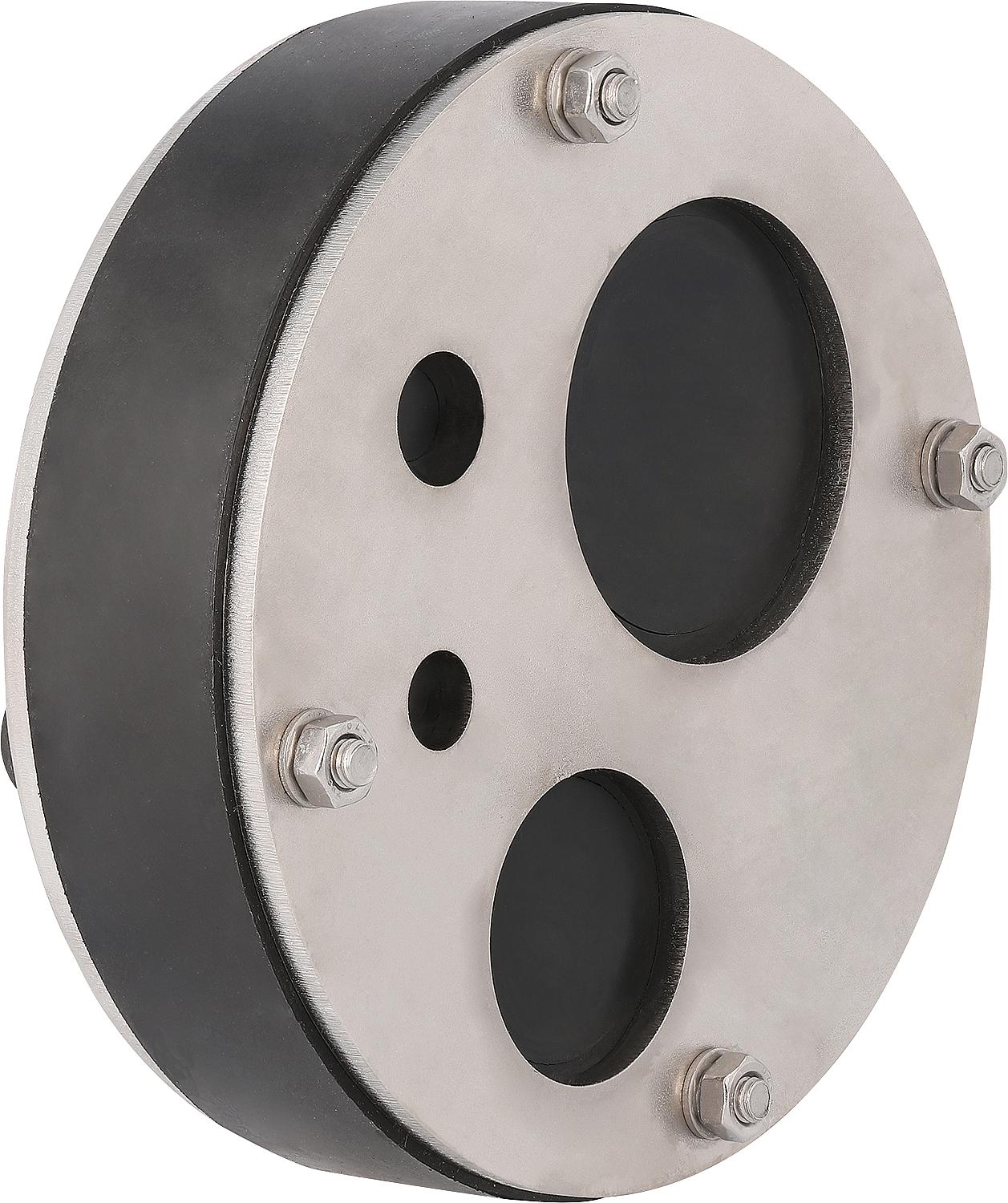

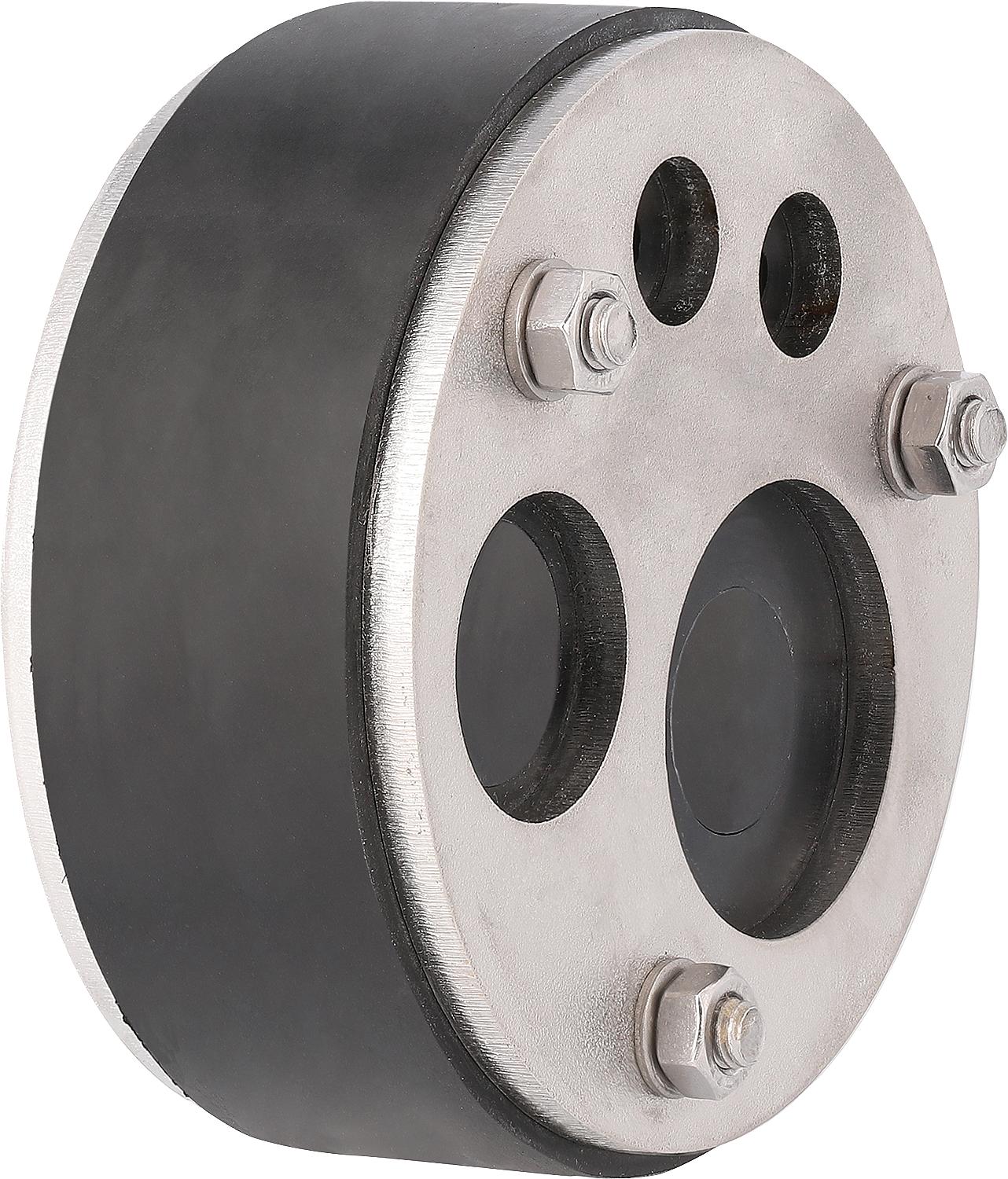

- Secure sealing of hoses, cables and a feed line in rainwater systems against drafts and backflow water in a conduit.
- Suitable for core drilling and protective tubes with inner diameters of 100 and 150 mm
- Corrosion-resistant due to V2A stainless steel construction
- Automatic sealing of all unnecessary penetrations via perforated blanking plates.
- Easy installation, even for retrofitting, thanks to the option of screwing from one side.
- For installation in standard PVC pipes
- Sealing rubber thickness: 30 mm
- Stainless steel thickness: 5 mm
- The 149 mm version is supplied with an adapter for DN 50 feed pipe.
| Execution [mm] | 5-10/6-10/19-22/31-34 |
|---|---|
| Manufacturer part number | 4-023-23722 |
| Unit price | CHF/piece |
| Outer diameter [mm] | 99 |
