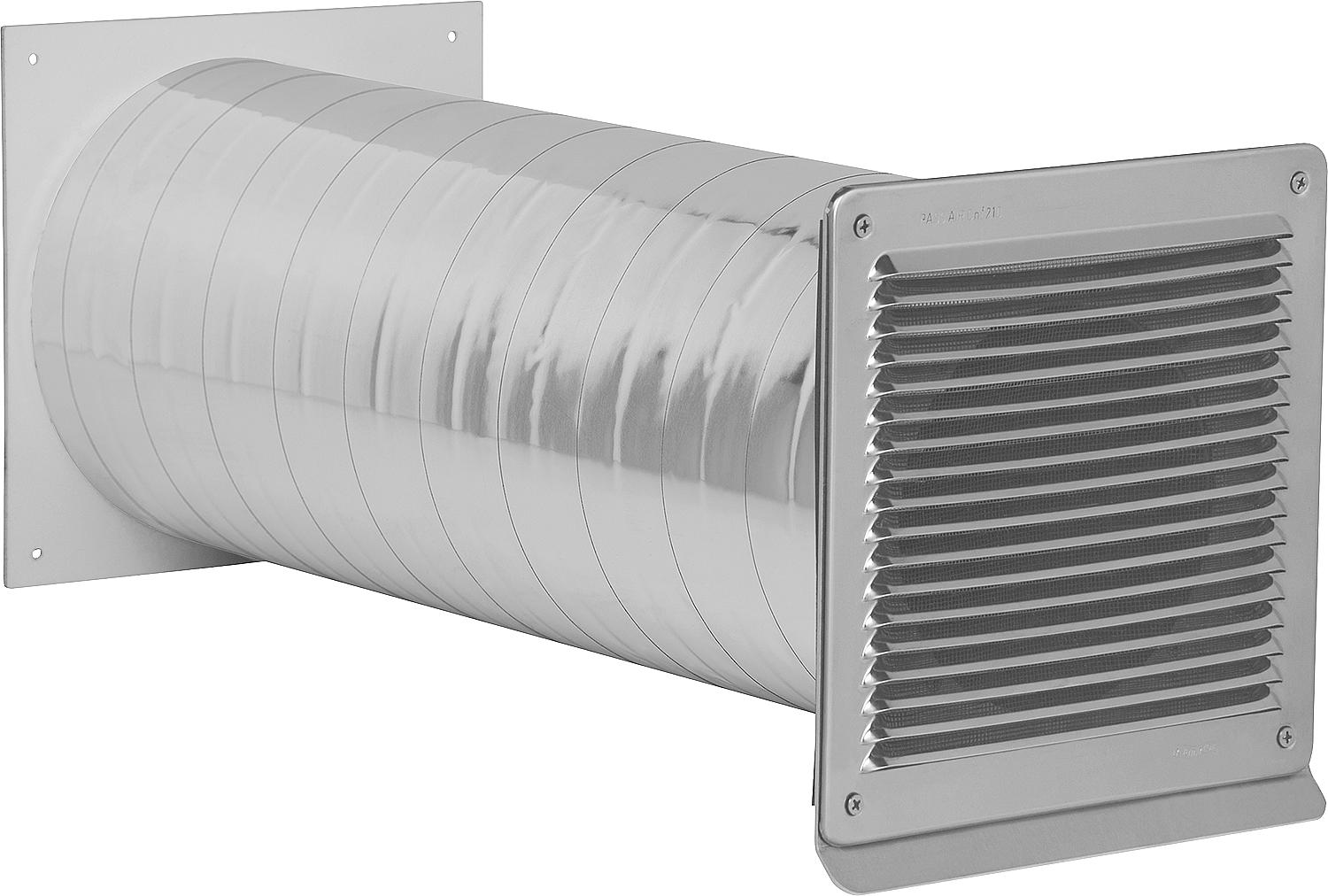

• Aluminium-laminated, diffusion-tight pipe made of foamed polyethylene for versatile use in ventilation technology, e.g. as an exhaust and outdoor air system, or as a supply and exhaust air pipe in controlled mechanical ventilation systems, heat pumps, kitchen exhaust, etc.
• Tight and simple connection via connectors with lip seal and aluminum adhesive tape
• High thermal and sound insulation
• High level of condensation protection
• Ozone and UV resistant
• Complies with the requirements of DIN 1946-6, VDI 6022
Technical data:
• Insulation thickness: 20 mm
• Foam tube material: extruded PE, biobutane
• Lamination material: Aluminum/PET
• Thermal conductivity: 0.038 W/mK
• Operating temperature: -30°C to +80°C
• Fire class: DIN 4102-1, flame-retardant
• Can be used for supply or exhaust air
• Scope of delivery:
- Insulation tube, length: 500 mm
- Cover: Polished V2A stainless steel
- Inner panel: plastic
- Connectors with collar
| Brand | Isoflexa |
|---|---|
| Manufacturer part number | 73000-3-9-125 |
| Unit price | CHF/piece |
| Nominal diameter [mm] | 125 |
