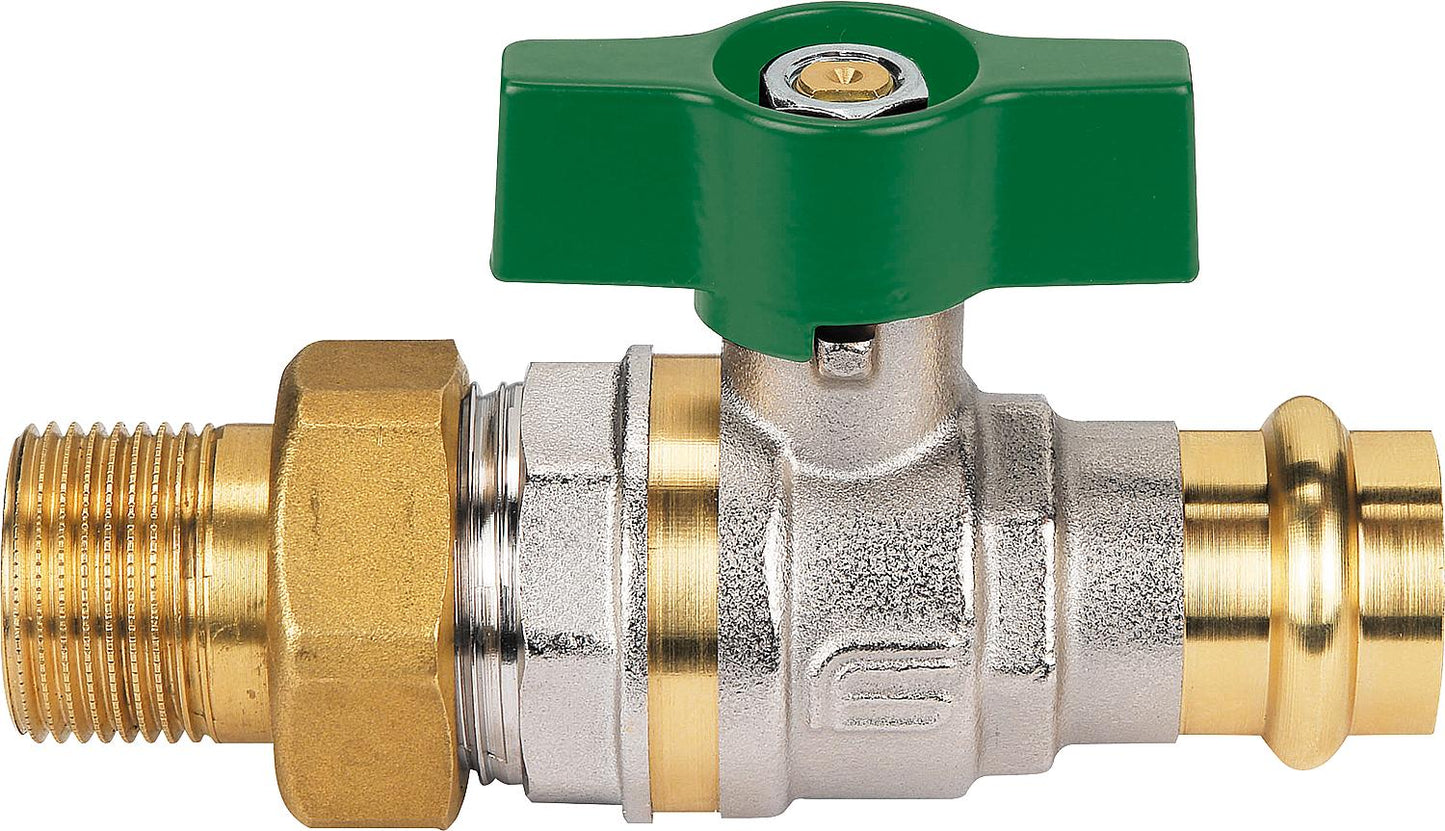

Brass ball valve screw connection press fitting with wing handle 15 x 1/2"

• Suitable for installations in the areas of drinking water, industrial and civil heating.
• Installation on copper pipes according to the standard UNI EN 1057
• The “Presstige” system enables quick cold installation through the use of a V or M press contour.
• Operating pressure: 15 mm x 28 mm, max. 40 bar

35 mm max. 25 bar

• 42 mm 54 mm max. 16 bar
• Temperature range: -15°C to +120°C
• Body: Brass
• Ball: Chrome-plated brass
• Seal: Teflon (PTFE)
• Passage: Full
• For DVGW approval, ball valves are tested with an operating pressure of 10 bar.
• This is a regulation of the DVGW, worksheet W5701 and DIN EN 13828.

Our ball valves comply with the current ISO 7 standard. Naturally, the maximum pressure ratings specified in the technical data apply.

• With aluminum wing handle
