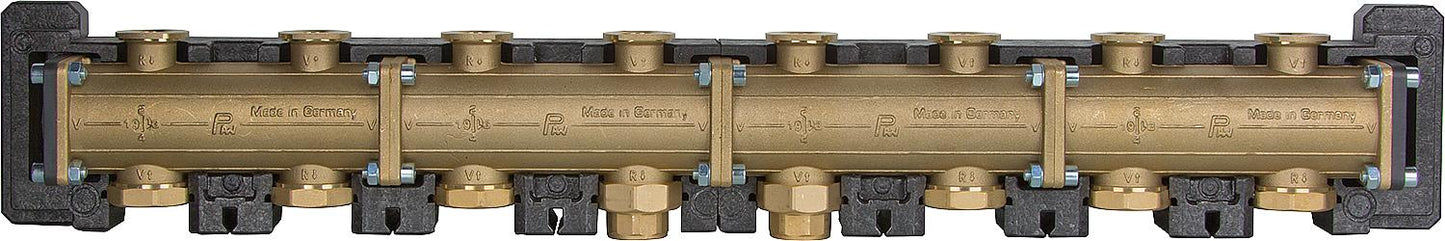

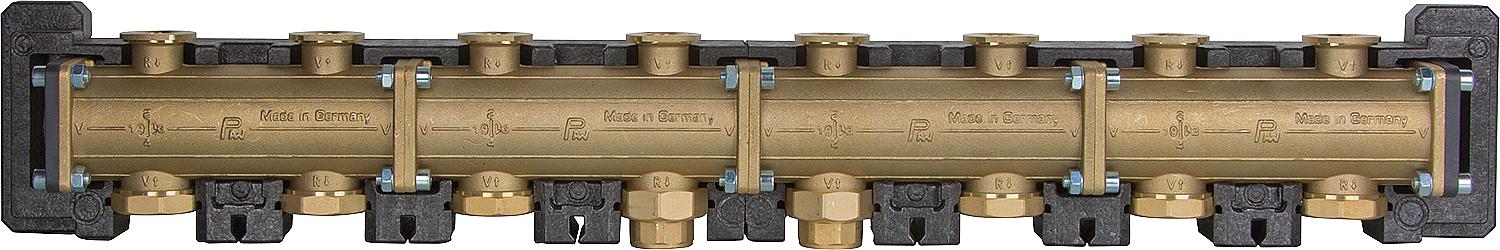

Modular distributor 2-way DN32 for 2-3 heating groups DN32 (1 1/4")

modular design

• fully pre-assembled
• Multiple boiler connections possible for higher outputs

Technical data

• Pressure: max. 5 bar
• Temperature: max. 110°C
• Fittings: Brass
• Seals: EPDM/NBR
• Insulation according to EnEV: EPPH half-shells
• Axle spacing: 125 mm

for power outputs up to 150 kW

(per boiler connection)

• extremely low resistance,

free passage (Ø = 50 mm)

• Kvs value: 20.6

Connections

• for heating circuits (above):

DN32 (1 1/4") for DN50 (2") nut

• for boilers (bottom, flow and return):

DN50 (2") male thread or DN32 (1 1/4") female thread, flat sealing, other connections sealed with plugs

• laterally:

2x DN25 (1") female thread, sealed with plugs, for safety group and expansion vessel

Dimensions

• Installation height: 125 mm
• Insulation height: 150 mm
