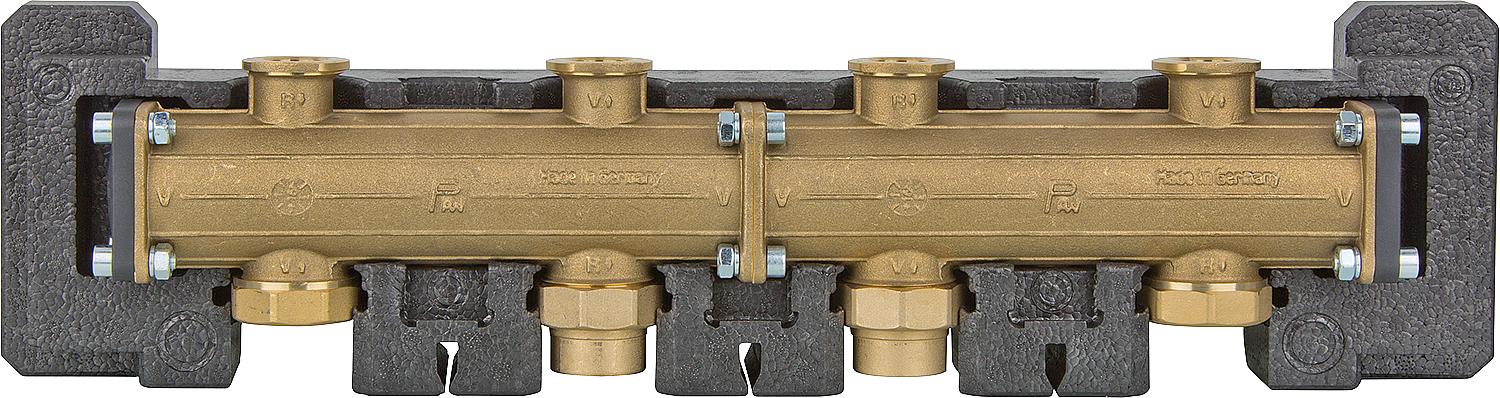

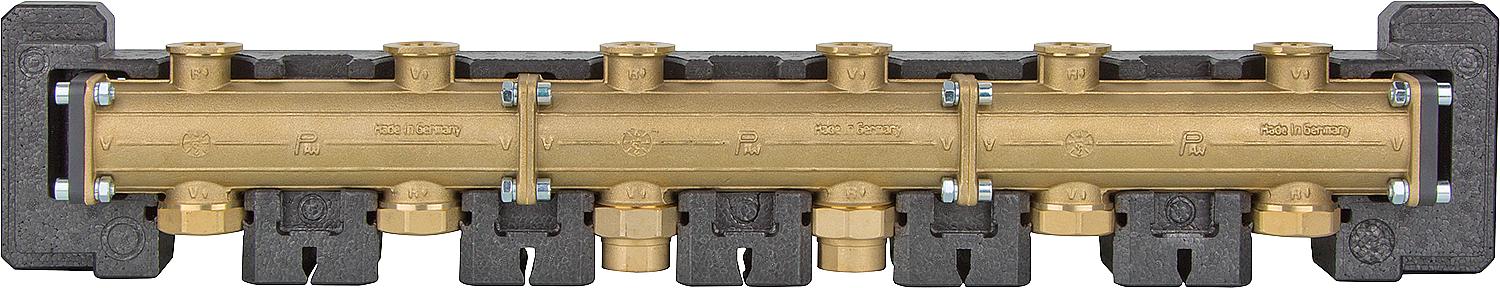

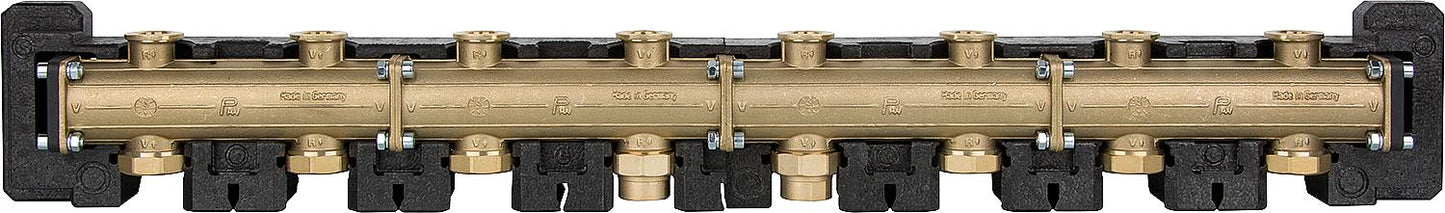

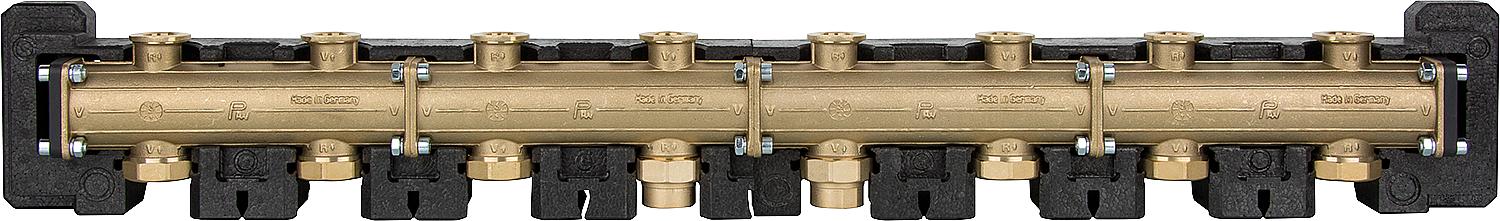

Modular distributor DN25(1") 2-way, up to 3 heating circuits can be connected

modular design

• fully pre-assembled
• Multiple boiler connections possible for higher outputs

Technical data

• Pressure: max. 5 bar
• Temperature: max. 110°C
• Fittings: Brass
• Seals: EPDM/NBR
• Insulation according to EnEV: EPPH half-shells
• Axle spacing: 125 mm

for power outputs up to 80 kW

(per boiler connection)

• extremely low resistance, free passage (Ø = 36 mm)
• Kvs value: 12.5

Connections

• for heating circuits (above):

DN25 (1") flange for DN40 (1 1/2") nut

• for boilers (bottom, flow and return):

DN40 (1 1/2") male thread or DN25 (1") female thread, flat sealing, other connections sealed with plugs

• laterally:

2x DN20 (3/4") female thread, sealed with plugs,

for safety group and expansion vessel

Dimensions

• Installation height: 100 mm
• Insulation height: 128 mm
