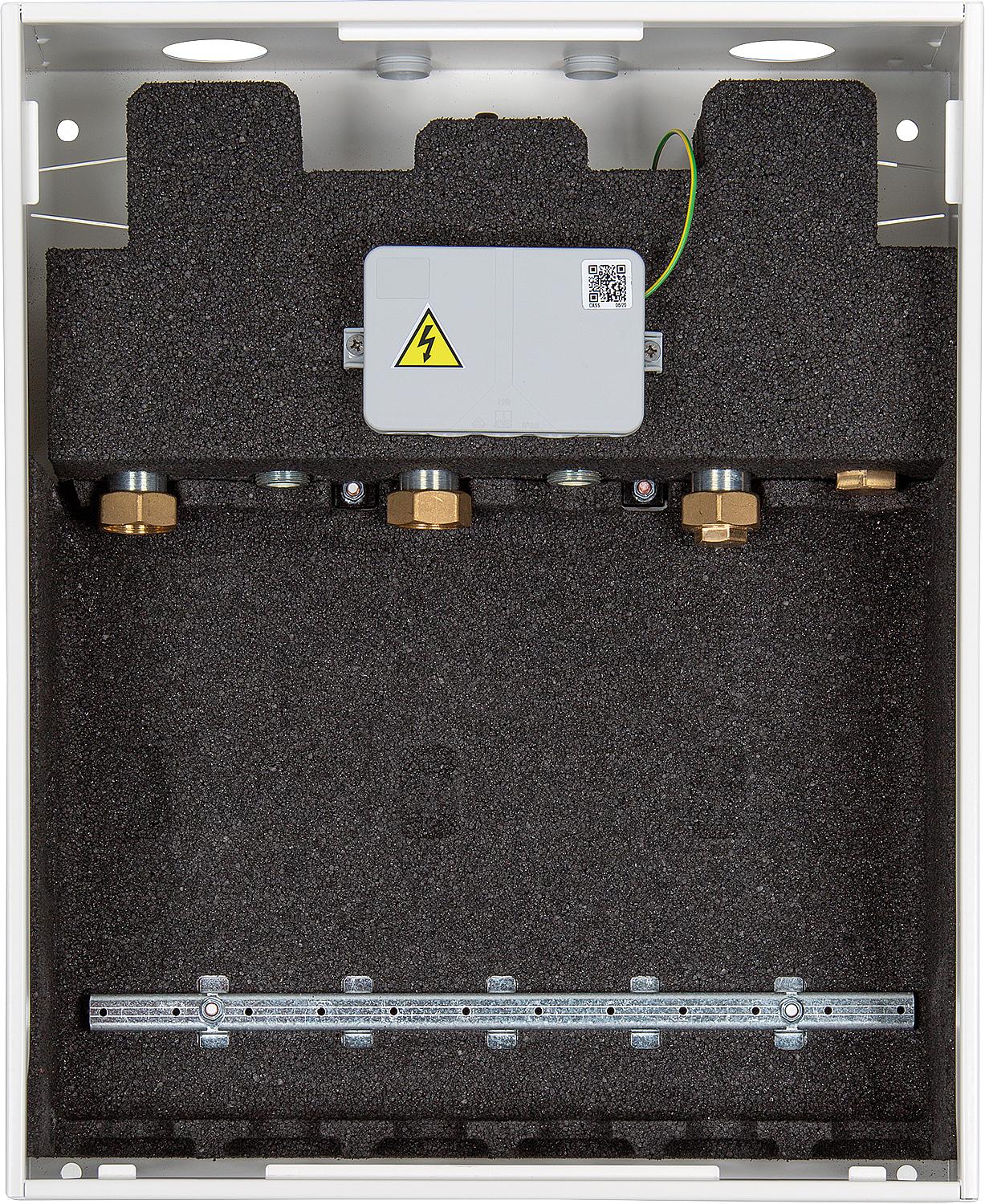

- Modular distribution box with very compact dimensions
- Modular construction
- For applications with up to 3 heating circuits
- Distribution cabinet with lock, lockable
- Ventilation slots to prevent heat build-up
- Manifold for 3 heating circuits
- For flush and surface mounting
- With junction box for electrical connection
- With insulation
- Scope of delivery does not include heating circuit modules.
Technical data:
- Maximum operating temperature: 95°C
- Maximum operating pressure: 6 bar
- Maximum power: 50 kW at ∆T= 20 K
- Dimensions (W x H x D): 450 x 550 x 160 mm
- Axle dimension of heat generator: 270 mm
- Heating circuit axle dimension: 70 mm
- Heat generator connection: DN 25 (1") male thread, flat sealing
- Heating circuit connection: DN 20 (3/4") internal thread
- Distributor material: Steel
- Material of distribution cabinet: steel, painted
- Color: White RAL 9010
- Insulation: EPP
| Version | With hydraulic separator |
|---|---|
| Unit price | CHF/piece |
