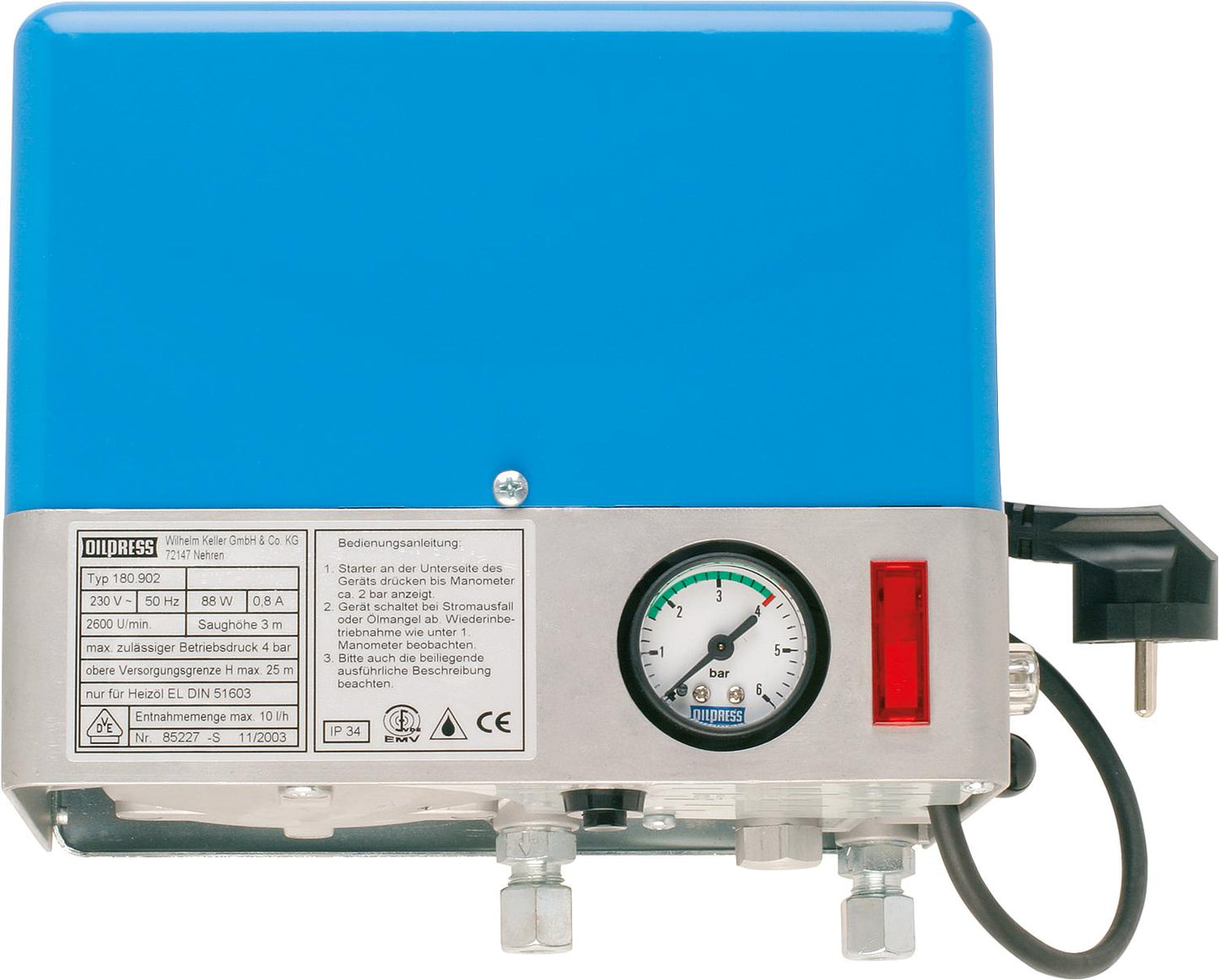

Oil pressure accumulator unit Oilpress type 180 without return

• Tested according to DIN 125141
• Delivery pressure: limited to approx. 4 bar by a pressure relief valve
• Delivery head: 15 m (factory set)
• Suction height: approx. 3 m
• Pipe connection: Cutting ring fitting 8 x 1 mm
• Dimensions (H x W x D): 20 x 245 x 150 mm
• Weight: approx. 6 kg
• Filter is built in

• Motor: 230 V, 50 Hz / 88 W
• Flow rate: approx. 22 l/h
• Withdrawal quantity: max. approx. 10 l/h
• approx. 100 kW burner output

No backflow preventer may be installed in the suction line!

According to TRwS 791, oil pumping units that are installed in the oil line must be equipped with a leak detection system!
