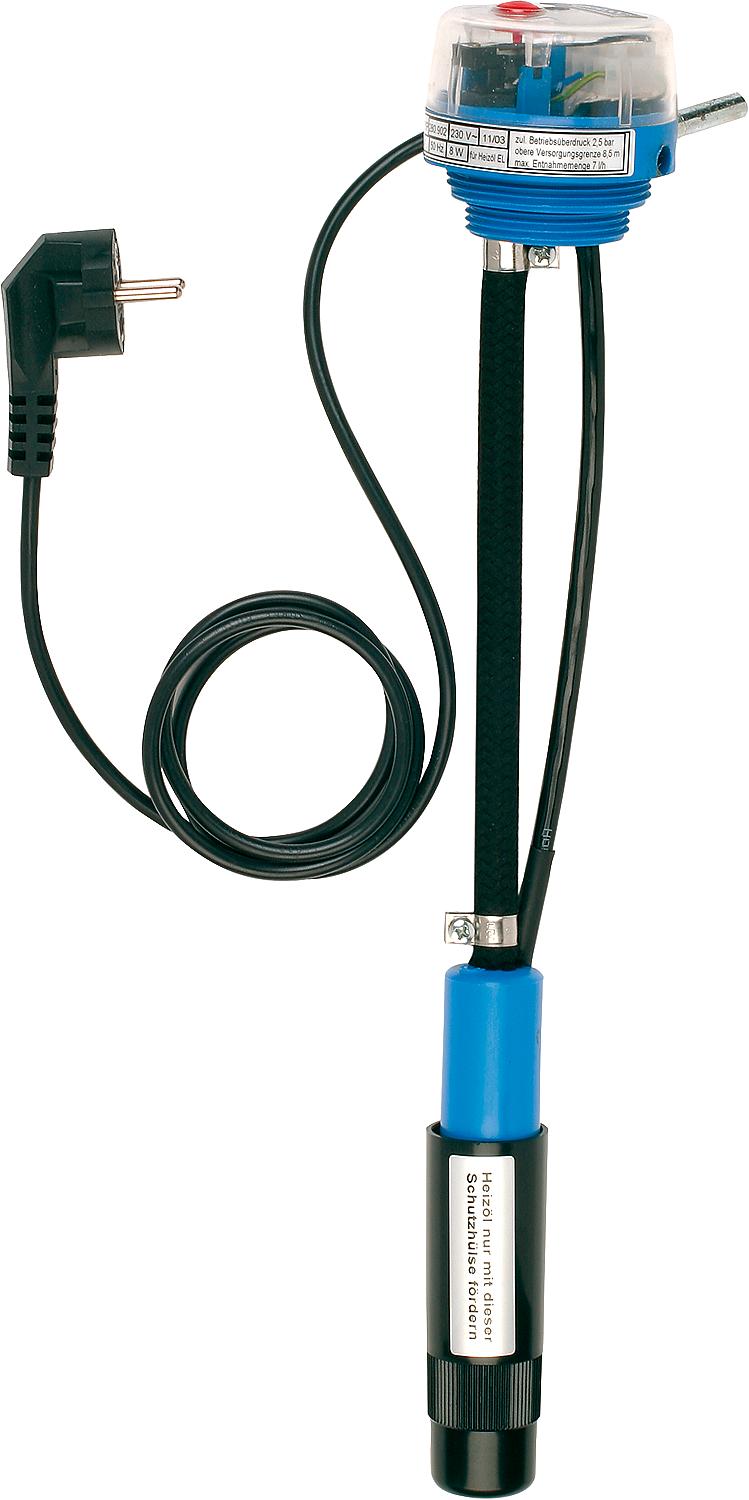

Oil supply pump Oilpress type 280

• Power supply: 230 V 8 W ~ 50 Hz
• Back pressure: approx. 2 bar
• Pipe connection: 8 mm
• Weight: approx. 1 kg
• Tested according to DIN EN 125141
• Filter is built-in; shorten hose length if necessary.

• To supply one or more oil furnaces from a single tank
• Automatic shutdown via safety device (pressure switch) when pressure drops below approx. 0.8 bar
• Maximum extraction rate at a delivery head of 8 m: approx. 7 l/h
• Dimensions: ø 36 mm, Length: 1580 mm

According to TRwS 791, oil pumping units that are installed in the oil line must be equipped with a leak detection system!
