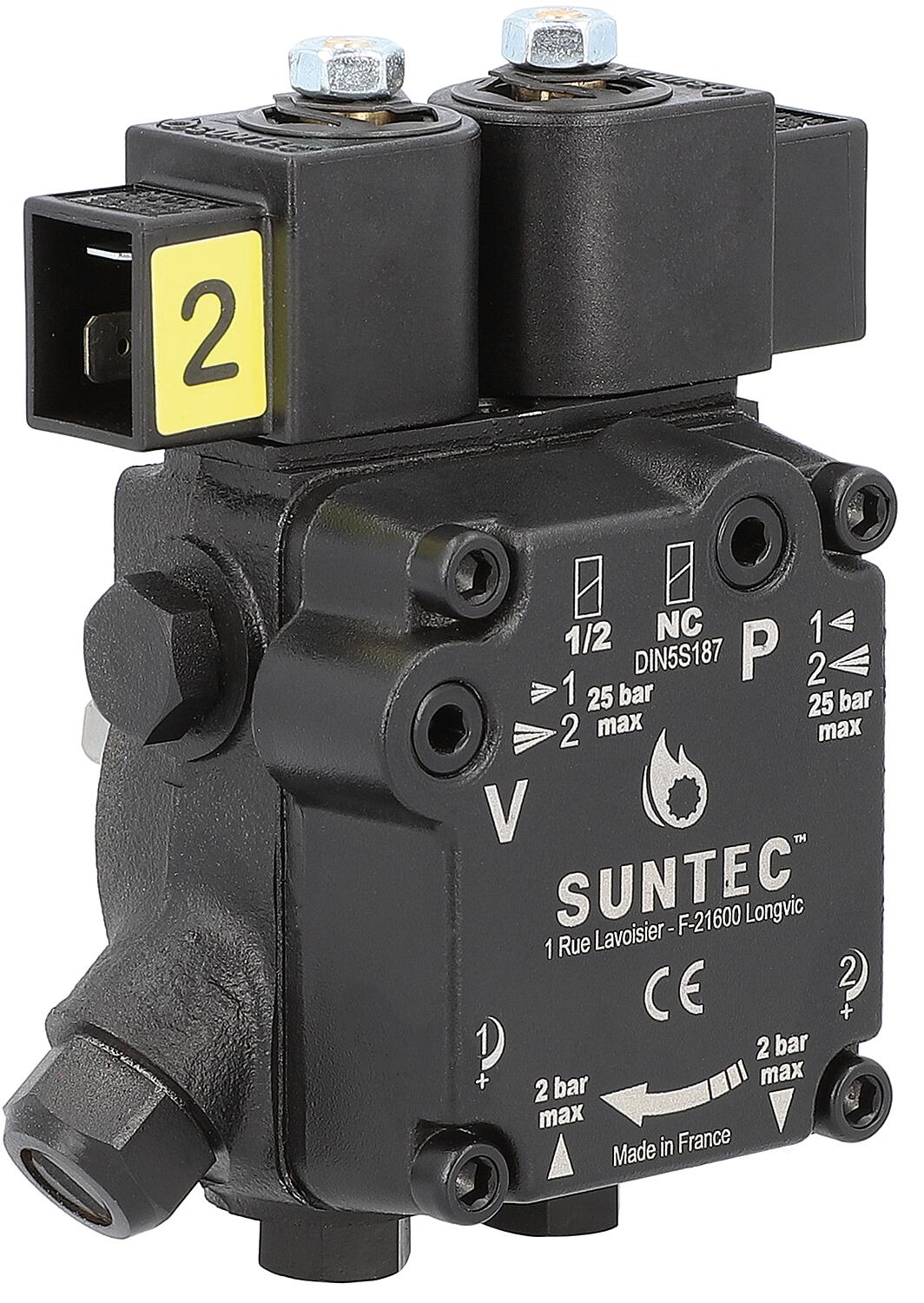

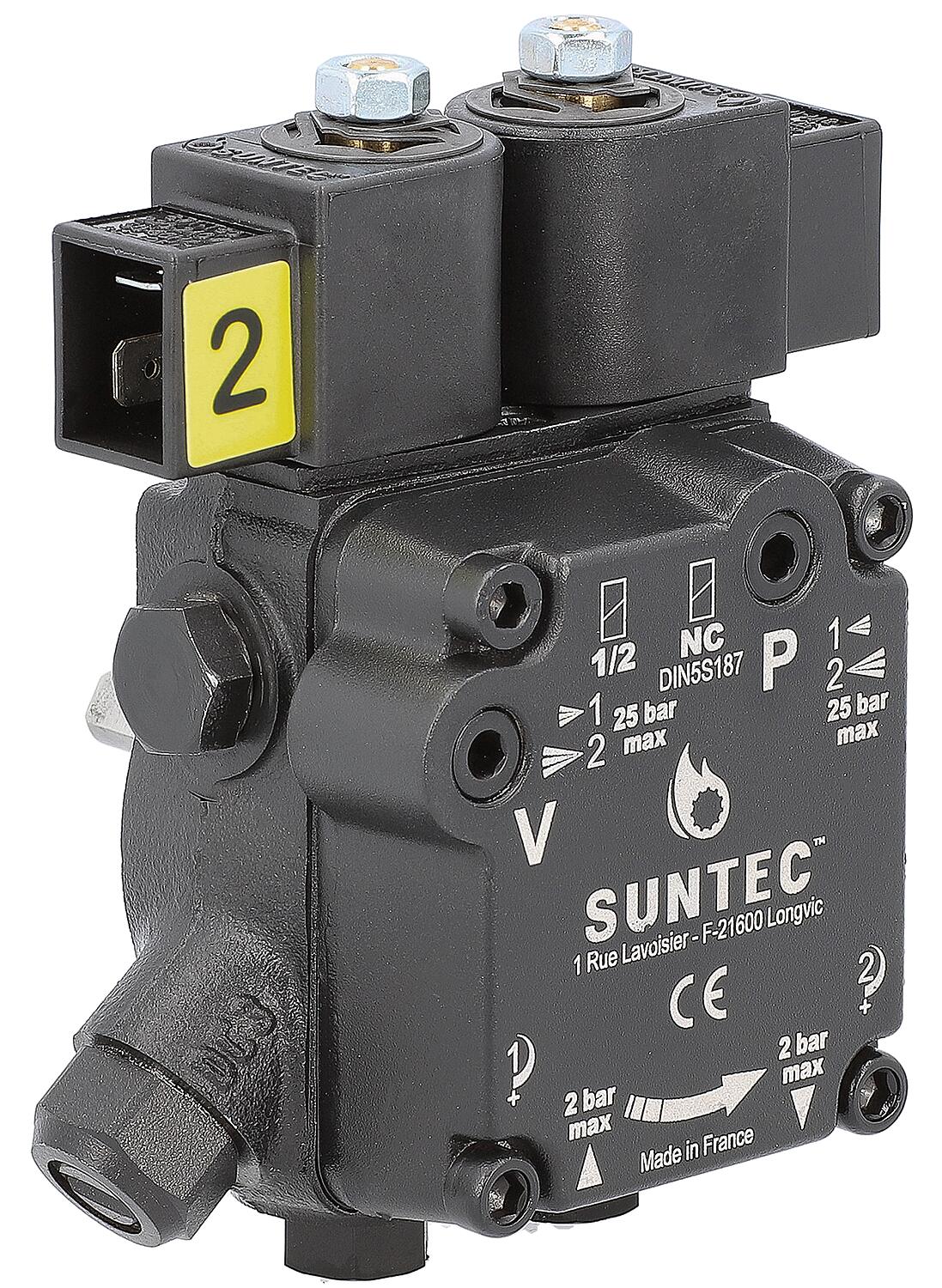

Oil burner pump Suntec ATUV45L9860

• Shaft: double-surface (suitable for single and double-surface couplings)
• Nozzle outlet right and left: DN 6 (1/8")
• Suction/return line connection: DN 8 (1/4")
• 2-stage
• Integrated LED function
• Oil pressure stage 1: 212 bar
• Oil pressure stage 2: 1225 bar
• With two solenoid valves 220 V/50 Hz
• Suitable for B10 (10% biogenic content)

• This oil burner pump can replace most two-stage pumps, including the majority of SUNTEC types AT245, AT2V45, ATE245, and ATE2V45, as well as types AT255, AT2V55, ATE255, and ATE2V55 up to a nozzle size of 5 GPH.

Exchange list

Suntec AT2, ATE2 / Suntec ATUV

AT2 ATUV Remarks

AT2 45 A 9547 xP 0500/0700 ATUV 45 R 9861 6P 0700

AT2 45 A 9574 xP 0500/0700 ATUV 45 R 9861 6P 0700

AT2 45 AK 9507 xP 0500/0700 ATUV 45 R 9861 6P 0700

AT2V 45 A 9647 xP 0500/0700 ATUV 45 R 9861 6P 0700

• AT2 45 B 9506 xP 0500/0700 ATUV 45 R 9861 6P 0700 + Intermediate flange ø32 ø54 (Ref. 3719003) 26 005 09

AT2 45 BK 9601 xP 0500/0700 ATUV 45 R 9861 6P 0700

AT2 45 BK 9601 xP 0600 ATUV 45 R 9861 6P 0700 + Replacement MV coils (Ref. 3713824)

AT2V 45 B 9651 xP 0500/0700 ATUV 45 R 9861 6P 0700

AT2 45 C 9541 xP 0500/0700 ATUV 45 L 9860 6P 0700

AT2 45 C 9543 xP 0600 ATUV 45 L 9860 6P 0700 + Replacement MV coils (Ref. 3713824)

AT2 45 C 9543 xP 0500/0700 ATUV 45 L 9860 6P 0700

AT2 45 C 9563 xP 0500/0700 ATUV 45 L 9860 6P 0700 + nozzle connection (Ref. 3723838)

• + Inlet and return connections G1/4G1/8 (Ref. 3729745) 82 001 30

AT2 45 C 9594 xP 0500/0700 ATUV 45 L 9860 6P 0700

AT2V 45 C 9602 xP 0500/0700 ATUV 45 L 9860 6P 0700 + nozzle connection (ref. 3723838)

• + Inlet and return connections G1/4G1/8 (Ref. 3729745) 82 001 30

AT2V 45 C 9604 xP 0500/0700 ATUV 45 L 9860 6P 0700

AT2V 45 C 9616 xP 0500/0700 ATUV 45 L 9860 6P 0700

• AT2 45 D 9513 xP 0500/0700 ATUV 45 L 9860 6P 0700 + Inlet/return and nozzle connections from the old pump

AT2 45 D 9538 xP 0500/0700 ATUV 45 L 9860 6P 0700

AT2 45 D 9544 xP 0500/0700 ATUV 45 L 9860 6P 0700

• AT2 45 D 9555 xP 0500/0700 ATUV 45 L 9860 6P 0700 + Inlet/return and nozzle connections from the old pump

AT2 45 D 9584 xP 0500/0700 ATUV 45 L 9860 6P 0700

AT2V 45 D 9603 xP 0500/0700 ATUV 45 L 9860 6P 0700

AT2V 45 D 9615 xP 0500/0700 ATUV 45 L 9860 6P 0700 + nozzle connection (Ref. 3723838)

• + Inlet and return connections G1/4G1/8 (Ref. 3729745) 82 001 30

AT2V 45 D 9633 xP 0500/0700 ATUV 45 L 9860 6P 0700

AT2V 45 D 9638 xP 0500/0700 ATUV 45 L 9860 6P 0700

AT2 55 B 9406 xP 0500/0700 ATUV 45 R 9861 6P 0700 + Intermediate flange ø54 (Ref. 3719003) 26 005 09

AT2 55 B 9515 xP 0500/0700 ATUV 45 R 9861 6P 0700

AT2 55 C 9504 xP 0500/0700 ATUV 45 L 9860 6P 0700

AT2 55 C 9549 xP 0500/0700 ATUV 45 L 9860 6P 0700

AT2 55 C 9572 xP 0500 ATUV 45 L 9860 6P 0700

AT2 55 CK 9571 xP 0500 ATUV 45 L 9860 6P 0700 + nozzle connection (Ref. 3753948)

AT2V 55 C 9672 xP 0500/0700 ATUV 45 L 9860 6P 0700

AT2V 55 CK 9605 xP 0500/0700 ATUV 45 L 9860 6P 0700 + nozzle connection (Ref. 3753948)

ATE2V 45 C 9305 xP 0500/0700 ATUV 45 L 9860 6P 0700

ATE2V 45 C 9306 xP 0500/0700 ATUV 45 L 9860 6P 0700

ATE2V 45 C 9315 xP 0500/0700 ATUV 45 L 9860 6P 0700

ATE2V 45 C 9355 xP 0500/0700 ATUV 45 L 9860 6P 0700

ATE2 55 D 9351 xP 0500/0700 ATUV 45 L 9860 6P 0700

ATE2 55 D 9353 xP 0500/0700 ATUV 45 L 9860 6P 0700

ATE2V 55 D 9354 xP 0500/0700 ATUV 45 L 9860 6P 0700
