- Protection rating: IP55
- PRCDK+ residual current device: 16 A 250 V / AC, I∆N = 30 mA
- Case color: grey / black / red
- Number of poles: 3
- Connection cross-section: 12.5 mm²
- The PRCDK+ detects and protects in the following error cases:
- Interruption of L or N conductor
- Undervoltage or power outage
- Overvoltage
- DC voltage
- Wiring error
- Rated residual current ≥ 30 mA
- Mobile personal protection against electrical accidents on construction and assembly sites for IT networks

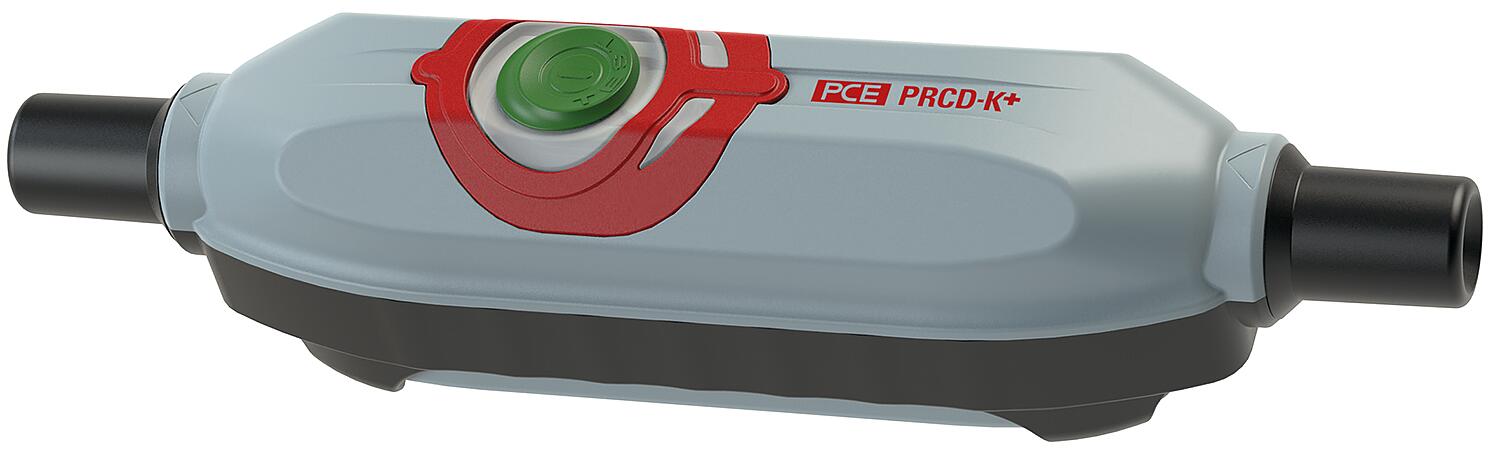

- The PRCDK+ is an all-pole switching portable residual current device with electronic fault evaluation for use between each socket of the power generator and the load, preferably directly behind each socket.
- The PRCDK+ (unlike the PRCDS+) does not have protective conductor monitoring, as it was designed exclusively for use in IT power networks (isolating transformers, power generators, generators).
| Manufacturer part number | 968011355 |
|---|---|
| Unit price | CHF/piece |
| Ref. No. | 968011355 |
| EAN | 9003399399299 |
