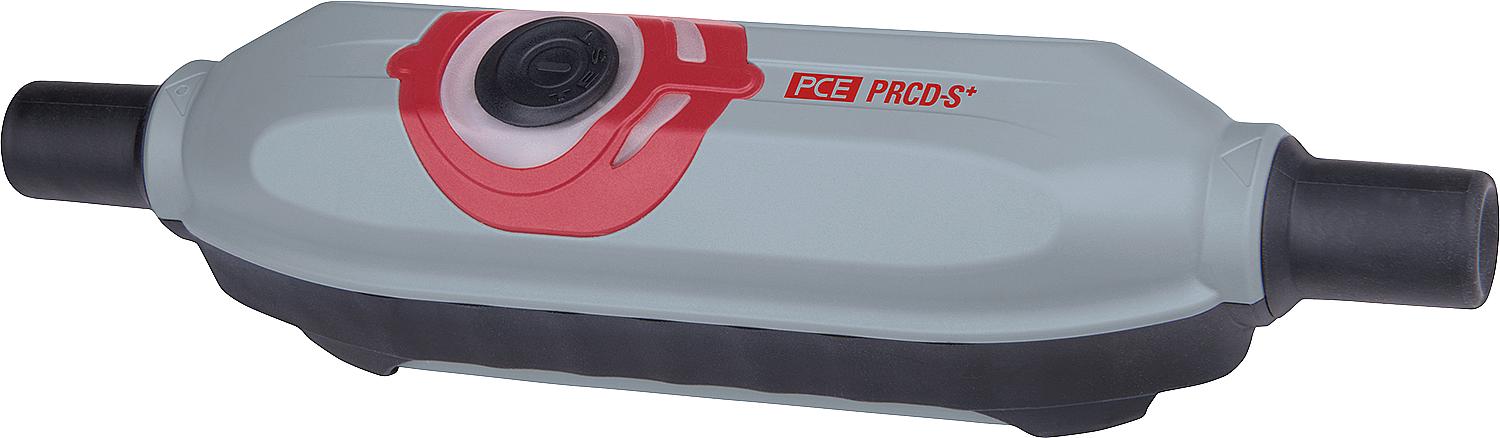

PRCD-S+ residual current device

Name: PRCD-S+ residual current device
Brand: PCE
SKU: 62 009 63
Price: 164.40 CHF
Availability: InStock

Bewertungen

| Eine Rezension schreiben

CHF 164.40

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

PCE

62 009 63

sofort lieferbar

Security policy

Delivery terms

Return policy

For direct connection in the line
PRCDS+ 16 A, 30 mA, IP55 cord adapter
The correct connection conditions are checked fully automatically every time the device is switched on and during operation. The traditional "test button" is no longer needed.
The new device from PCE detects measurement errors (e.g., wearing a glove when switching on), issues a visual warning in such cases and does not switch on.
Visual error message and status indicator (green/red LED indicator)
The protective conductor circuit is switched on in advance and switched off in a delayed manner.
Fault situations, such as "external voltage on PE or an exceedance of the rated fault current", cause a disconnection of L and N.
The protective conductor circuit remains closed and the PE potential continues to be monitored!
Overvoltage of 400 V AC or DC voltage of 220 V DC is detected and the circuit is not switched on (a weak point is triggered).
Undervoltage is detected and the circuit breaker switches off.
Detection of system-side line breaks and wiring errors
