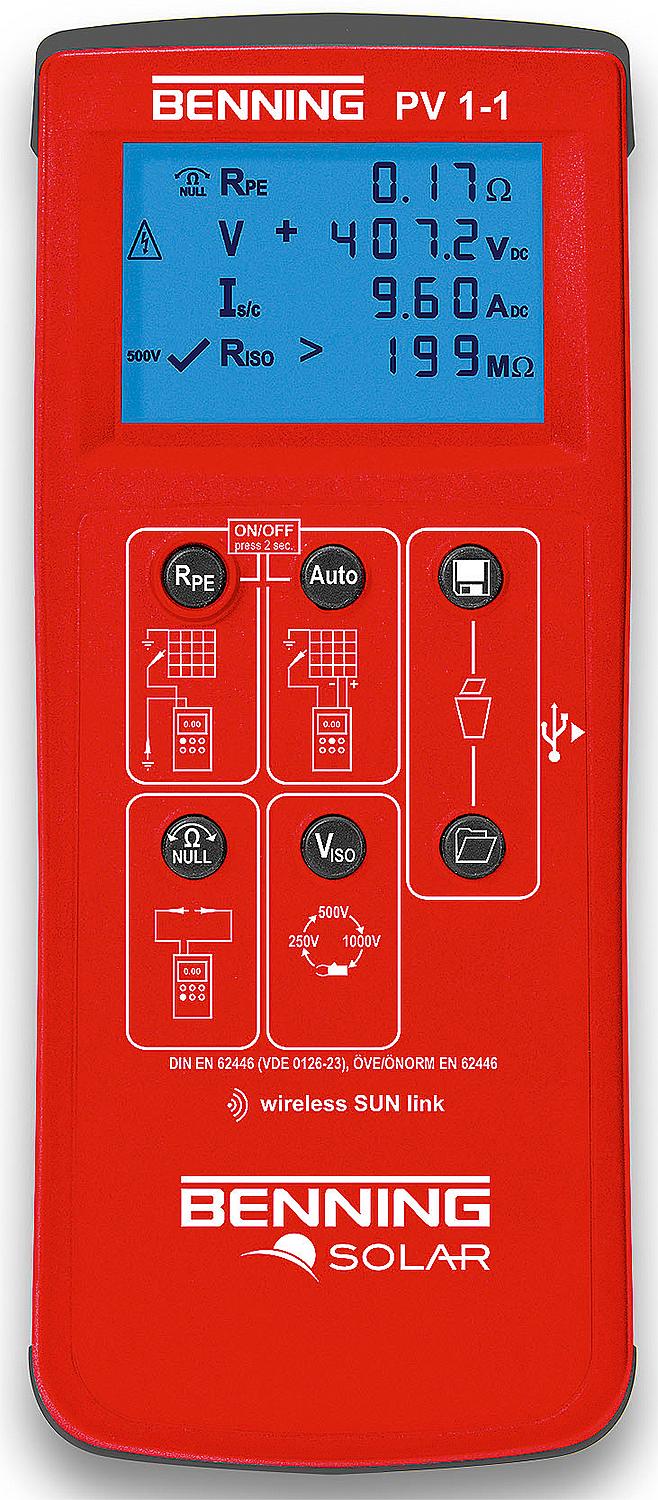

Photovoltaic measuring device Benning PV1-1 Ref. No. 050421

Name: Photovoltaic measuring device Benning PV1-1 Ref. No. 050421
Brand: BENNING
SKU: 70 129 69
Price: 1501.65 CHF
Availability: InStock

Bewertungen

| Eine Rezension schreiben

CHF 1,501.65

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

BENNING

70 129 69

sofort lieferbar

Security policy

Delivery terms

Return policy

View full details

Beschreibung Spezifikation Bewertungen

For the installation and periodic testing of grid-connected PV systems in accordance with VDE 012623 (DIN EN 62446)
Protective conductor resistance measurement (test current 200 mA DC)
Open circuit voltage measurement up to 1000 V DC
Short-circuit current measurement on the PV array up to 15 A DC
Insulation resistance measurement (test voltage 250 V, 5000 V, 1000 V DC)
Automatic display of voltage polarity with acoustic/visual warning in case of reverse polarity
Authenticity stamp with date and time of measurement
Connect to the BENNING SUN 2 (Art. 70 128 24) via radio
200 measured value storage for string comparison
USB interface and download software
Test report creation in MS Excel®
Secure measurement connection even when the photovoltaic system is supplying energy
Automatic shutdown
Scope of delivery:
Batteries: 6 x AA (Order No.: 62 079 47)
Measuring/MC4/Sunclix test leads
Crocodile clips
CD-ROM
data cable
Calibration protocol
Protective case
