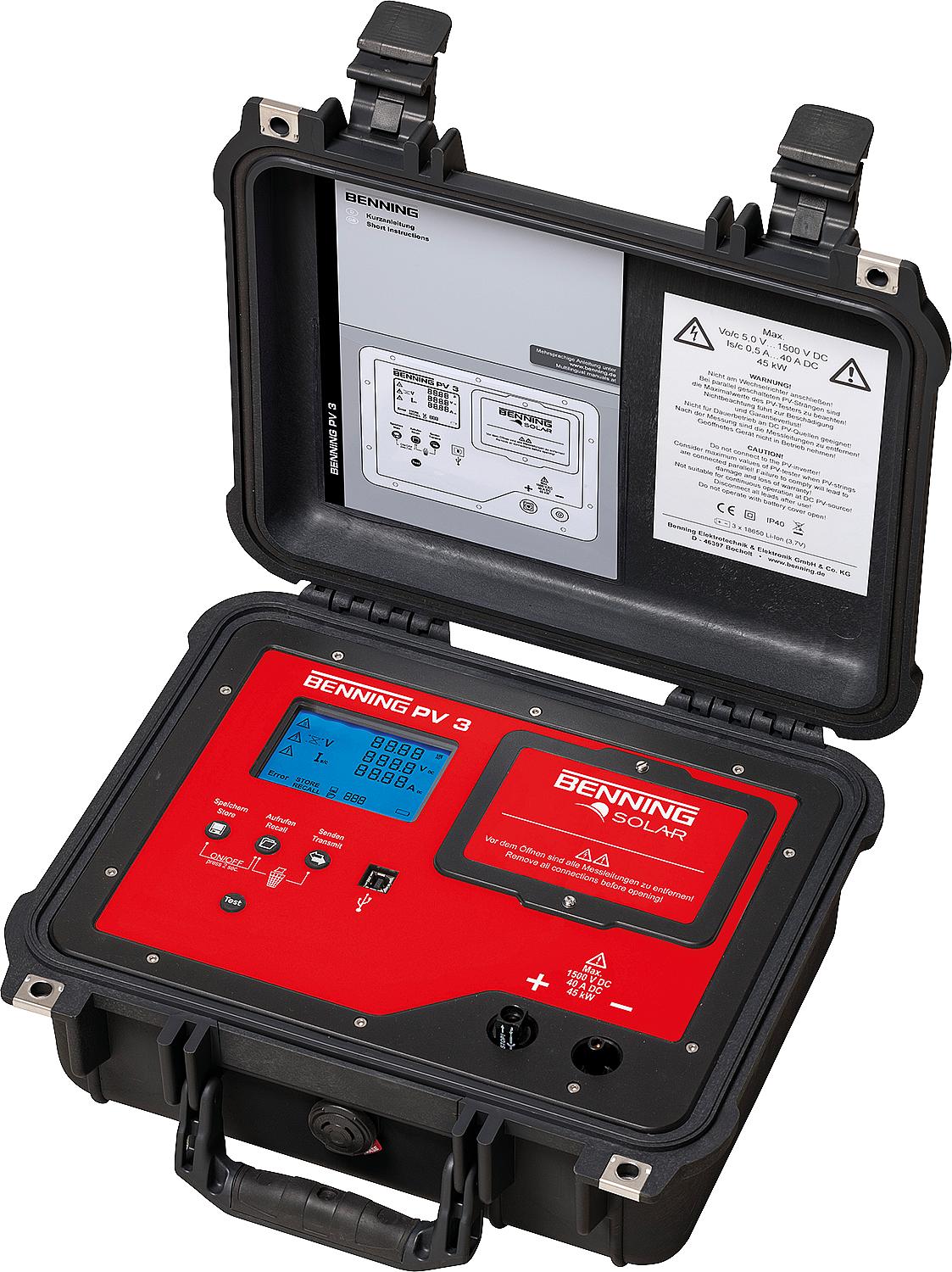

Photovoltaic measuring device Benning PV3 Ref. No.: 050428

Name: Photovoltaic measuring device Benning PV3 Ref. No.: 050428
Brand: BENNING
SKU: 70 006 46
Price: 4080.40 CHF
Availability: InStock

Bewertungen

| Eine Rezension schreiben

CHF 4,080.40

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

BENNING

70 006 46

sofort lieferbar

Security policy

Delivery terms

Return policy

View full details

Beschreibung Spezifikation Bewertungen

Application:
As part of the commissioning and periodic testing of grid-connected photovoltaic systems according to VDE 012623 (DIN EN 62446), polarity tests, open-circuit voltages and short-circuit current measurements of parallel-connected PV strings can be carried out, stored and documented safely and efficiently up to 1500 V/40 A.

Measurement functions in general:
Polarity check of the PV generator/PV wiring
Open circuit voltage measurement for modern 1500 V DC systems
Short-circuit current measurement on PV strings up to 40 A DC
Solar irradiance (W/m²) and PV module/ambient temperature (°C) via Benning SUN 2 (Order No.: 70 128 24)

Features:
Automatic test sequence (+/, Vo/c, ls/c, W/m², °C) with reverse polarity protection
High-performance short-circuit current measurement, up to 4 times greater reserve than typical PV testers with 10 A limit.
Reduced testing times and dismantling effort, as PV strings no longer need to be individually separated and tested one after the other.
Reduces the risk of failure due to overload during testing of PV strings with unknown power output.
Real-time clock with date and time stamp per measurement
