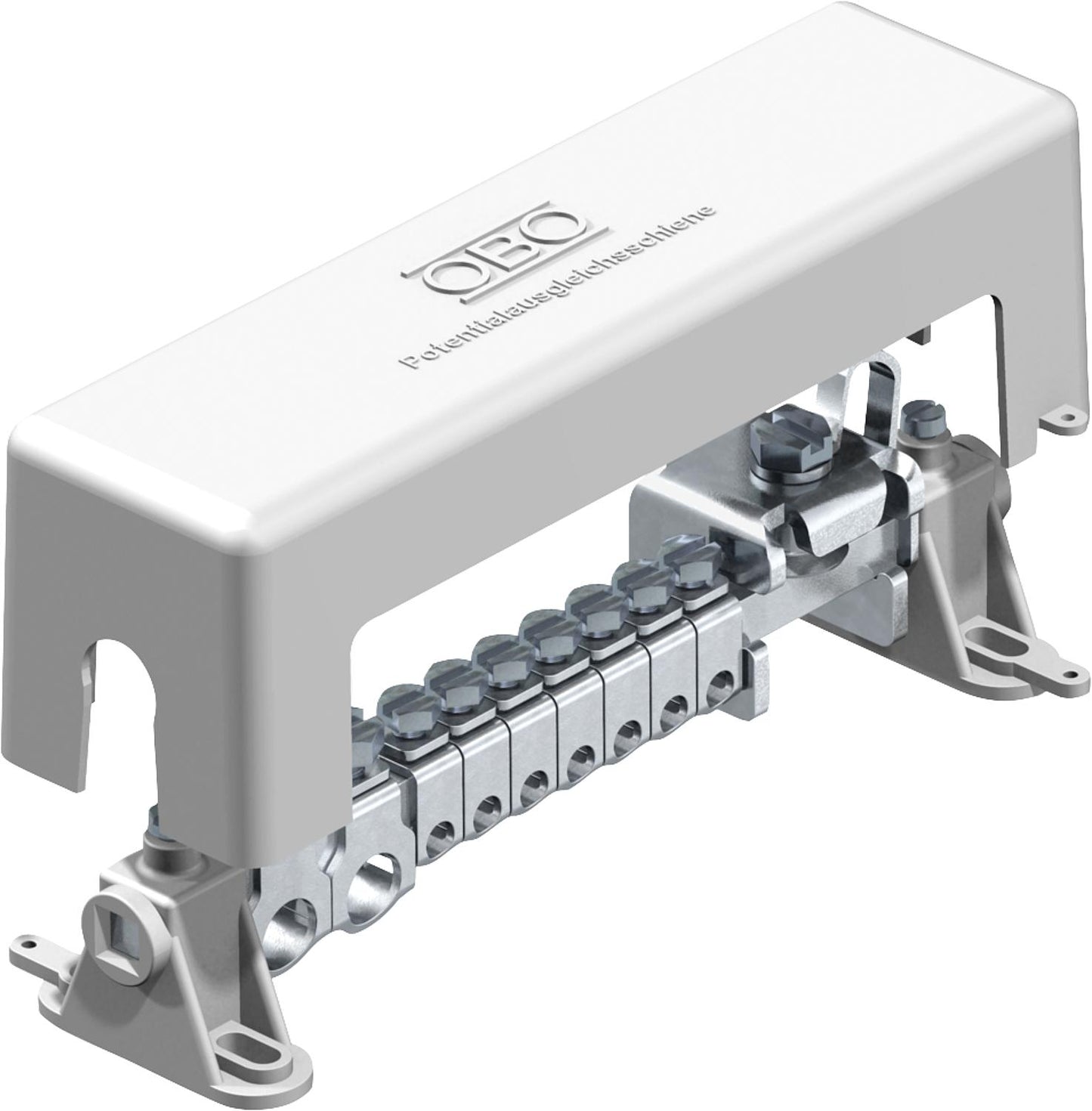

Equipotential bonding bar for indoor use, type 1801 VDE, grey

Name: Equipotential bonding bar for indoor use, type 1801 VDE, grey
Brand: OBO
SKU: 62 072 68
Price: 32.45 CHF
Availability: InStock

Bewertungen

| Eine Rezension schreiben

CHF 32.45

% Sold out

Taxes included.

Quantity

Lieferung Schweiz

Voraussichtliche Lieferung nach Versandart:

Economy (kostengünstig) wird berechnet
Express (Express-Lieferung) wird berechnet
Priority (schneller Standard) wird berechnet

Manufacturer:

Order No.:

Availability:

OBO

62 072 68

sofort lieferbar

Security policy

Delivery terms

Return policy

View full details

Beschreibung Spezifikation Bewertungen

7 x single or multi-strand cables up to 25 mm² or fine-strand cables up to 16 mm²
Lightning current carrying capacity 100 kA (10/350)
For equipotential bonding according to DIN VDE 0100410 / 540 and lightning protection equipotential bonding according to DIN VDE 0185305
Color: grey

Connection options:
2 x single or multi-strand cables 2595 mm² or fine-stranded cables up to 70 mm² (max. ø 13.5 mm)
1 x flat conductor 30 x 3.5 mm
According to VDE 0618, Part 1
With 10 x 10 mm brass clamping rail, nickel-plated
With contact-safe terminal blocks made of galvanised steel
Cover and rail brackets made of polystyrene, grey
Pull handle with screw locking mechanism to prevent self-loosening (required, for example, in industrial and explosion-proof areas)
Pre-assembled and ready to connect
