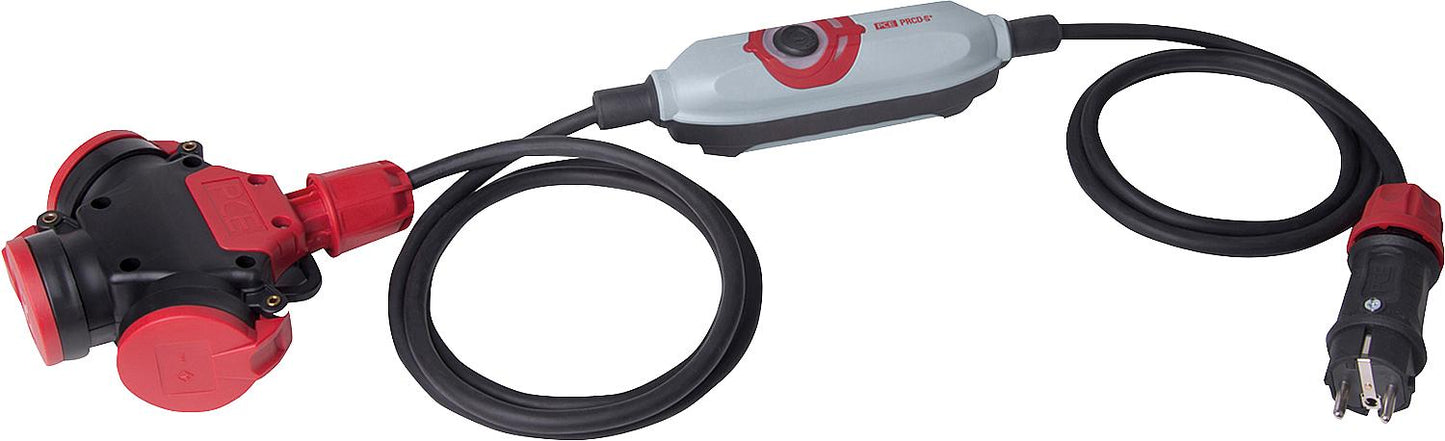

PRCD-S+ safety cable with 3WK

Name: PRCD-S+ safety cable with 3WK
Brand: PCE
SKU: 62 009 65
Price: 189.20 CHF
Availability: InStock

Bewertungen

| Eine Rezension schreiben

CHF 189.20

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

PCE

62 009 65

sofort lieferbar

Security policy

Delivery terms

Return policy

3 m H07RNF 3G1.5
With residual current device 16 A, 250 V~, 30 mA
With mounted solid rubber plug and 3-way solid rubber coupling 16 A, 250 V~
The correct connection conditions are checked fully automatically every time the device is switched on and during operation. The traditional "test button" is no longer needed.
The new device from PCE detects measurement errors (e.g., wearing a glove when switching on), issues a visual warning in such cases and does not switch on.
Visual error message and status indicator (green/red LED indicator)
The protective conductor circuit is switched on in advance and switched off in a delayed manner.
Fault situations, such as "external voltage on PE or an exceedance of the rated fault current", cause a disconnection of L and N.
The protective conductor circuit remains closed and the PE potential continues to be monitored!
Overvoltage of 400 V AC or DC voltage of 220 V DC is detected and not switched through (a weak point is triggered).
Undervoltage is detected, and it shuts down.
Detection of system-side line breaks and wiring errors
