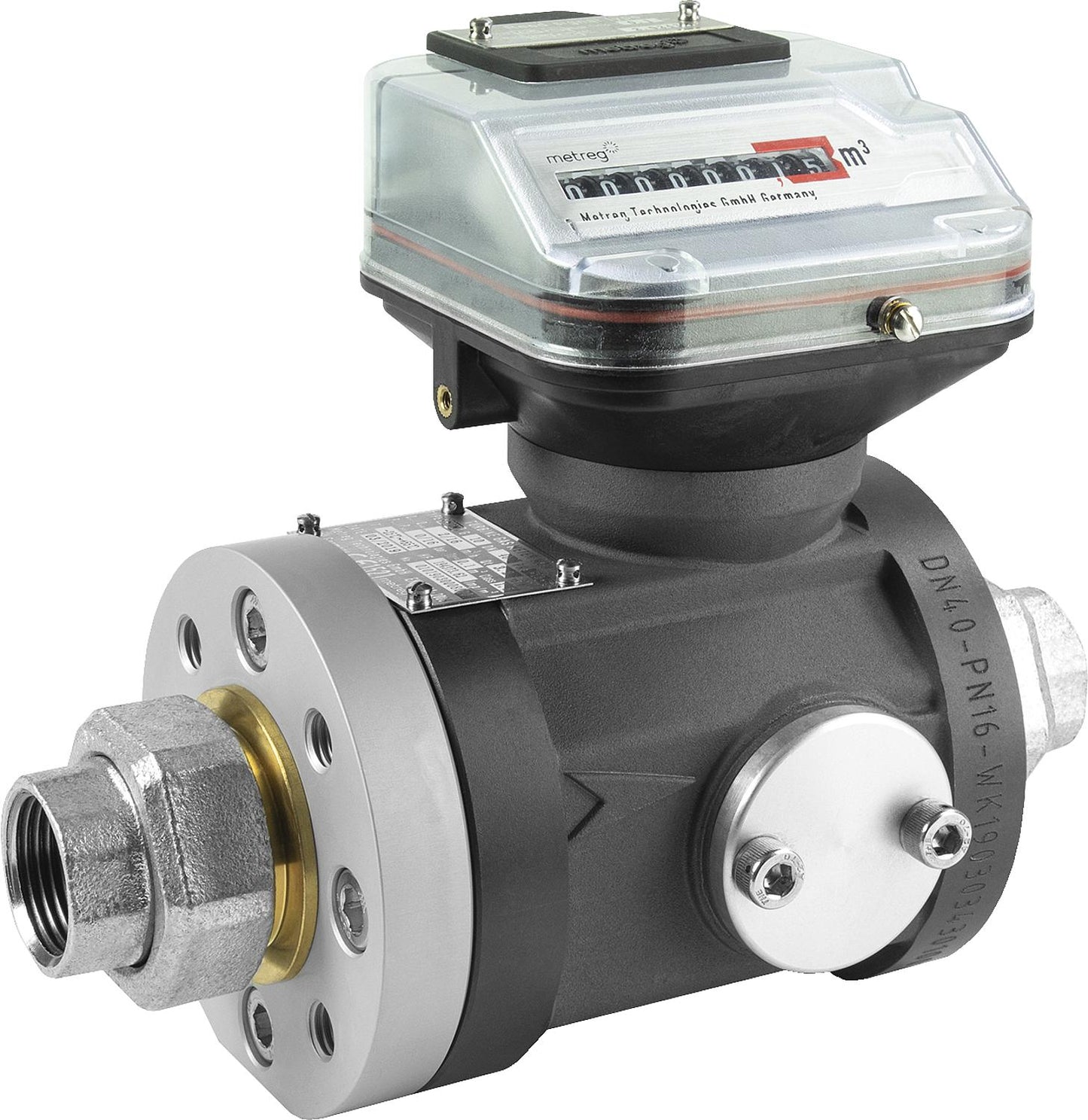

Quantometer MQM G10 DN25(1"), Vmax16m³/h, with pulse generator E1, PN4

• Internal accounting of consumption in industrial plants, laboratories and test benches
• Control and adjustment of burners in gas-consuming appliances
• Maintenance-free thanks to permanently lubricated bearings
• Integrated NF pulse generator
• Rotating roller counter
• Testing guidelines: PED 2018/68/EU; ATEX 2014/34/EU

Technical data:

• Natural gas, liquefied petroleum gas, air and inert gases (CO²)
• Biogas possible with special accessories
• Ambient temperature: -25°C to +60°C
• Medium temperature: 20°C to +60°C
• Installation position: horizontal/vertical

• Inlet pressure pe: max. 4 bar
